Intelligent Key System/Engine Start Function Connectors

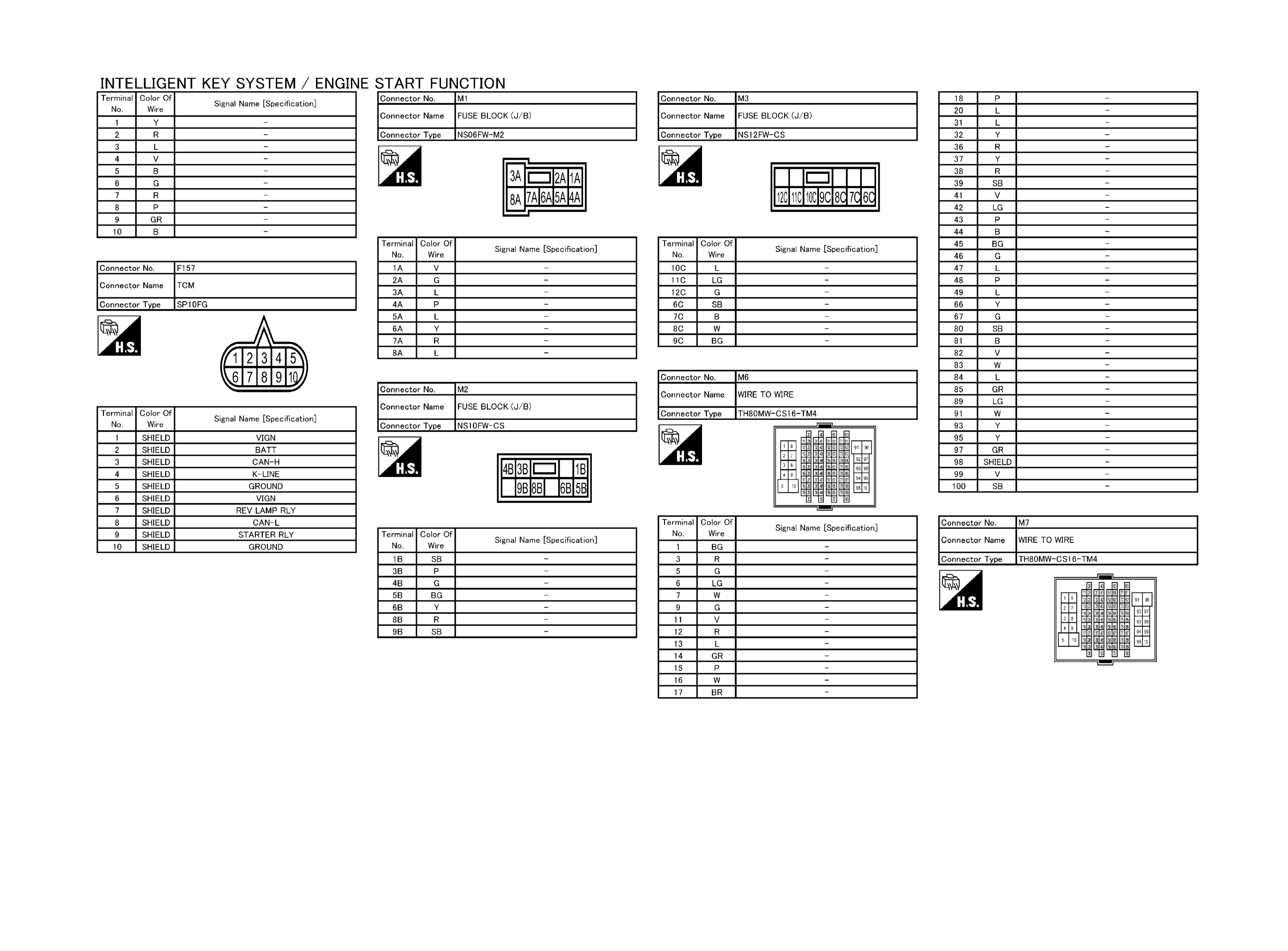

Fig 1: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

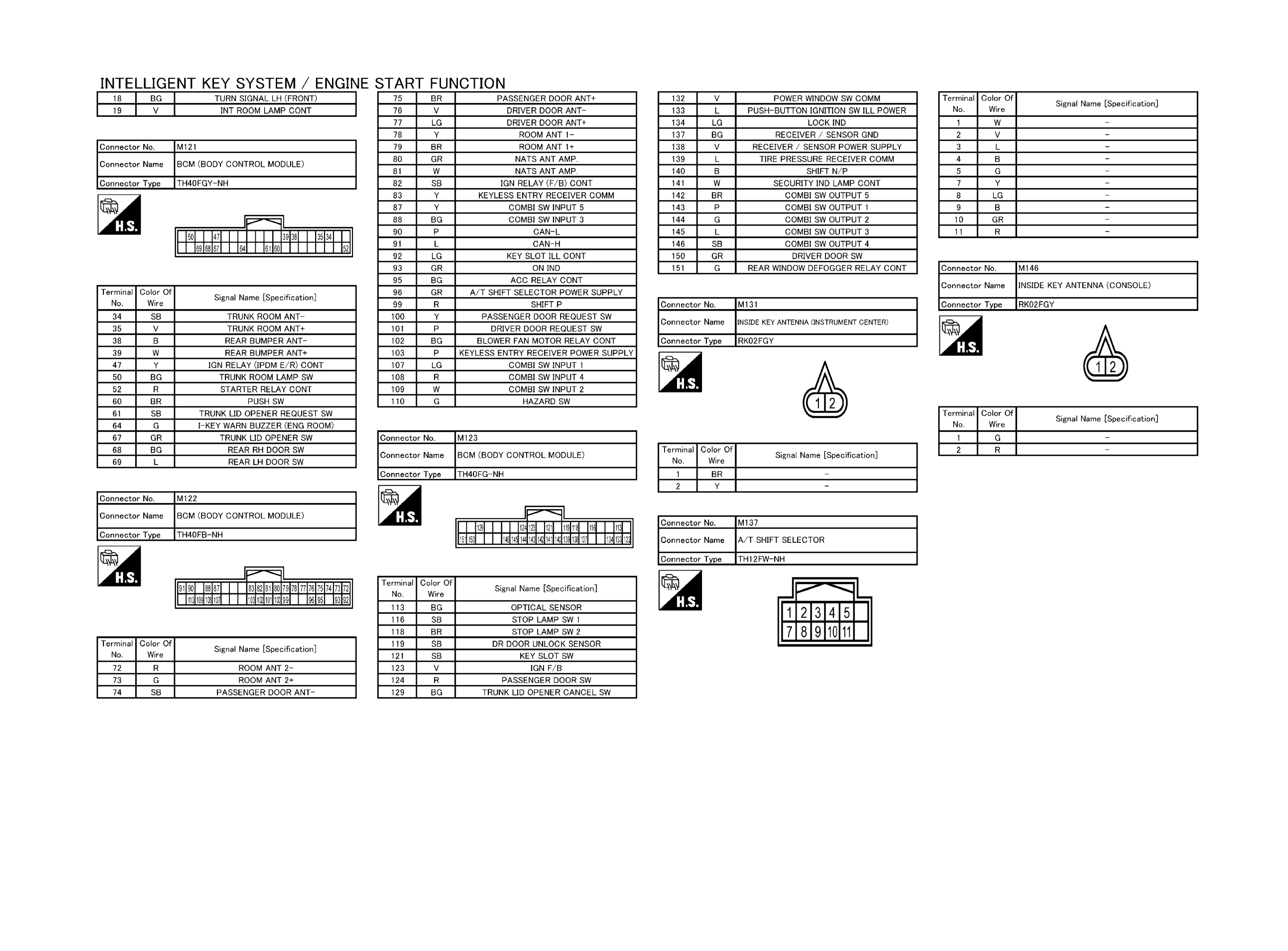

Fig 2: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

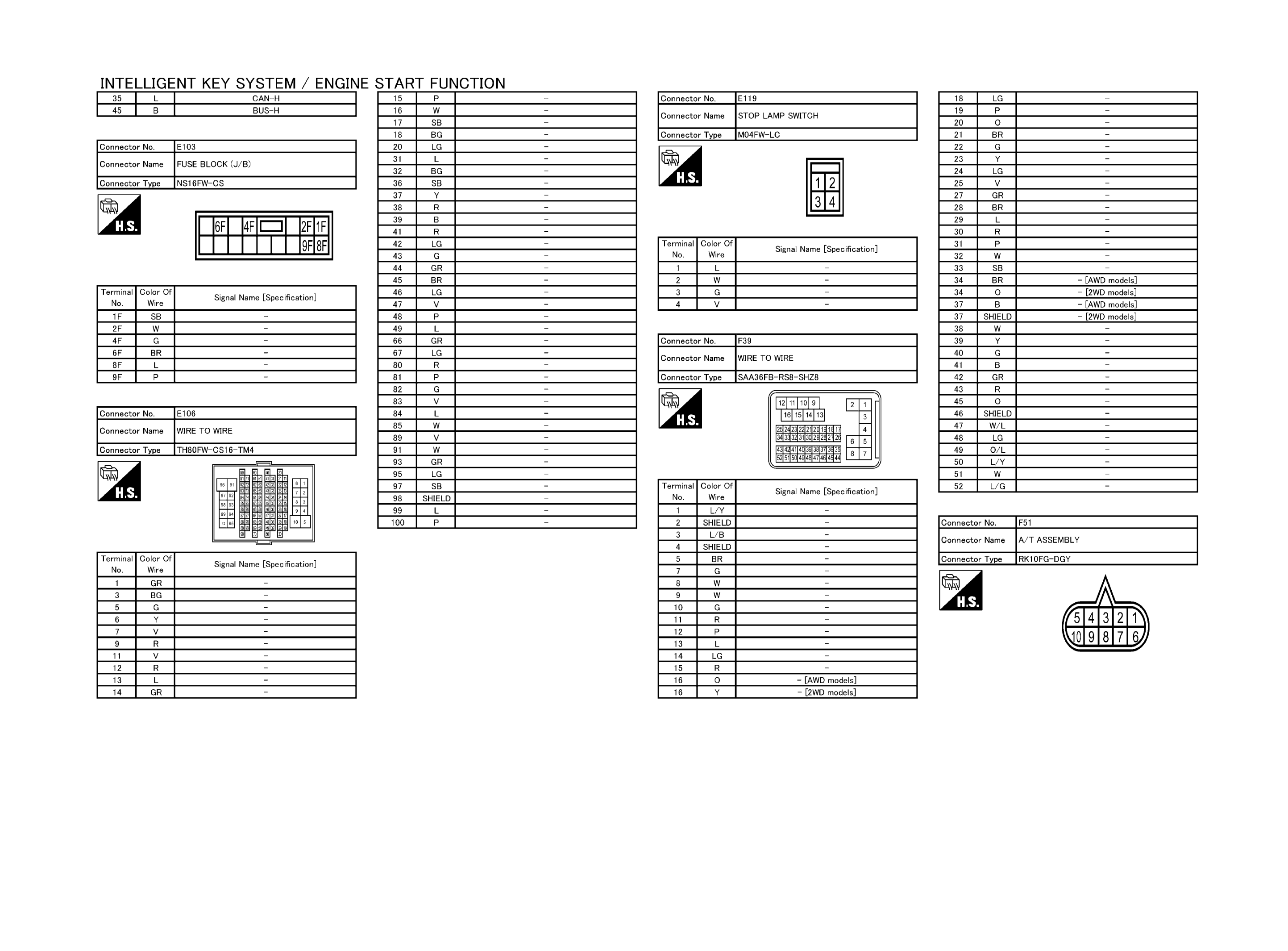

Fig 3: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

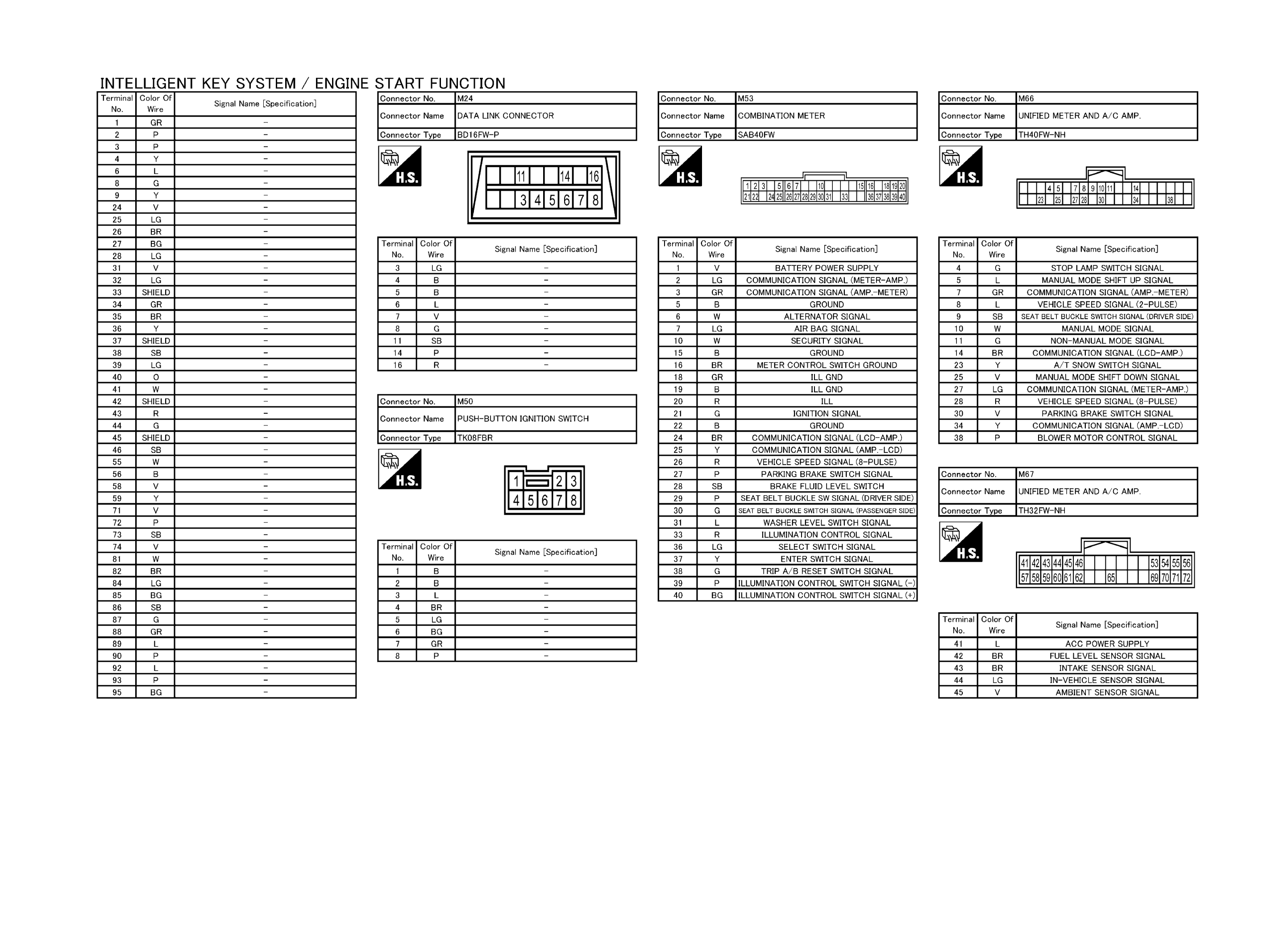

Fig 4: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

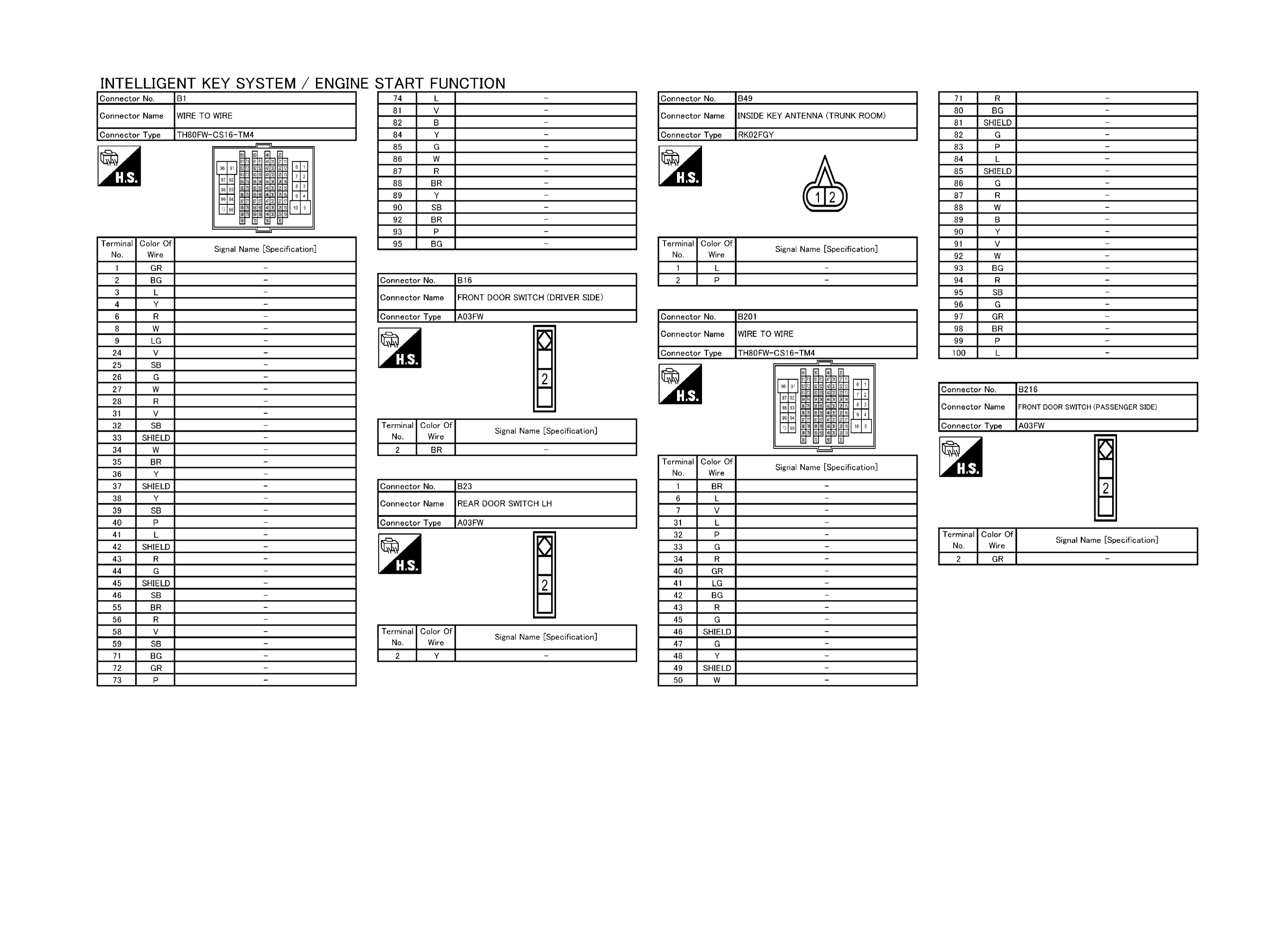

Fig 5: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

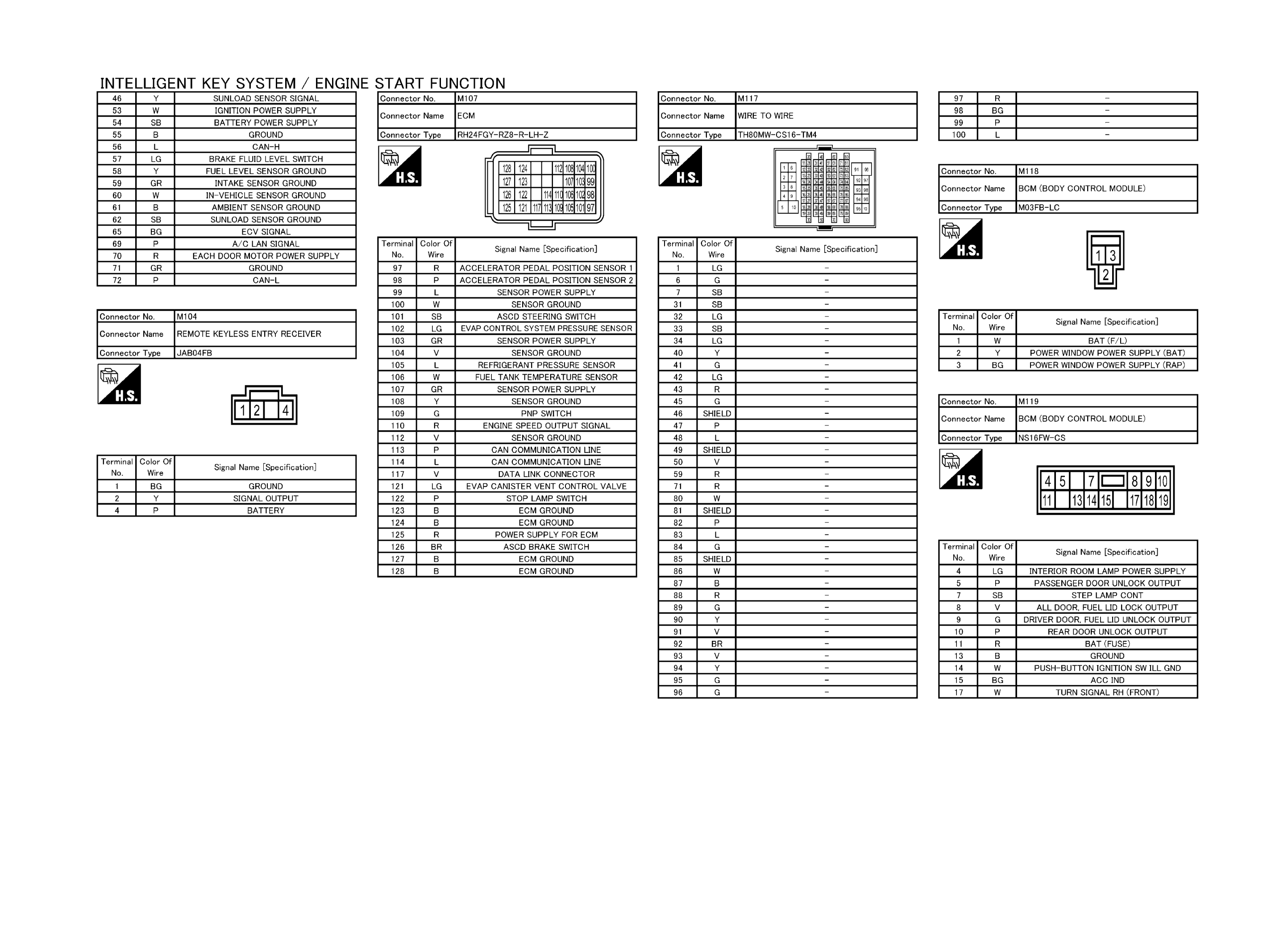

Fig 6: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
