Component Parts Location

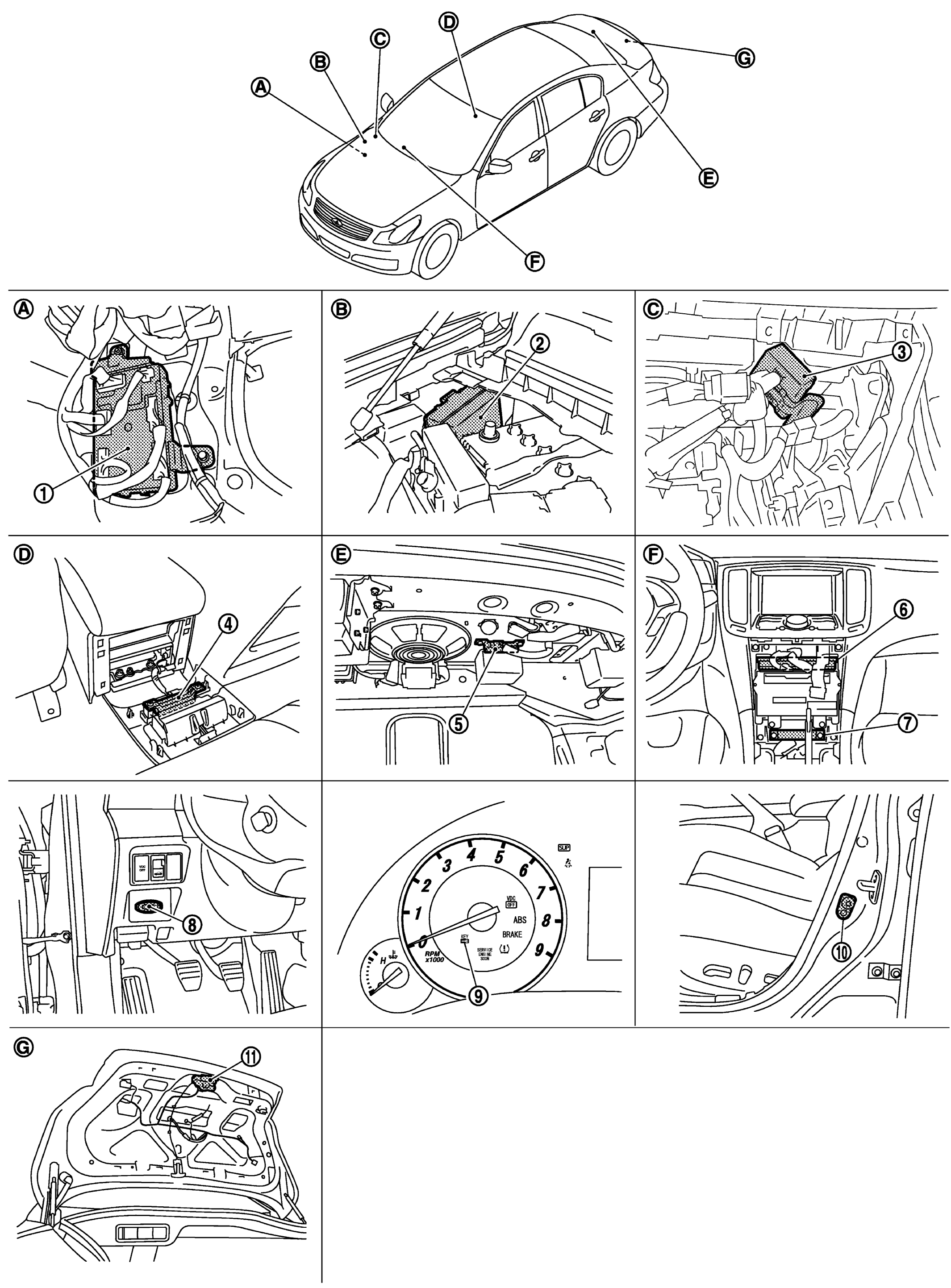

Fig 1: Security Control System Component Parts Location (1 Of 2)
GNSJMKIA3569ZZ-569Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM 2. IPDM E/R 3. Remote keyless entry receiver
4. Inside key antenna (console) 5. Inside key antenna (trunk room) 6. Unified meter and A/C amp.
7. Inside key antenna (instrument center) 8. Key slot 9. Combination meter (Key warning lamp)
10. Driver side door switch 11. Trunk lid lock assembly (trunk room lamp switch)
A. Dash side lower (Passenger side). B. Engine room dash panel (RH). C. View with instrument assist lower panel removed.
D. View with console rear finisher removed. E. View with trunk rear finisher (upper) removed. F. Behind cluster lid C
G. View with trunk lid finisher removed.

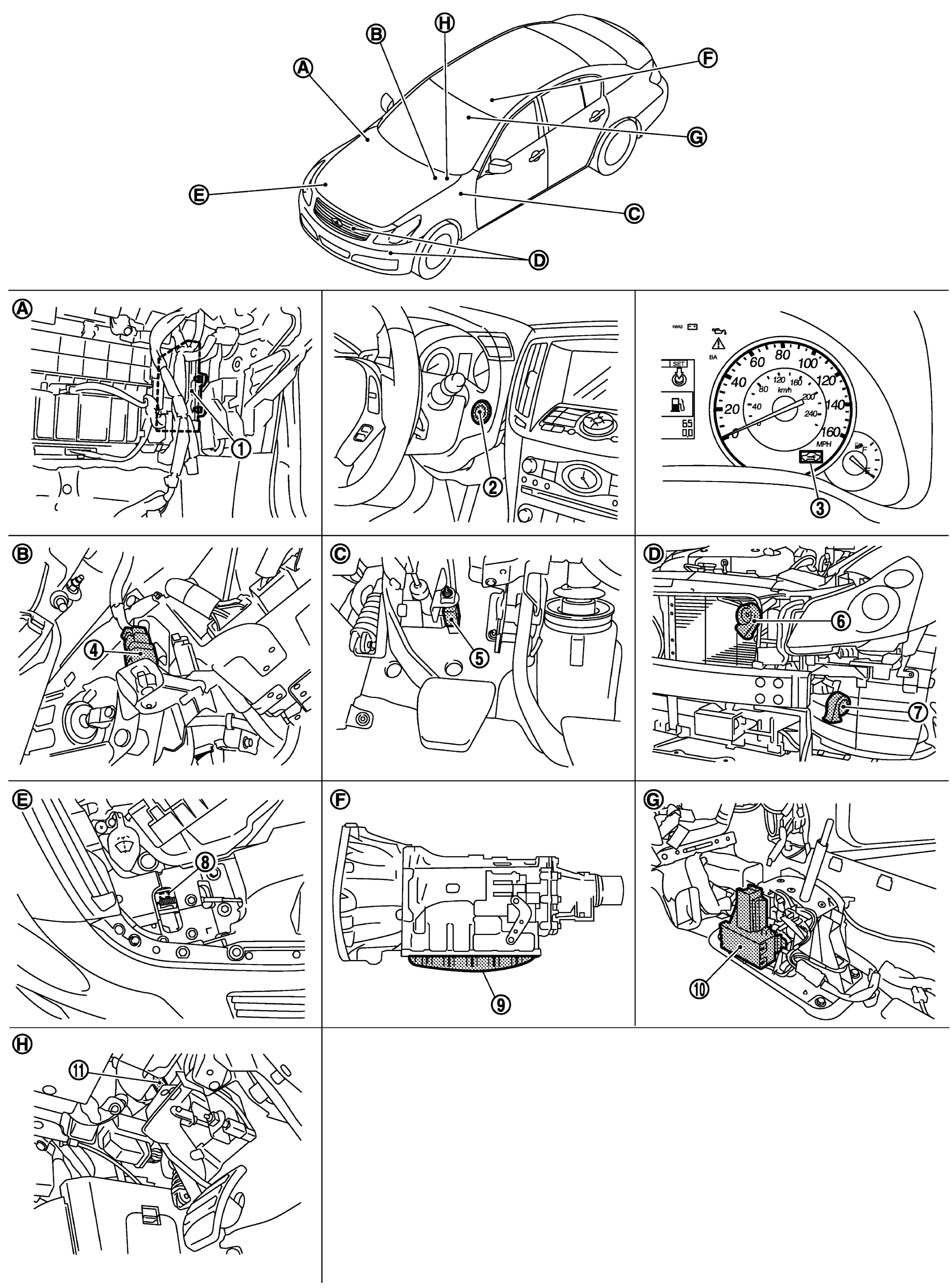

Fig 2: Security Control System Component Parts Location (2 Of 2)
GNSJMKIA3570ZZ-570Courtesy of NISSAN NORTH AMERICA, INC.
1. ECM 2. Push-button ignition switch 3. Combination meter (Security indicator)
4. Stop lamp switch 5. Clutch interlock switch * 6. Horn (high)
7. Horn (low) 8. Hood switch 9. TCM
10. A/T shift selector (detention switch) 11.
  • ASCD clutch switch (ASCD models) *
  • ICC clutch switch (ICC models) *

A. View with instrument assist lower panel removed. B. View with instrument driver lower cover removed. C. View with instrument driver lower cover removed.
D. View with front bumper removed. E. View with hood switch incorporated into hood lock (RH). F. Inside of A/T (built into A/T).
G. View with center console assembly removed. H. View with instrument driver lower cover removed.

* : Not applicable
