Exploded View With Torque Specifications: Disassembly

Type: A003TJ1991B

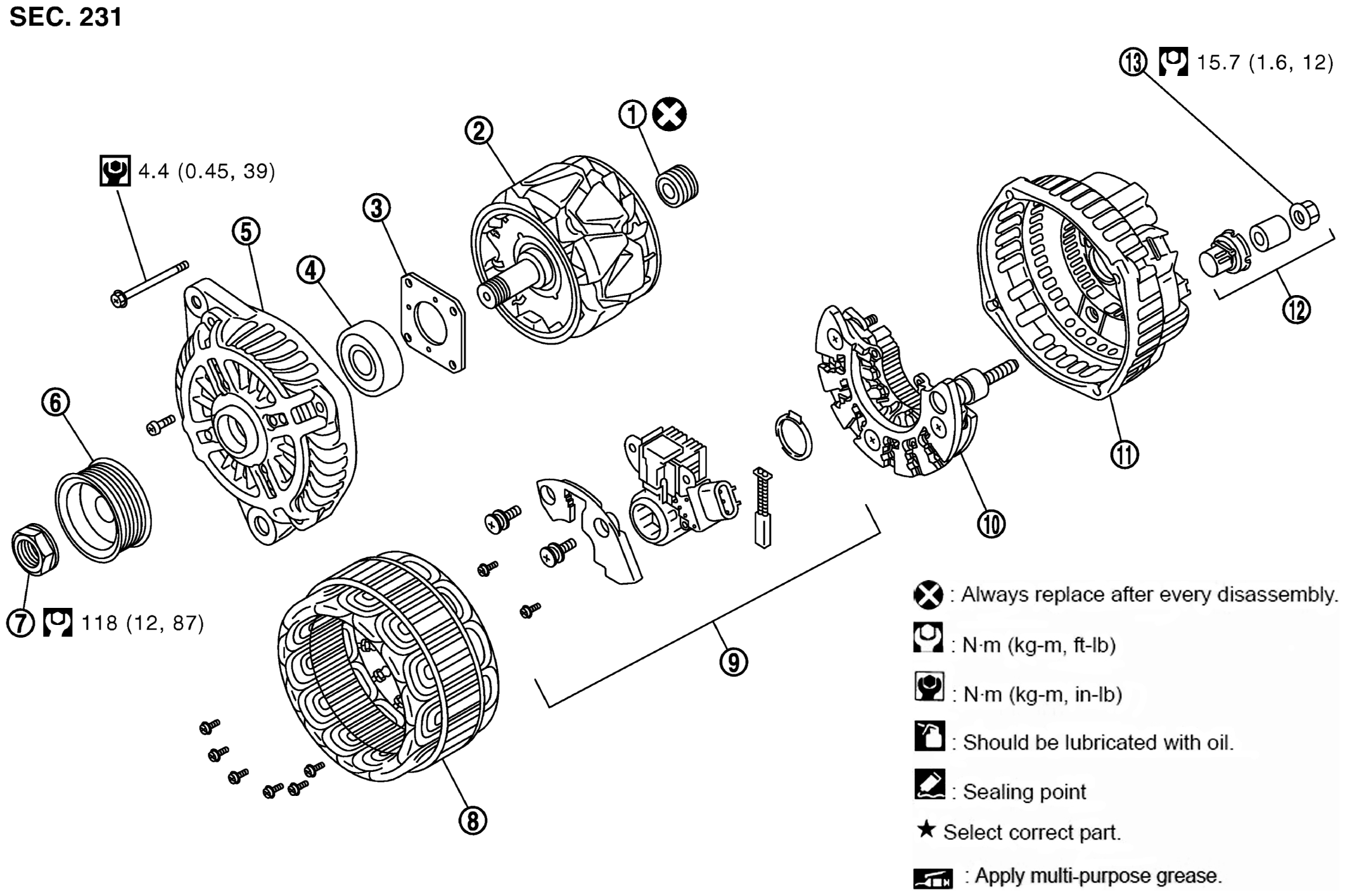

Fig 1: Exploded View Of Alternator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear bearing	2.	Rotor assembly	3.	Retainer
4.	Front bearing	5.	Front bracket assembly	6.	Pulley
7.	Pulley nut	8.	Stator assembly	9.	IC voltage regulator assembly
10.	Diode assembly	11.	Rear bracket assembly	12.	Terminal set
13.	"B" terminal nut
	: Always replace after every disassembly
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
