Exploded View With Torque Specifications

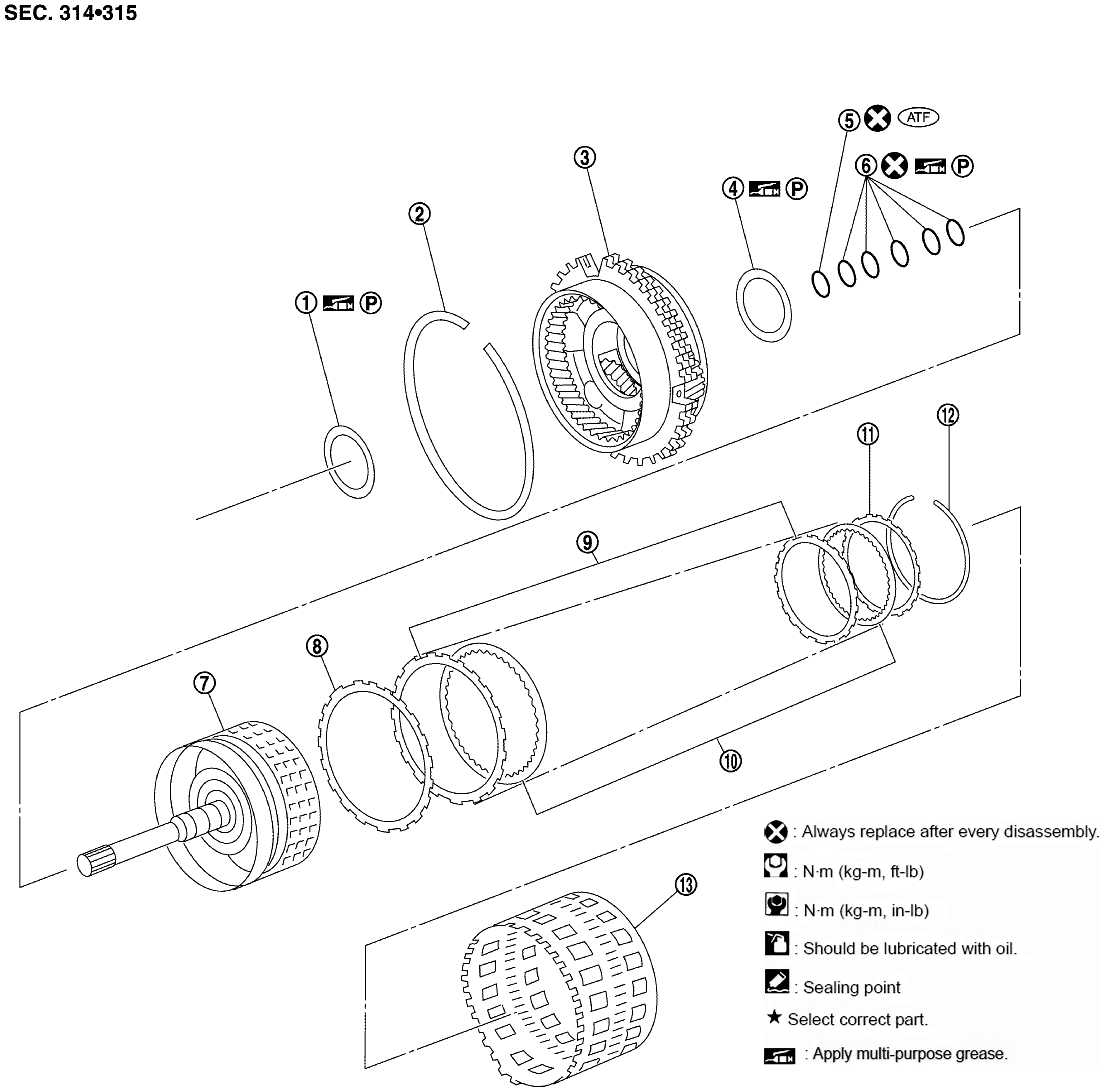

Fig 1: Exploded View Of Front Carrier, Input Clutch, Rear Internal Gear

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Needle bearing	2.	Snap ring	3.	Front carrier assembly
4.	Needle bearing	5.	O-ring	6.	Seal ring
7.	Input clutch drum	8.	Input clutch dish plate	9.	Input clutch driven plate
10.	Input clutch drive plate	11.	Input clutch retaining plate	12.	Snap ring
13.	Rear internal gear
Refer to COMPONENTS for symbols in the figure.
