Brake Fluid Level Switch

Detects the brake fluid level in reservoir tank and transmits converted electric signal from combination meter to ABS actuator and electric unit (control unit) via CAN communication, when brake fluid level is the specified level or less.

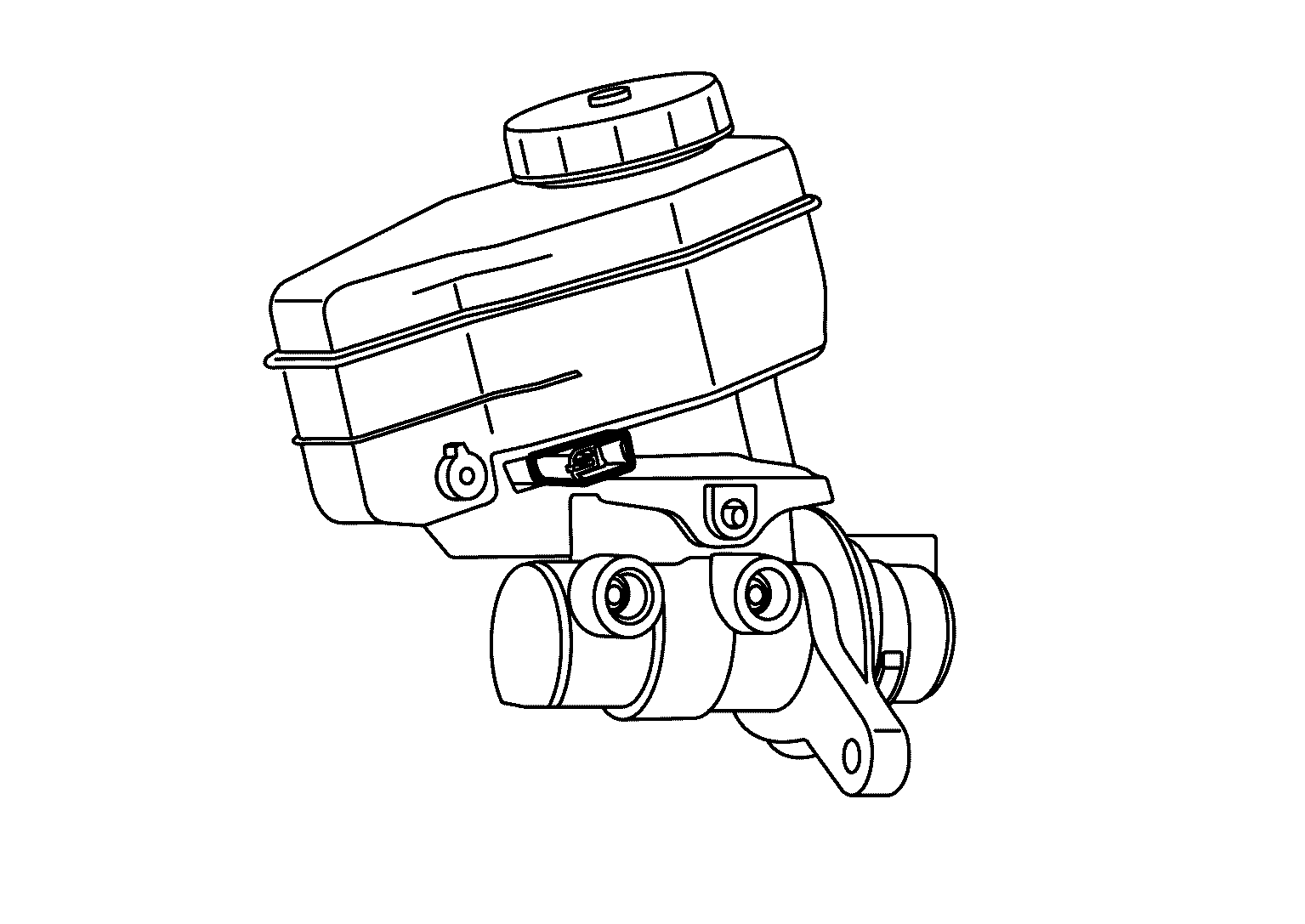

Fig 1: Identifying Brake Fluid Level Switch
G09159274Courtesy of NISSAN NORTH AMERICA, INC.
