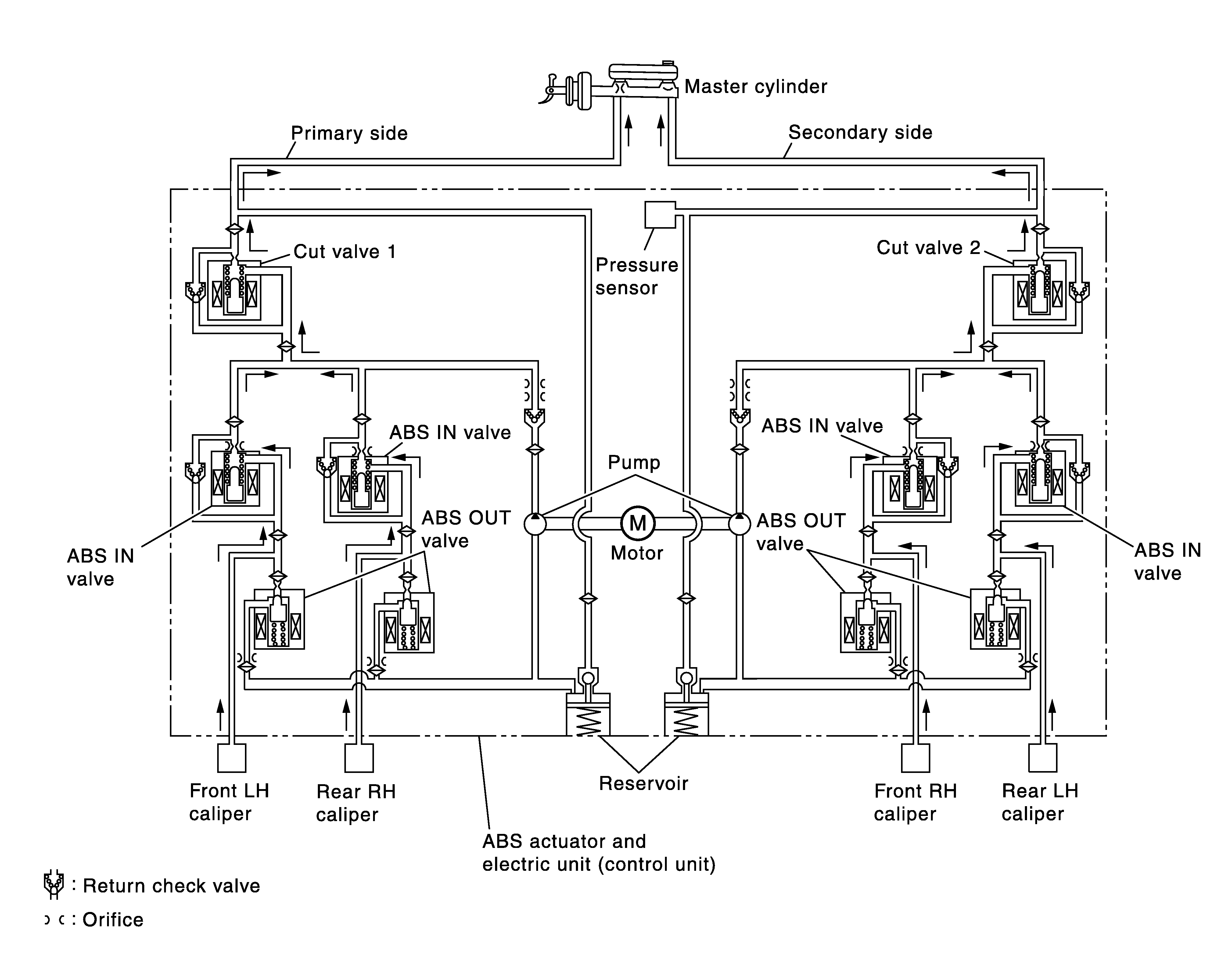

System Description: Released
| Name | Not activated | When pressure decreases |
|---|---|---|
| Cut valve 1 | Power supply is not supplied (open) | Power supply is not supplied (open) |
| Cut valve 2 | Power supply is not supplied (open) | Power supply is not supplied (open) |
| ABS IN valve | Power supply is not supplied (open) | Power supply is not supplied (open) |
| ABS OUT valve | Power supply is not supplied (close) | Power supply is supplied (open) |
| Each caliper (fluid pressure) | - | Pressure decreases |
When front RH wheel caliper pressure decreases
- Being returned to master cylinder through ABS IN valve, fluid pressure of brake caliper is decreased.
When front LH wheel caliper pressure decreases
- Being returned to master cylinder through ABS IN valve, fluid pressure of brake caliper is decreased.
When rear RH wheel caliper pressure decreases
- Being returned to master cylinder through ABS IN valve, fluid pressure of brake caliper is decreased.
When rear LH wheel caliper pressure decreases
- Being returned to master cylinder through ABS IN valve, fluid pressure of brake caliper is decreased.
