BCM Connector End Views

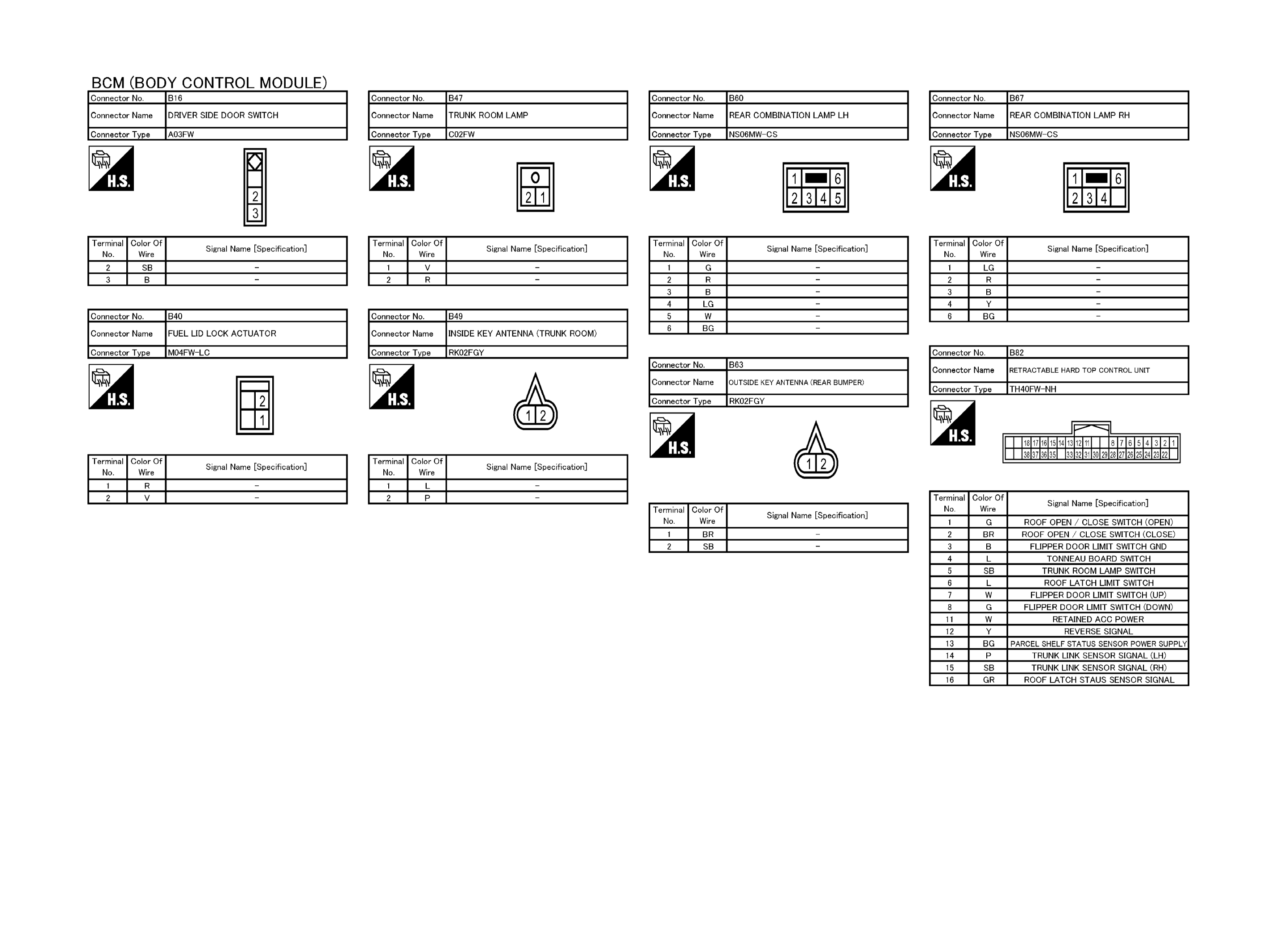

Fig 1: BCM Connector End Views (1 Of 10)

GNSJRMWF1743GB-743

Courtesy of NISSAN NORTH AMERICA, INC.

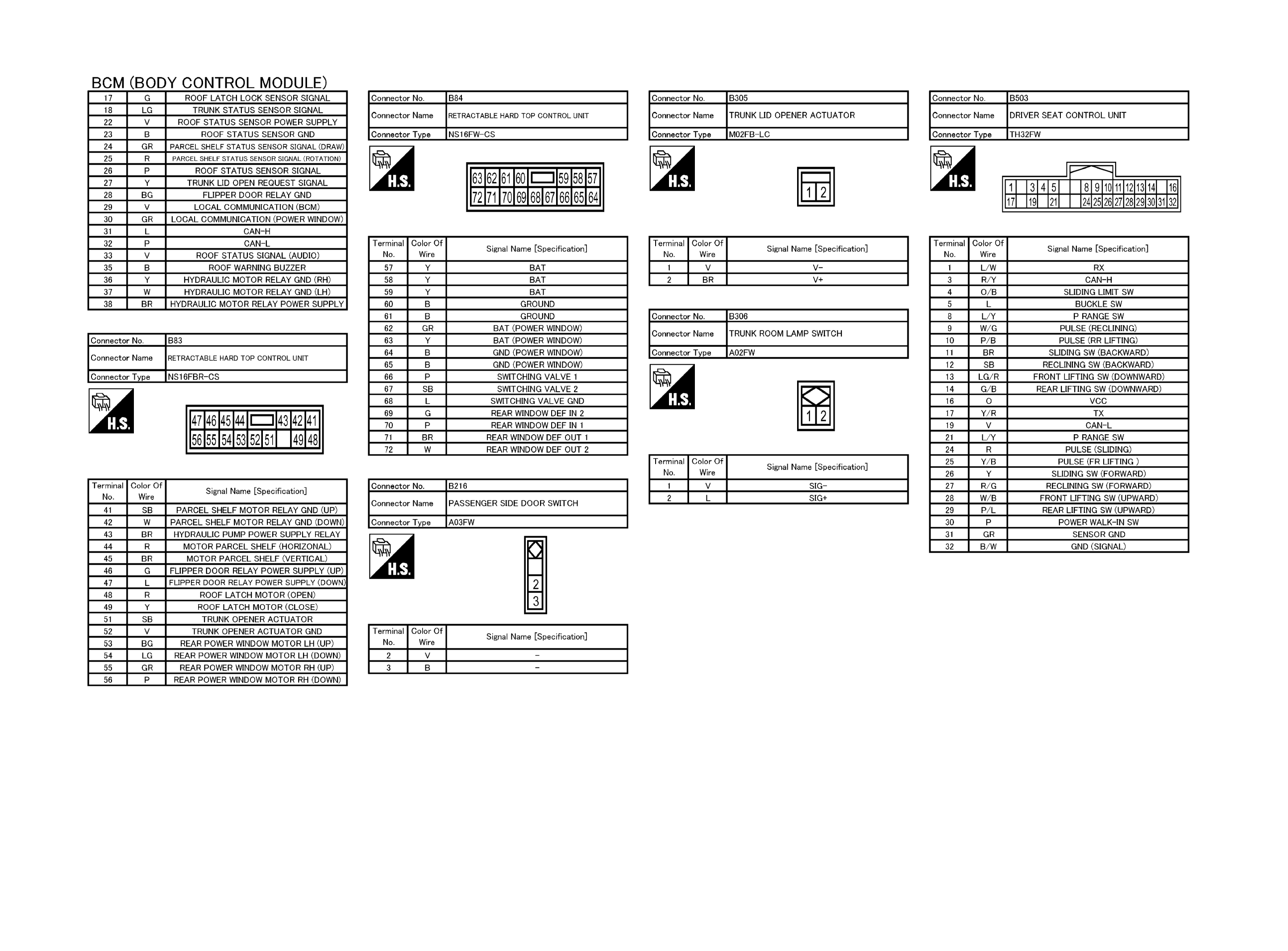

Fig 2: BCM Connector End Views (2 Of 10)

GNSJRMWF1744GB-744

Courtesy of NISSAN NORTH AMERICA, INC.

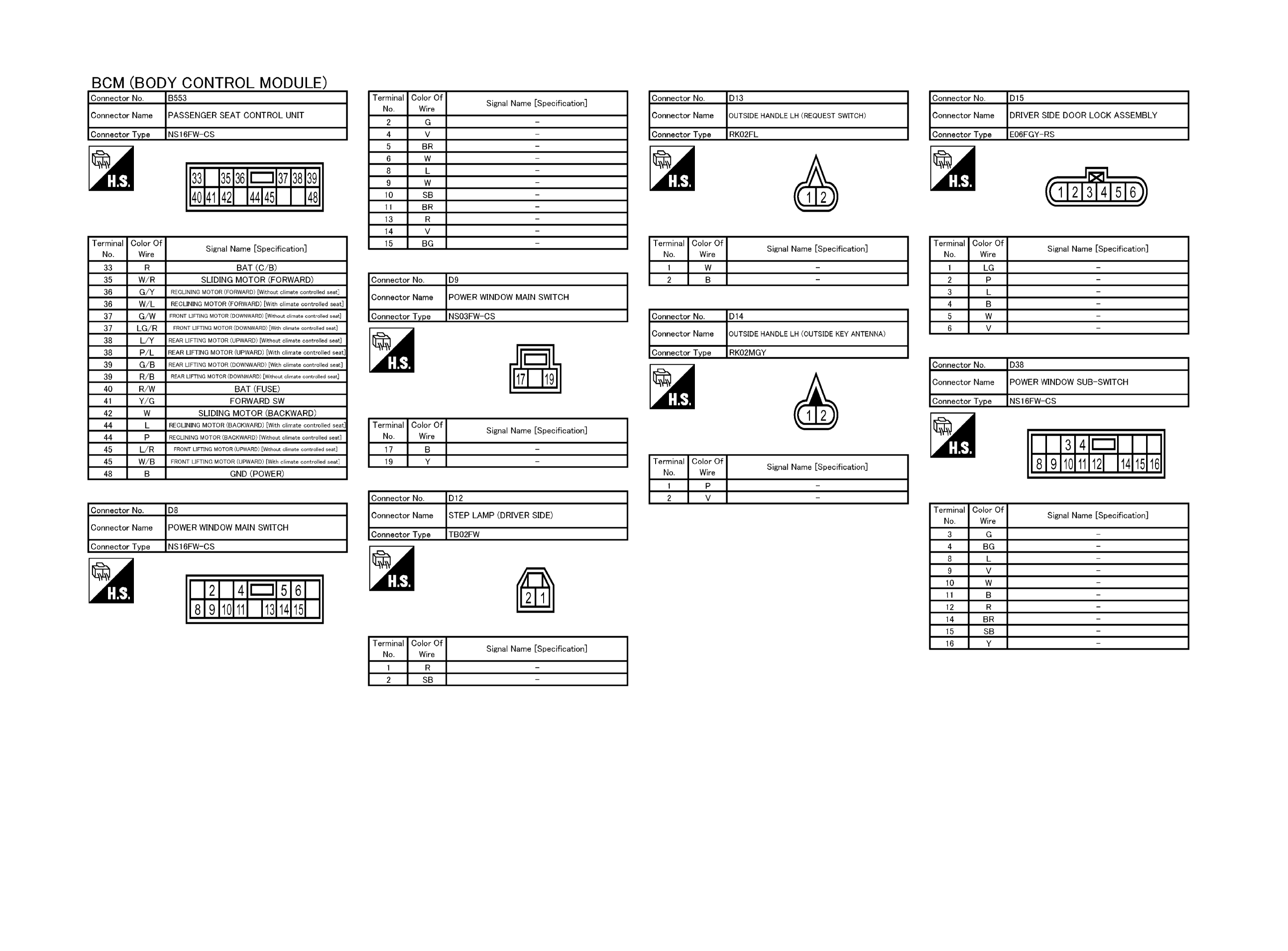

Fig 3: BCM Connector End Views (3 Of 10)

GNSJRMWF1745GB-745

Courtesy of NISSAN NORTH AMERICA, INC.

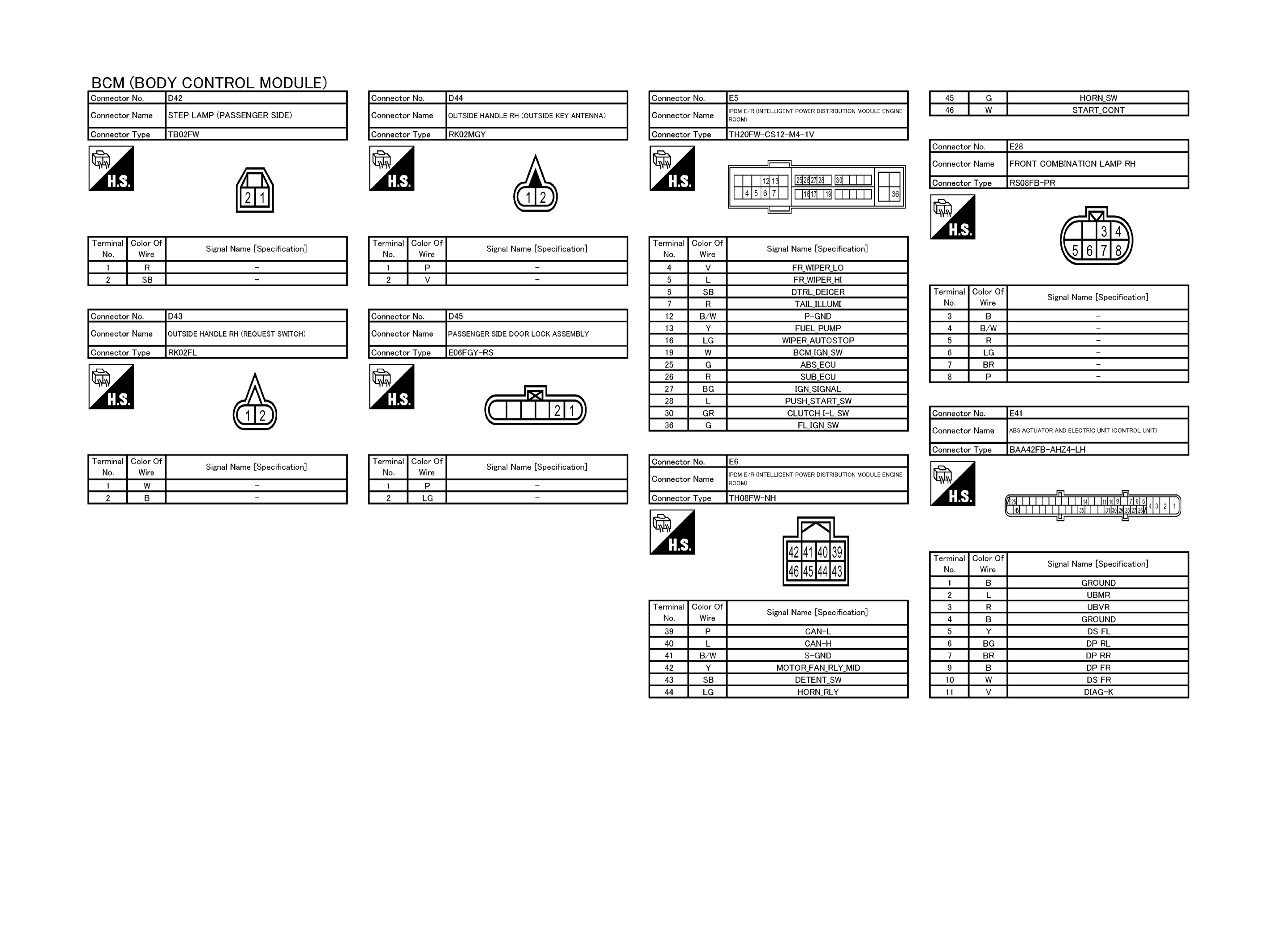

Fig 4: BCM Connector End Views (4 Of 10)

GNSJRMWF1746GB-746

Courtesy of NISSAN NORTH AMERICA, INC.

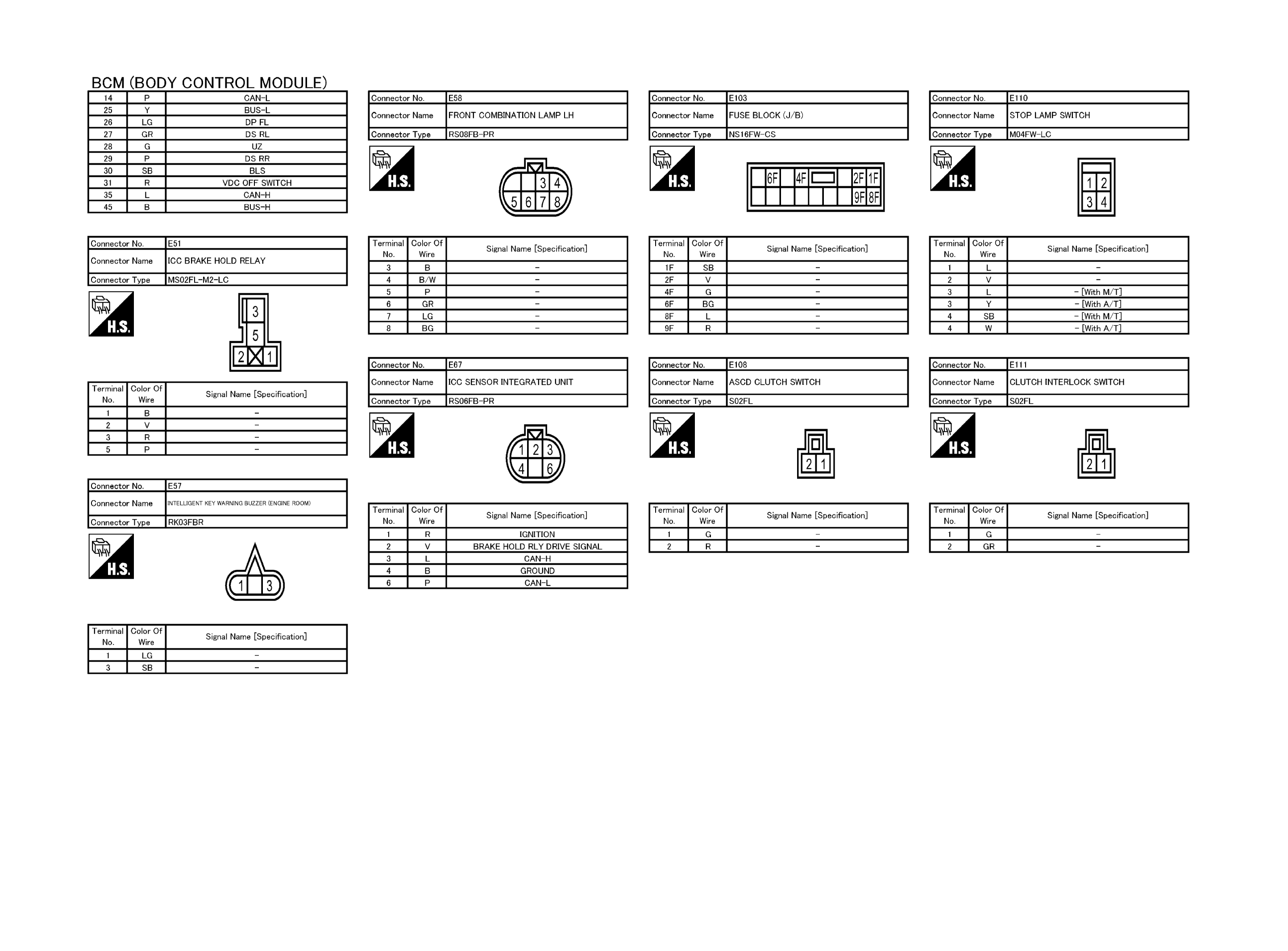

Fig 5: BCM Connector End Views (5 Of 10)

GNSJRMWF1747GB-747

Courtesy of NISSAN NORTH AMERICA, INC.

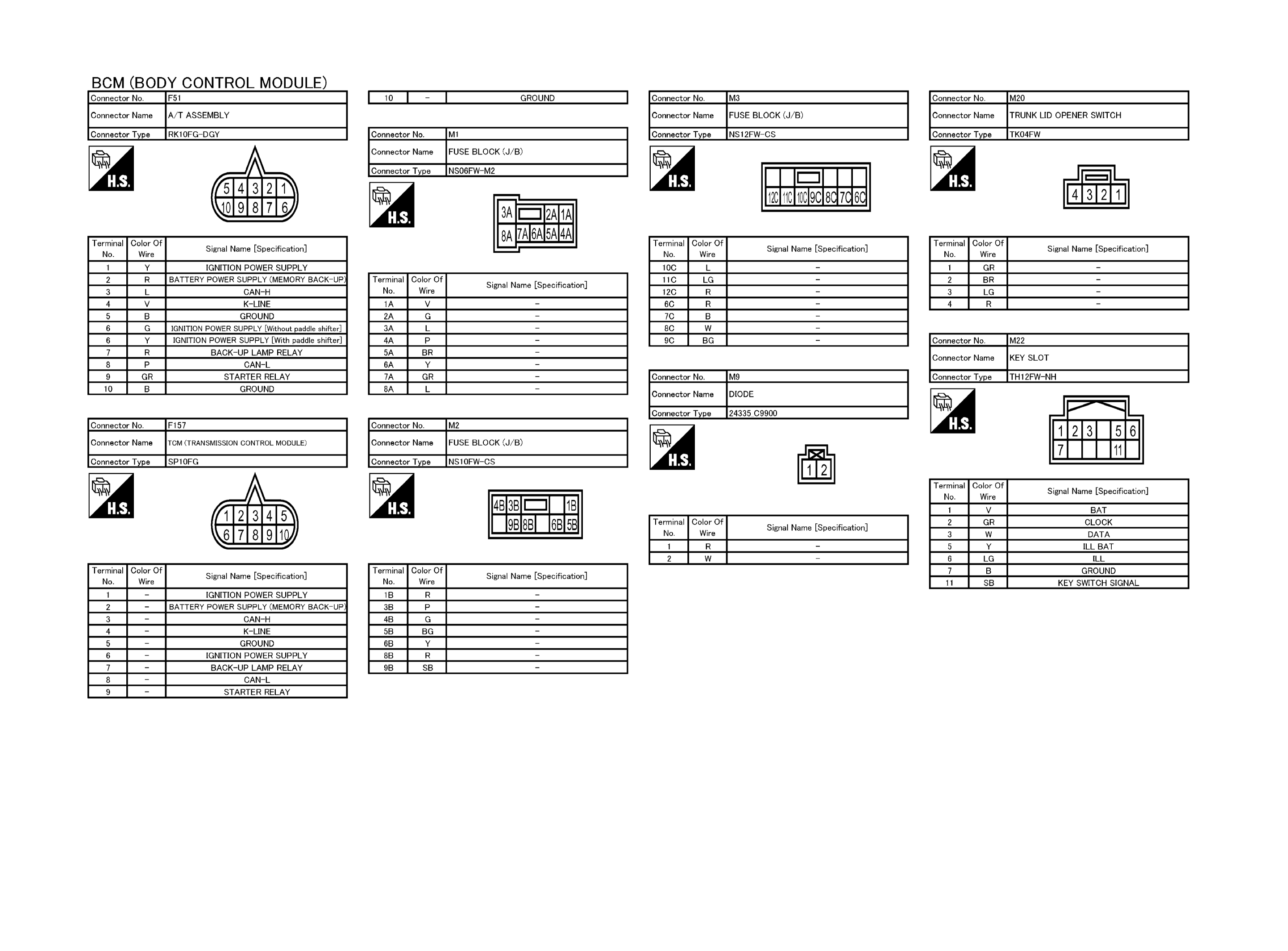

Fig 6: BCM Connector End Views (6 Of 10)

GNSJRMWF1748GB-748

Courtesy of NISSAN NORTH AMERICA, INC.

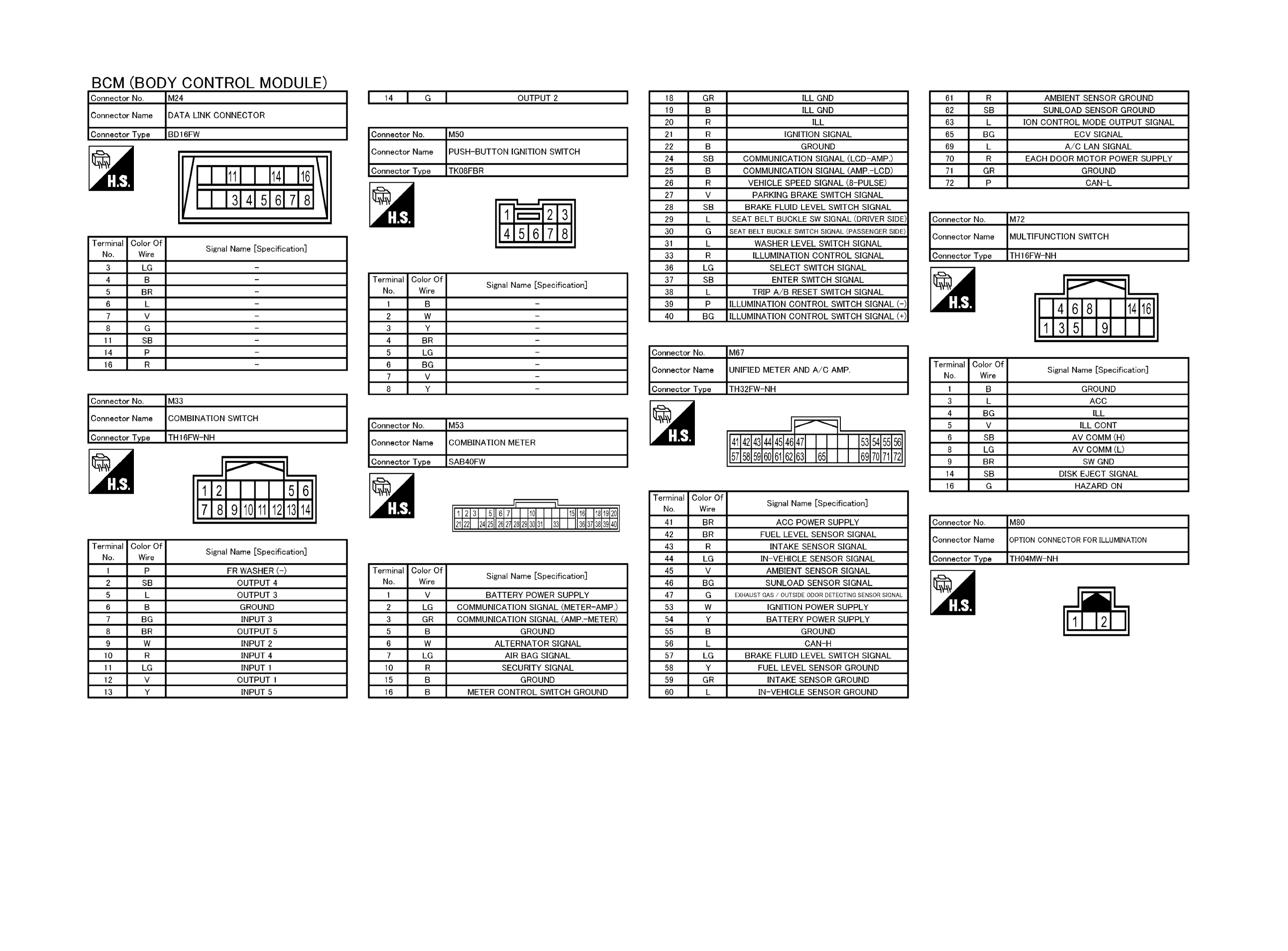

Fig 7: BCM Connector End Views (7 Of 10)

GNSJRMWF1749GB-749

Courtesy of NISSAN NORTH AMERICA, INC.

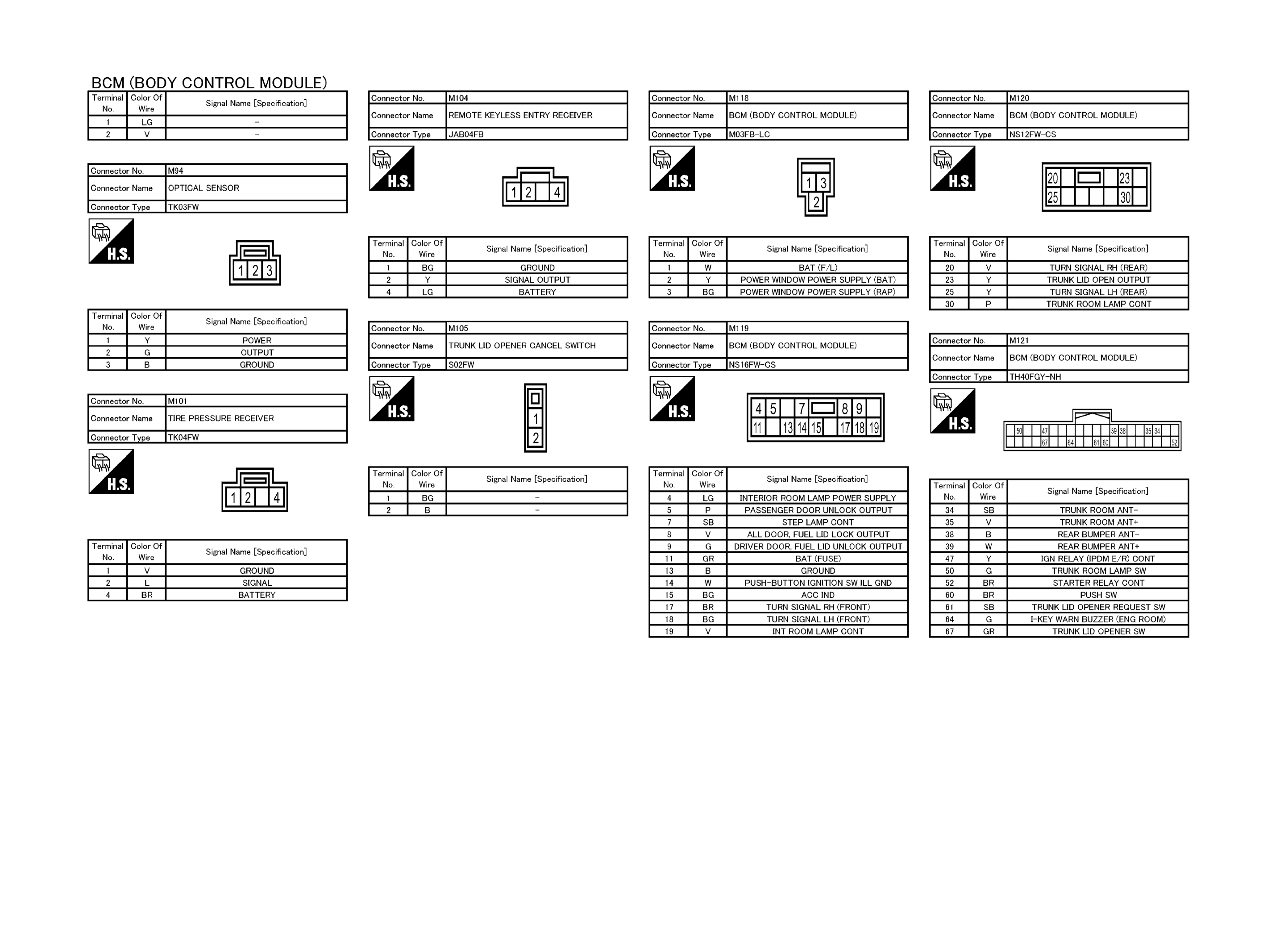

Fig 8: BCM Connector End Views (8 Of 10)

GNSJRMWF1750GB-750

Courtesy of NISSAN NORTH AMERICA, INC.

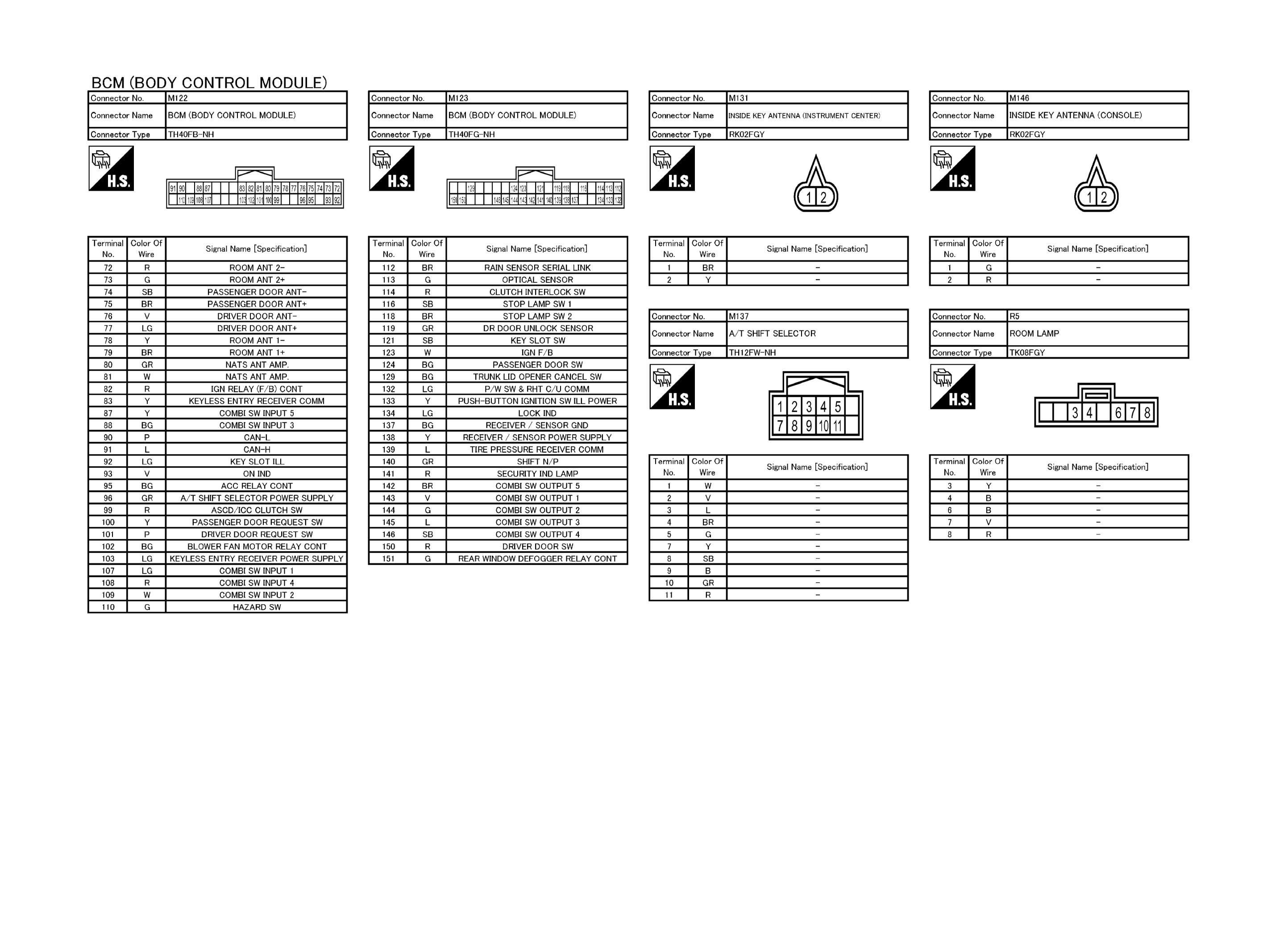

Fig 9: BCM Connector End Views (9 Of 10)

GNSJRMWF1751GB-751

Courtesy of NISSAN NORTH AMERICA, INC.

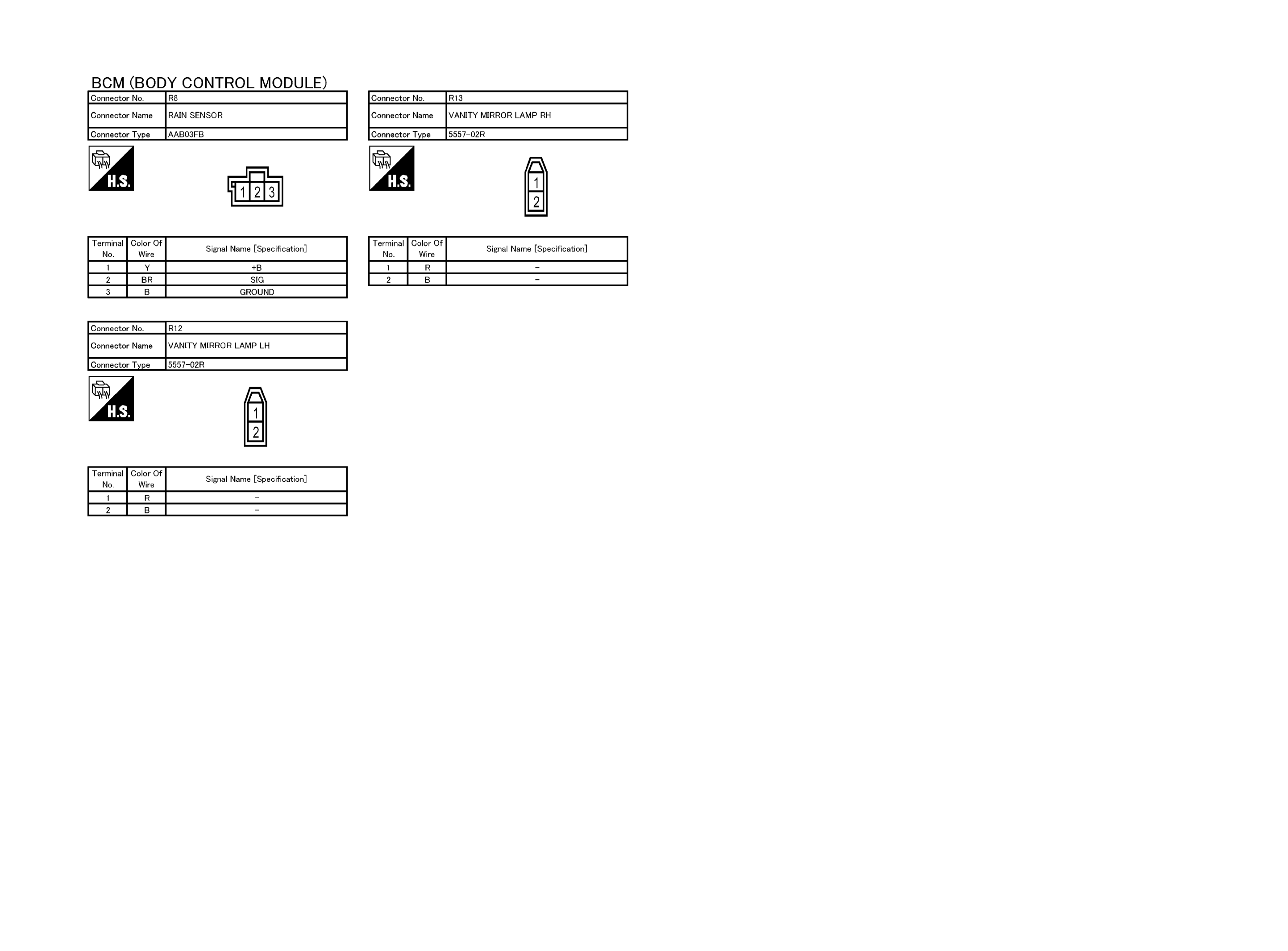

Fig 10: BCM Connector End Views (10 Of 10)

GNSJRMWF1752GB-752

Courtesy of NISSAN NORTH AMERICA, INC.
