System Description
>>
System
>>
Hybrid EPS System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

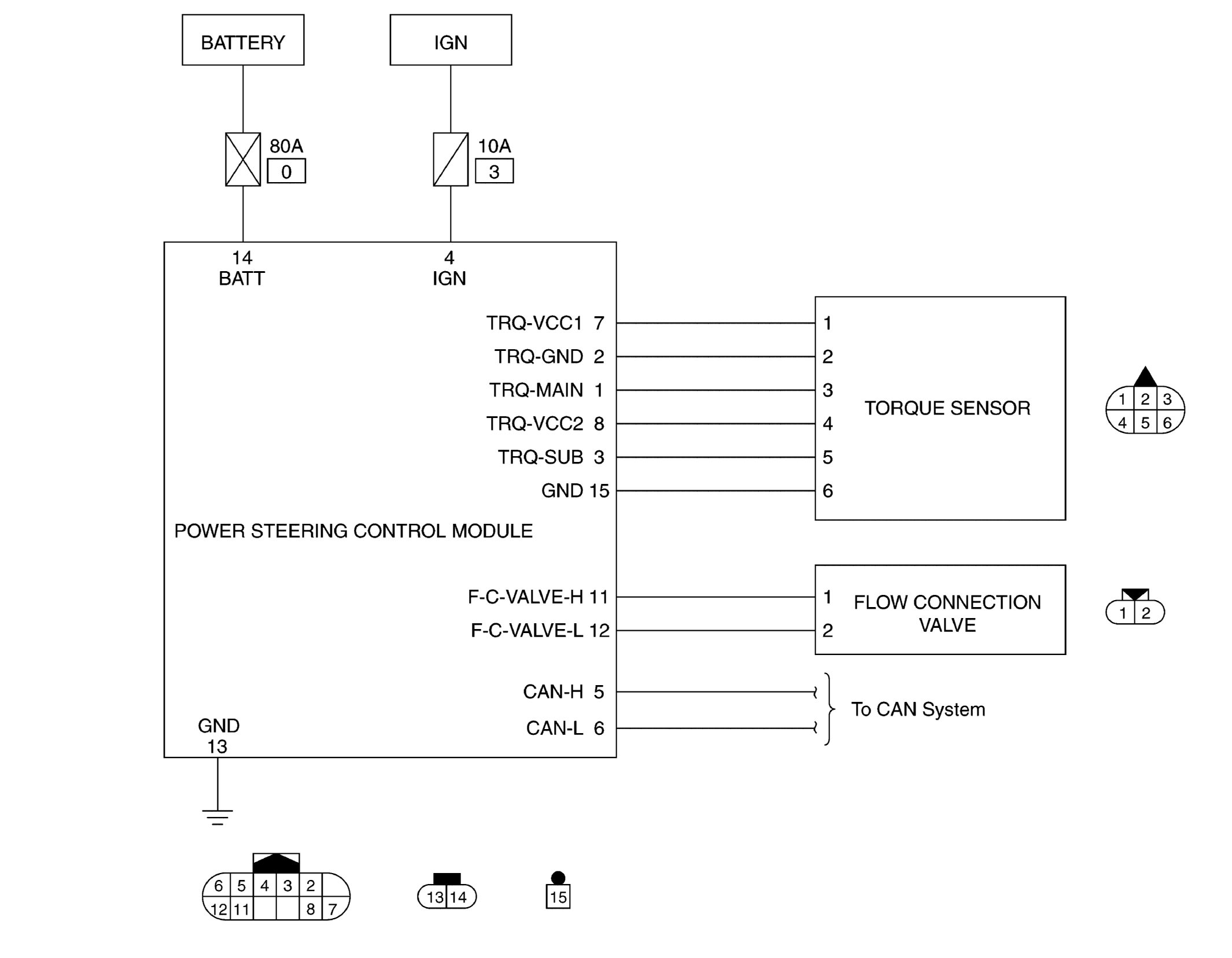

Fig 1: Hybrid EPS System -- Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
