Vehicle Security System Connector End Views

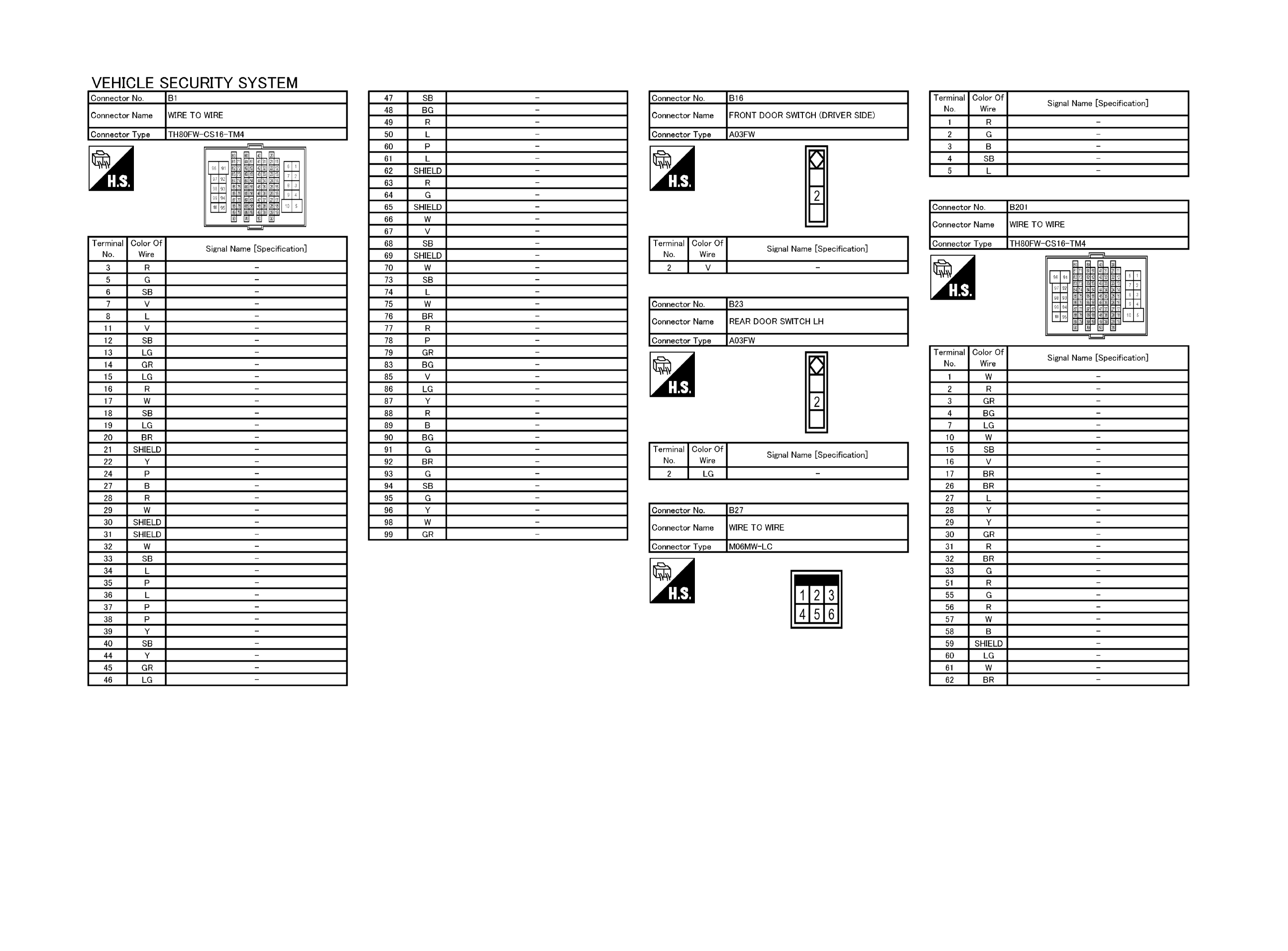

Fig 1: Vehicle Security System Connector End Views (1 Of 8)
GNSJRKWD4925GB-925Courtesy of NISSAN NORTH AMERICA, INC.

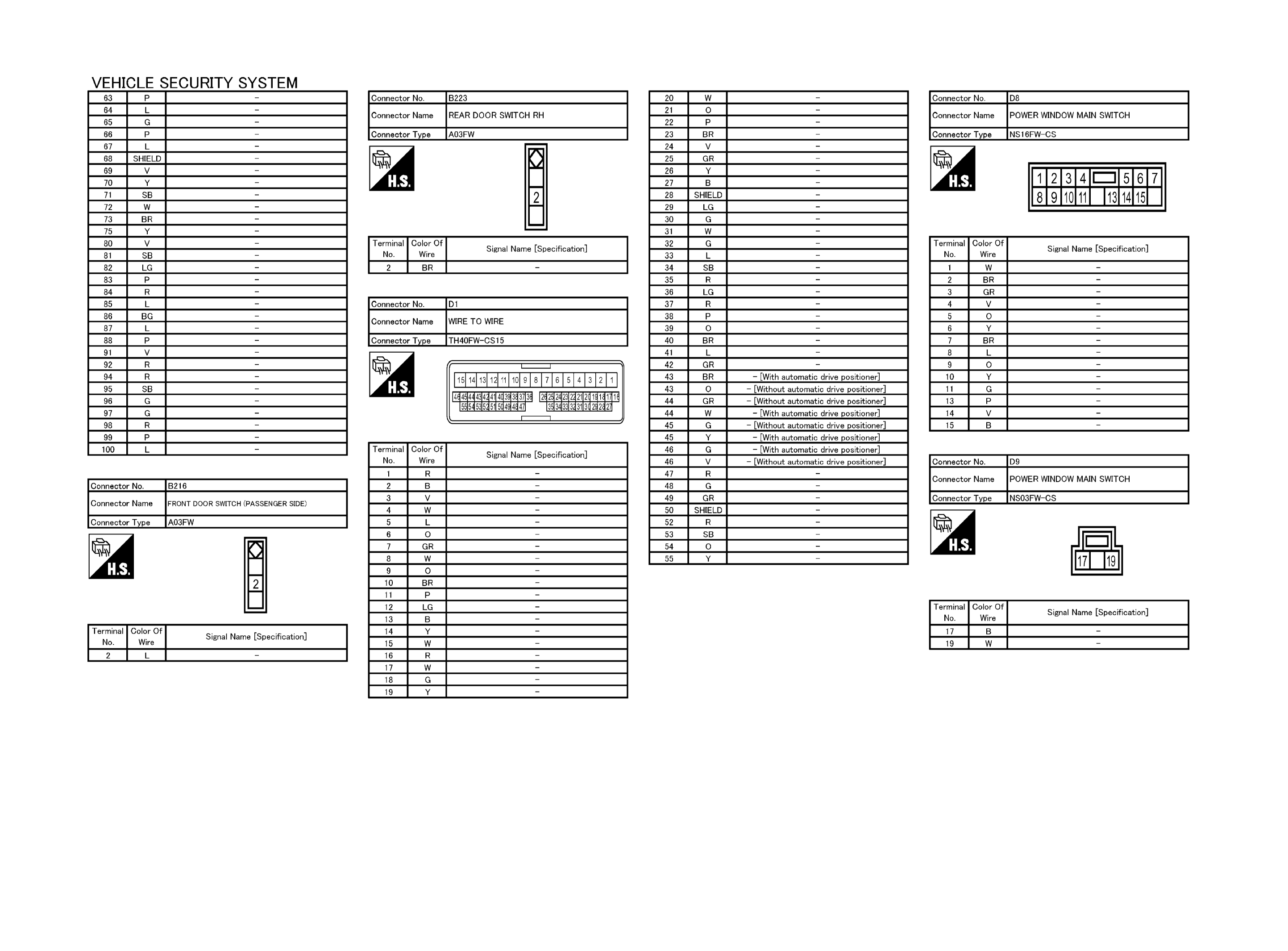

Fig 2: Vehicle Security System Connector End Views (2 Of 8)
GNSJRKWD4926GB-926Courtesy of NISSAN NORTH AMERICA, INC.

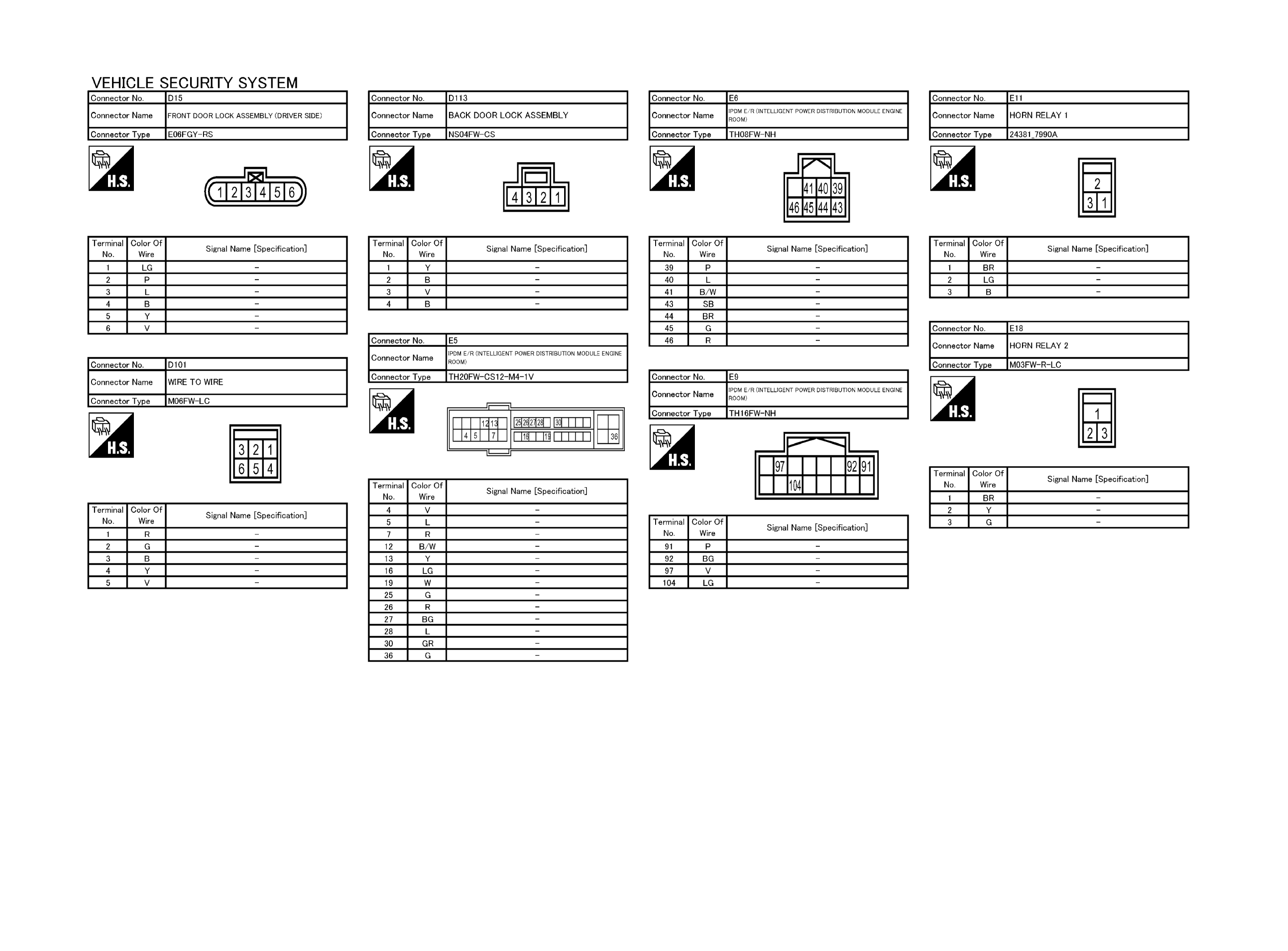

Fig 3: Vehicle Security System Connector End Views (3 Of 8)
GNSJRKWD4927GB-927Courtesy of NISSAN NORTH AMERICA, INC.

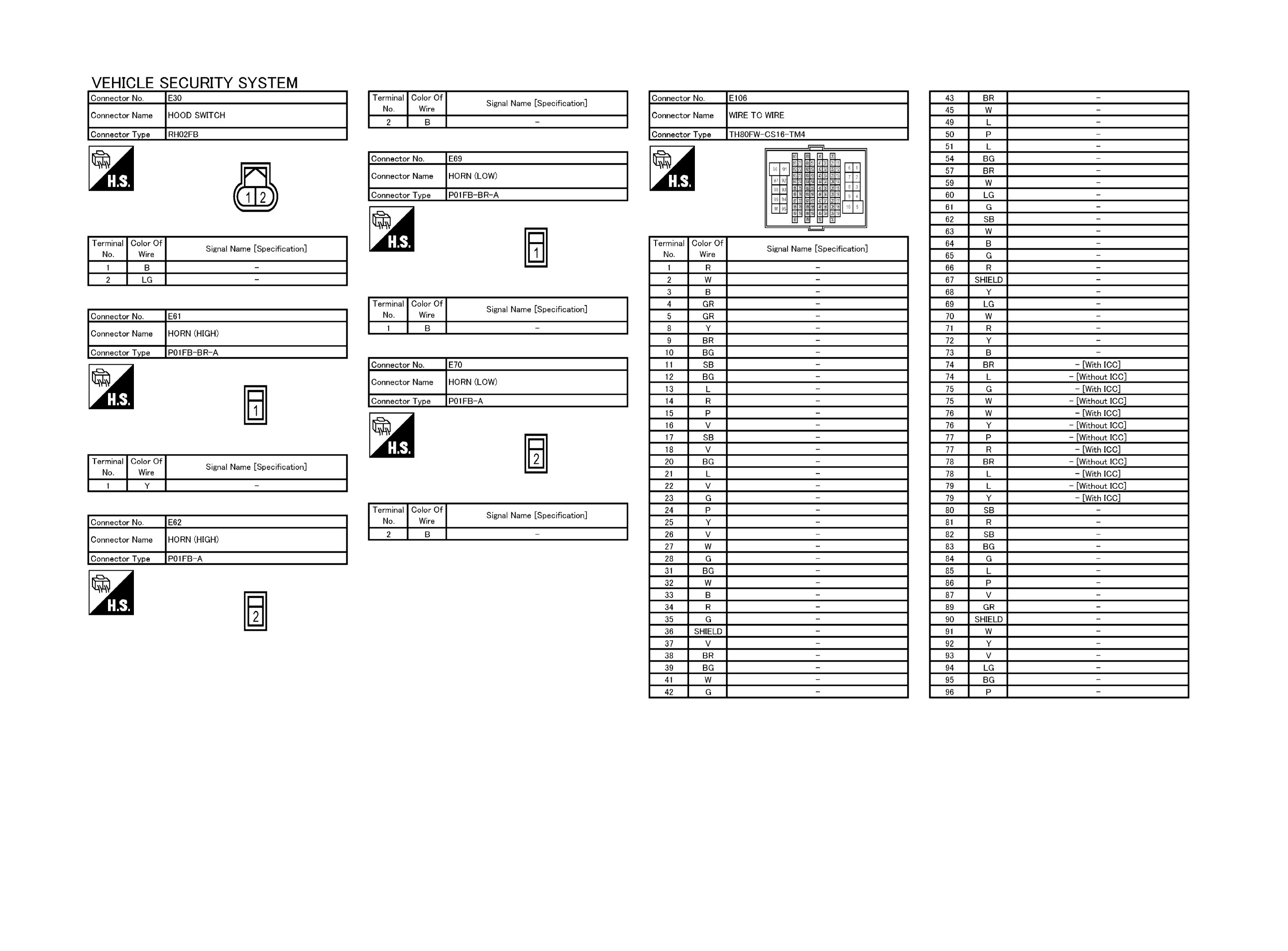

Fig 4: Vehicle Security System Connector End Views (4 Of 8)
GNSJRKWD4928GB-928Courtesy of NISSAN NORTH AMERICA, INC.

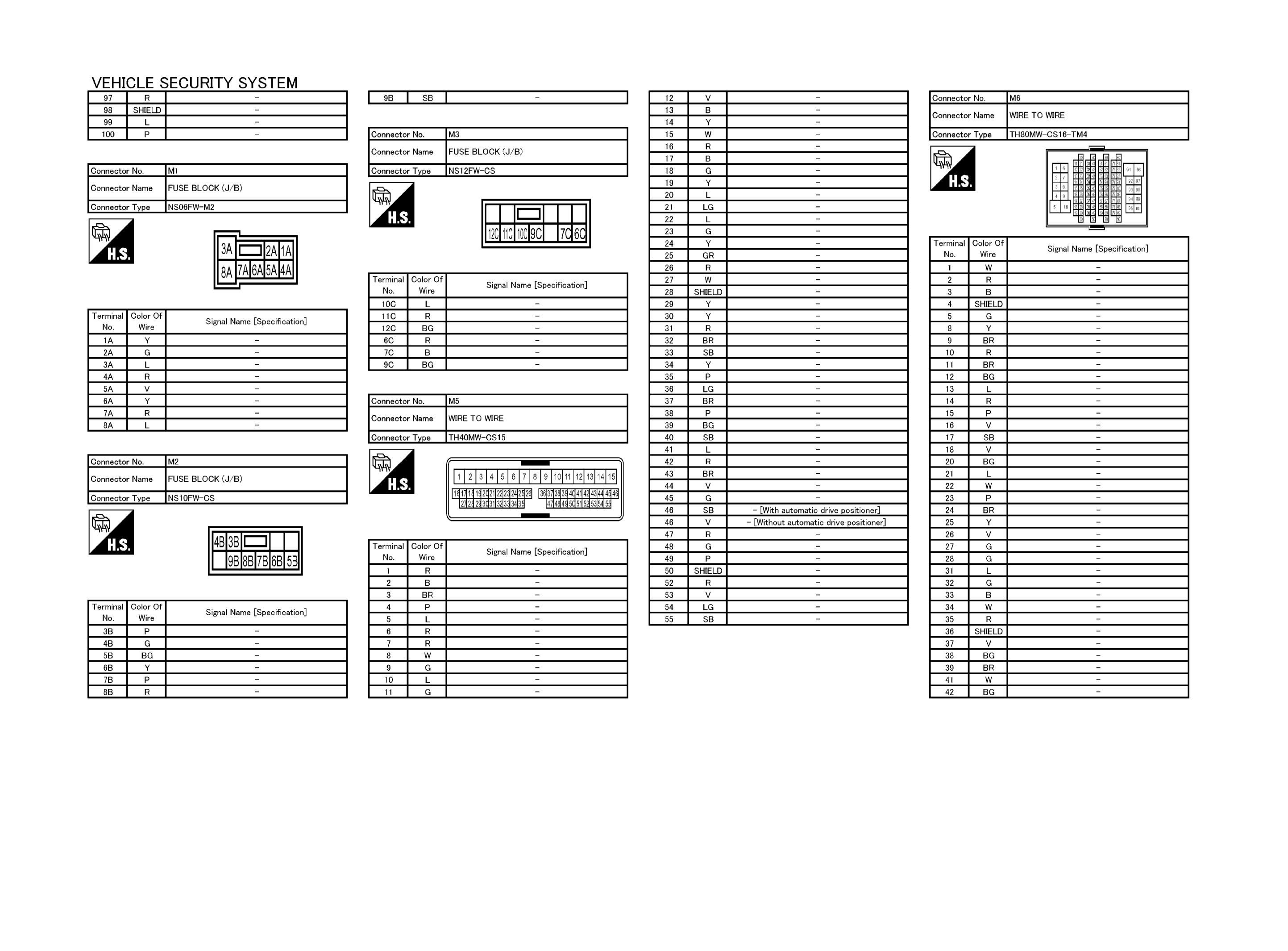

Fig 5: Vehicle Security System Connector End Views (5 Of 8)
GNSJRKWD4929GB-929Courtesy of NISSAN NORTH AMERICA, INC.

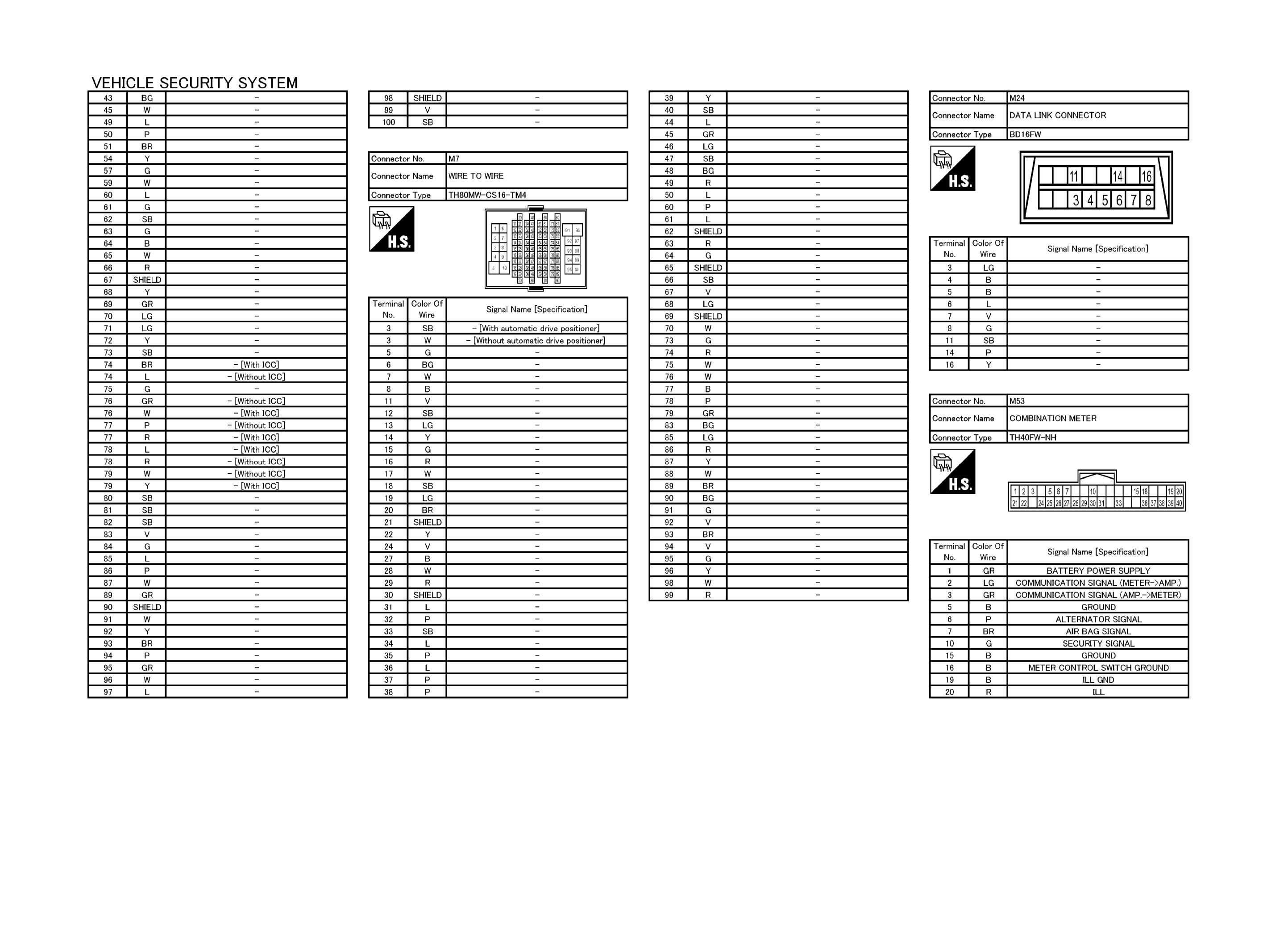

Fig 6: Vehicle Security System Connector End Views (6 Of 8)
GNSJRKWD4930GB-930Courtesy of NISSAN NORTH AMERICA, INC.

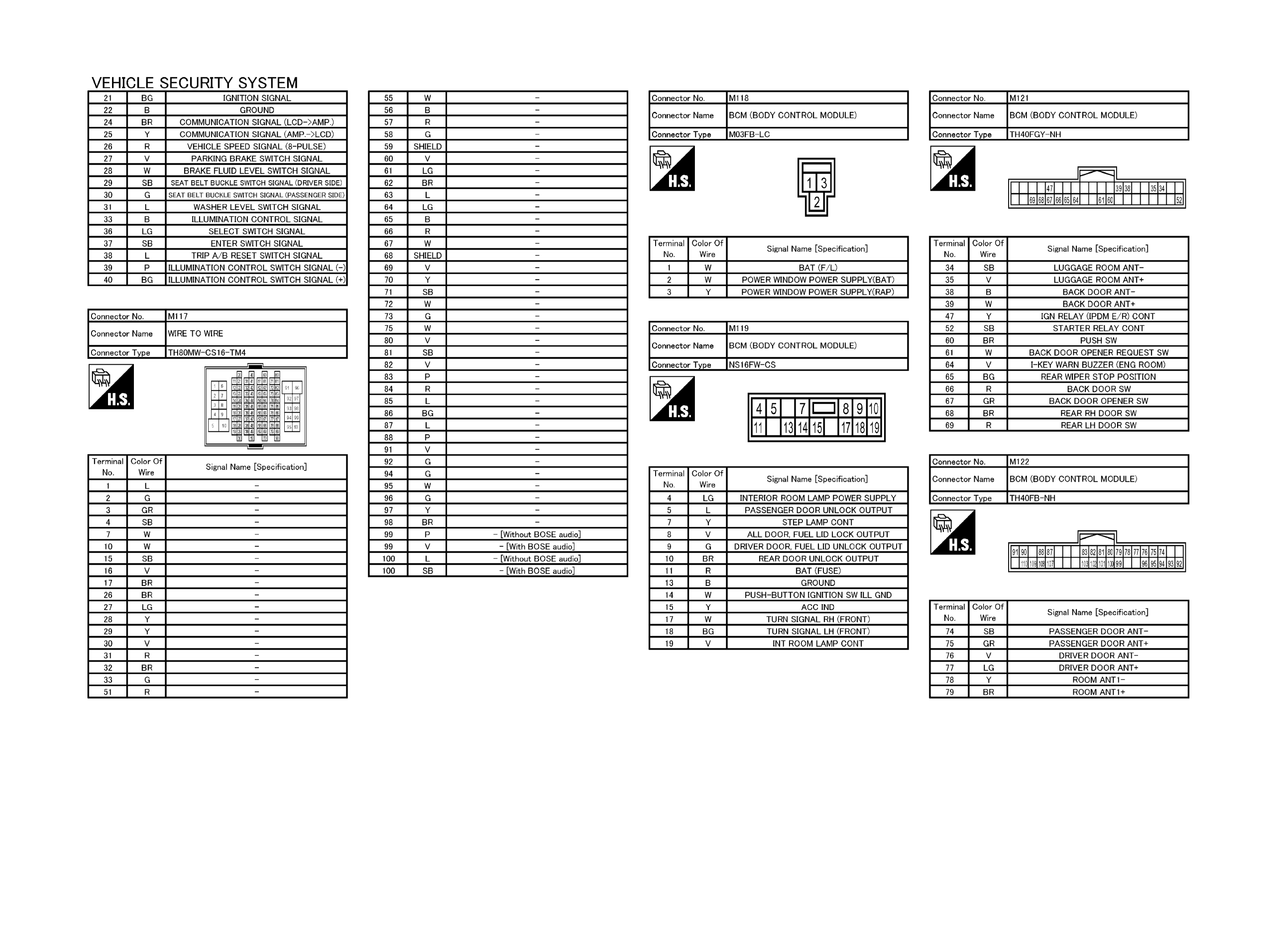

Fig 7: Vehicle Security System Connector End Views (7 Of 8)
GNSJRKWD4931GB-931Courtesy of NISSAN NORTH AMERICA, INC.

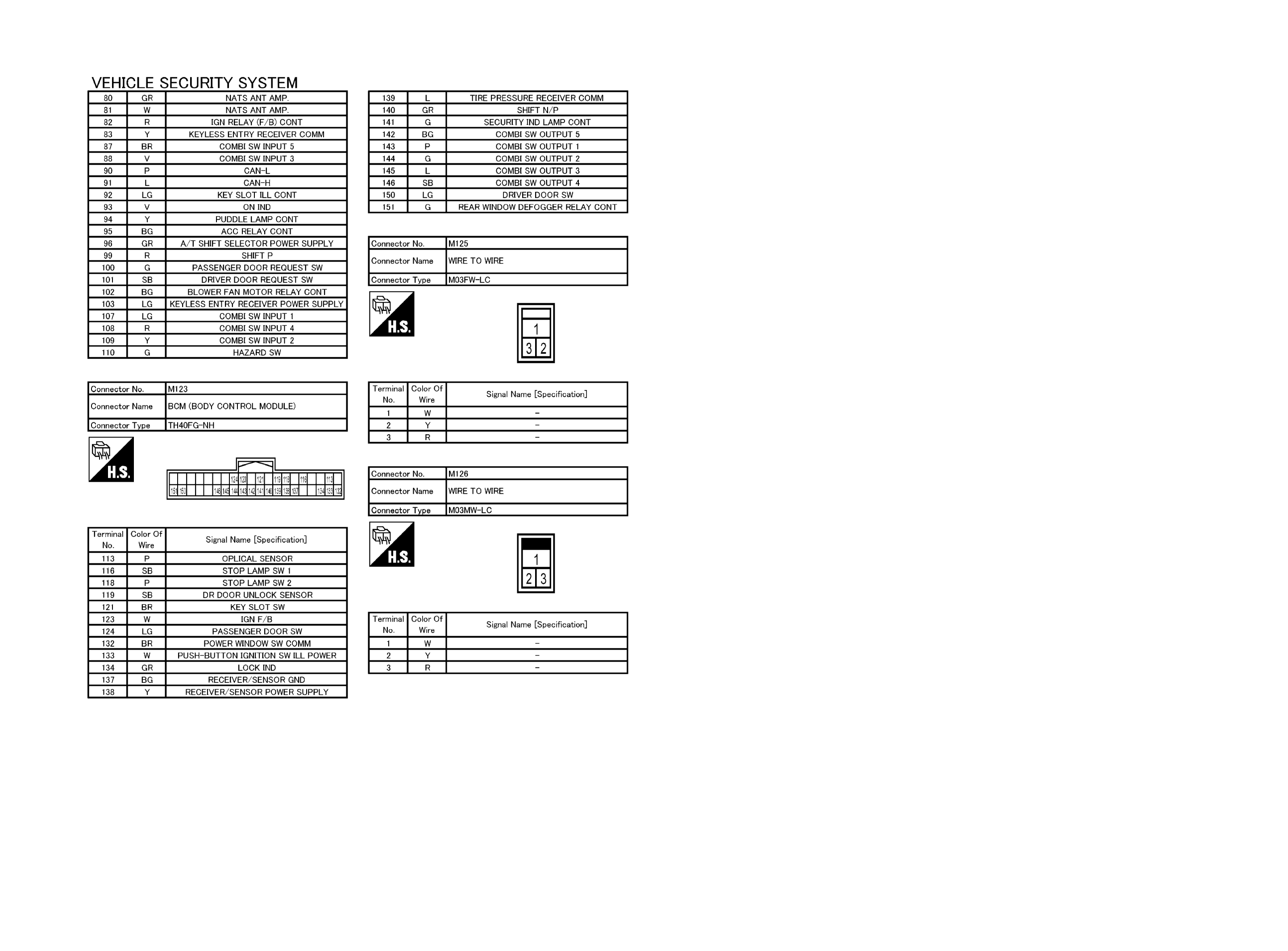

Fig 8: Vehicle Security System Connector End Views (8 Of 8)
GNSJRKWD4932GB-932Courtesy of NISSAN NORTH AMERICA, INC.
