Components Location

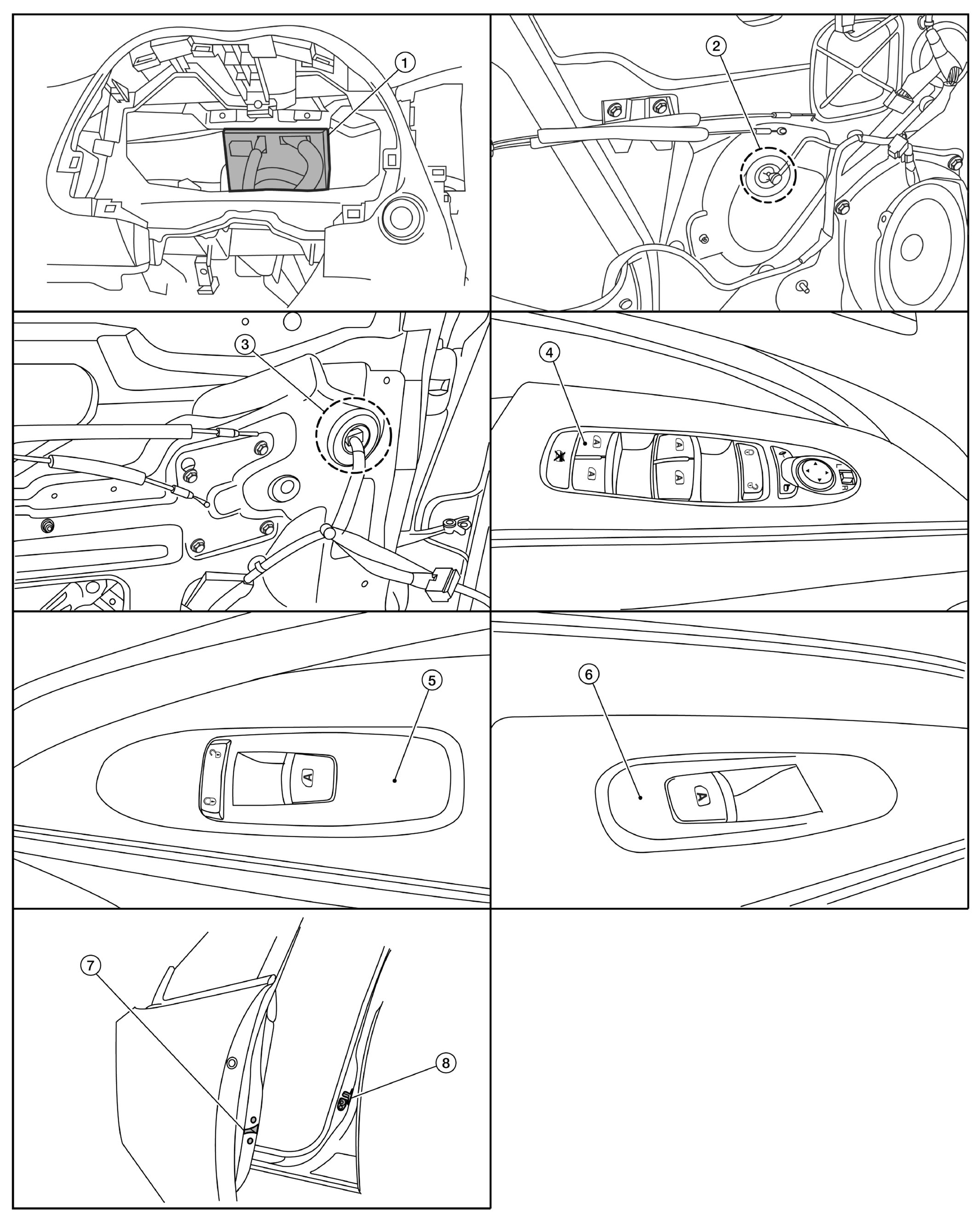

Fig 1: Power Window Control System Components Location
GNSAWKIA1985ZZ-985Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with the combination meter removed) 2. Front power window motor LH (RH similar) 3. Rear power window motor LH (RH similar)
4. Main power window and door lock/unlock switch 5. Power window and door lock\unlock switch RH 6. Rear power window switch LH (RH similar)
7. Front door lock assembly LH (key cylinder switch) 8. Front door switch LH (RH similar)
