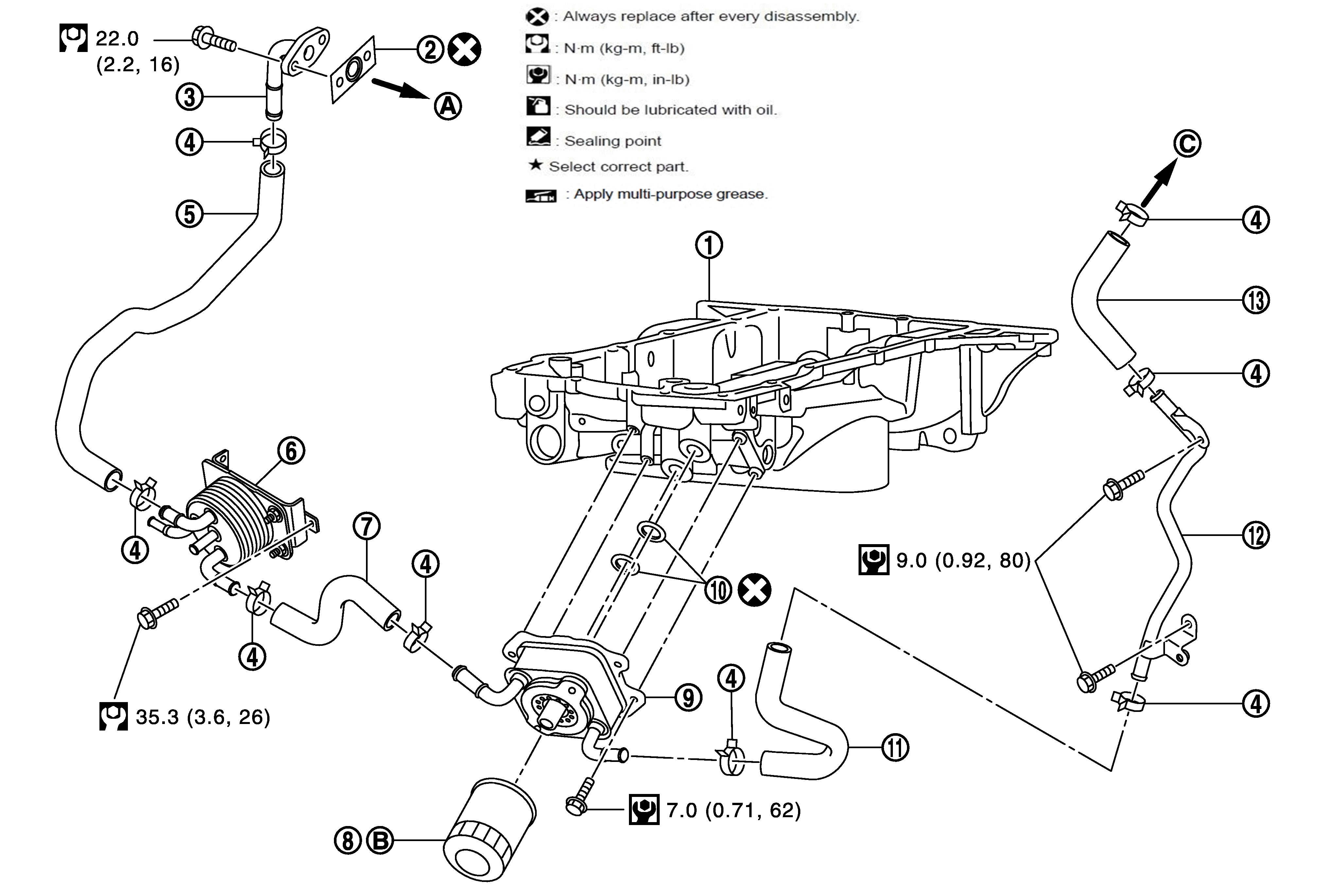

Exploded View With Torque Specifications
| 1. | Oil pan (upper) | 2. | Gasket | 3. | Connector pipe |
| 4. | Clamp | 5. | Water hose | 6. | A/T fluid warmer |
| 7. | Water hose | 8. | Oil filter | 9. | Oil cooler |
| 10. | O-ring | 11. | Water hose | 12. | Water pipe |
| 13. | Water hose | ||||
| A. | To cylinder block | B. | Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION | C. | To thermostat housing |
| Refer to COMPONENTS for symbols in the figure. | |||||
