Exploded View With Torque Specifications

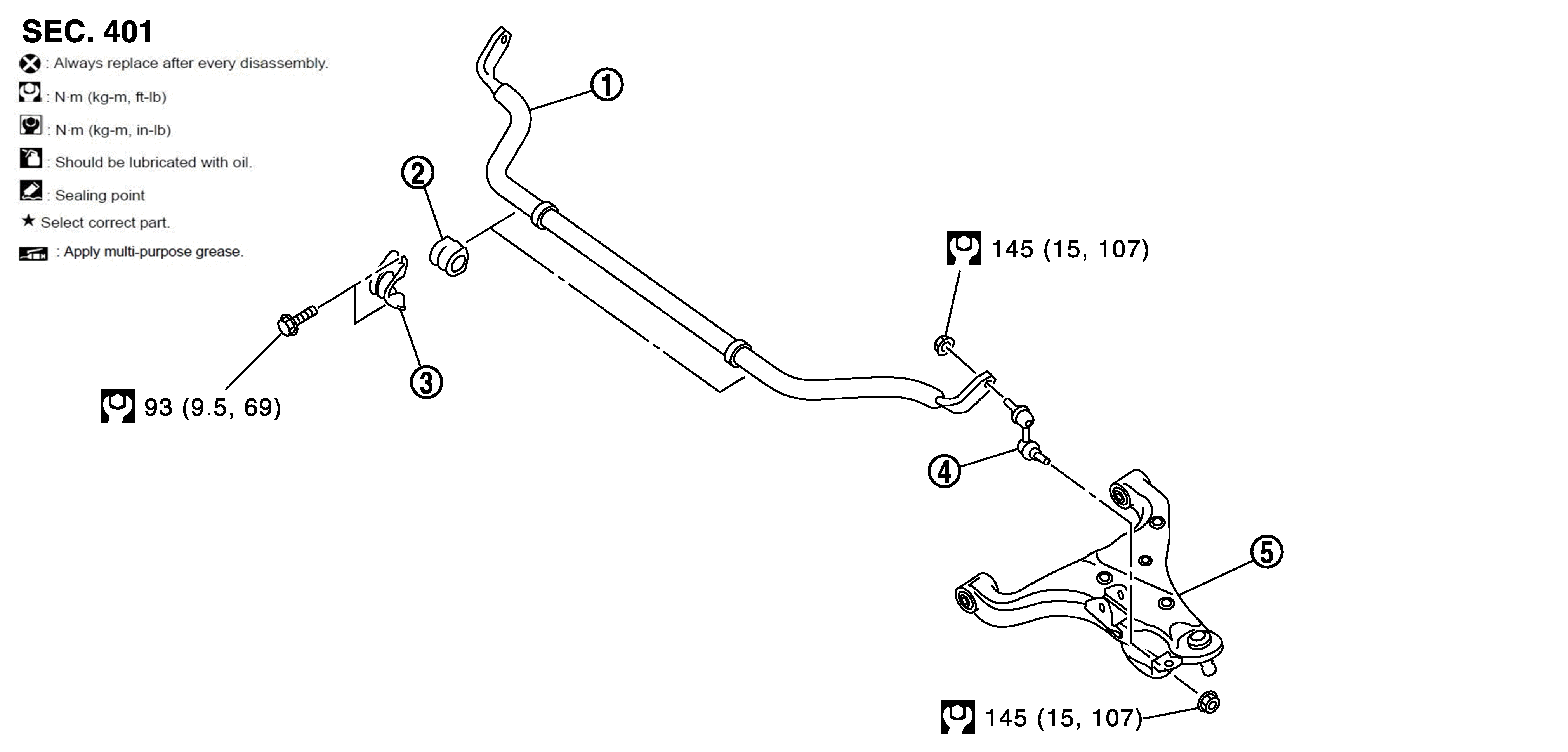

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications
GNSJPEIA0254GB-254Courtesy of NISSAN NORTH AMERICA, INC.
1. Stabilizer bar 2. Stabilizer bushing 3. Stabilizer clamp
4. Stabilizer connecting rod 5. Lower link
Refer to COMPONENTS for symbols in the figure.
