Exploded View With Torque Specifications

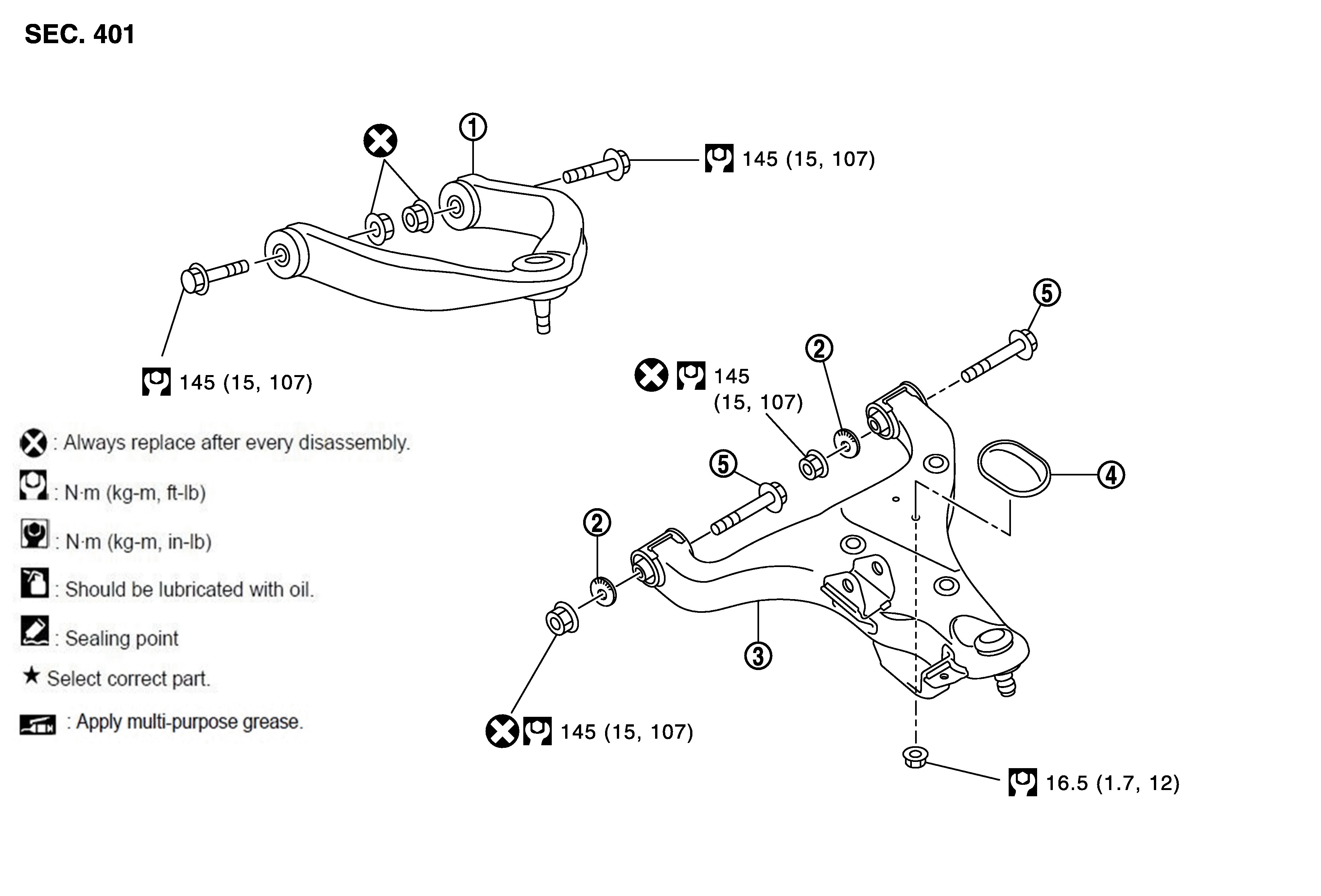

Fig 1: Exploded View Of Upper & Lower Links With Torque Specifications
GNSJPEIA0237GB-237Courtesy of NISSAN NORTH AMERICA, INC.
1. Upper link 2. Eccentric disc 3. Lower link
4. Bump rubber 5. Adjusting bolt
Refer to COMPONENTS for symbols in the figure.
