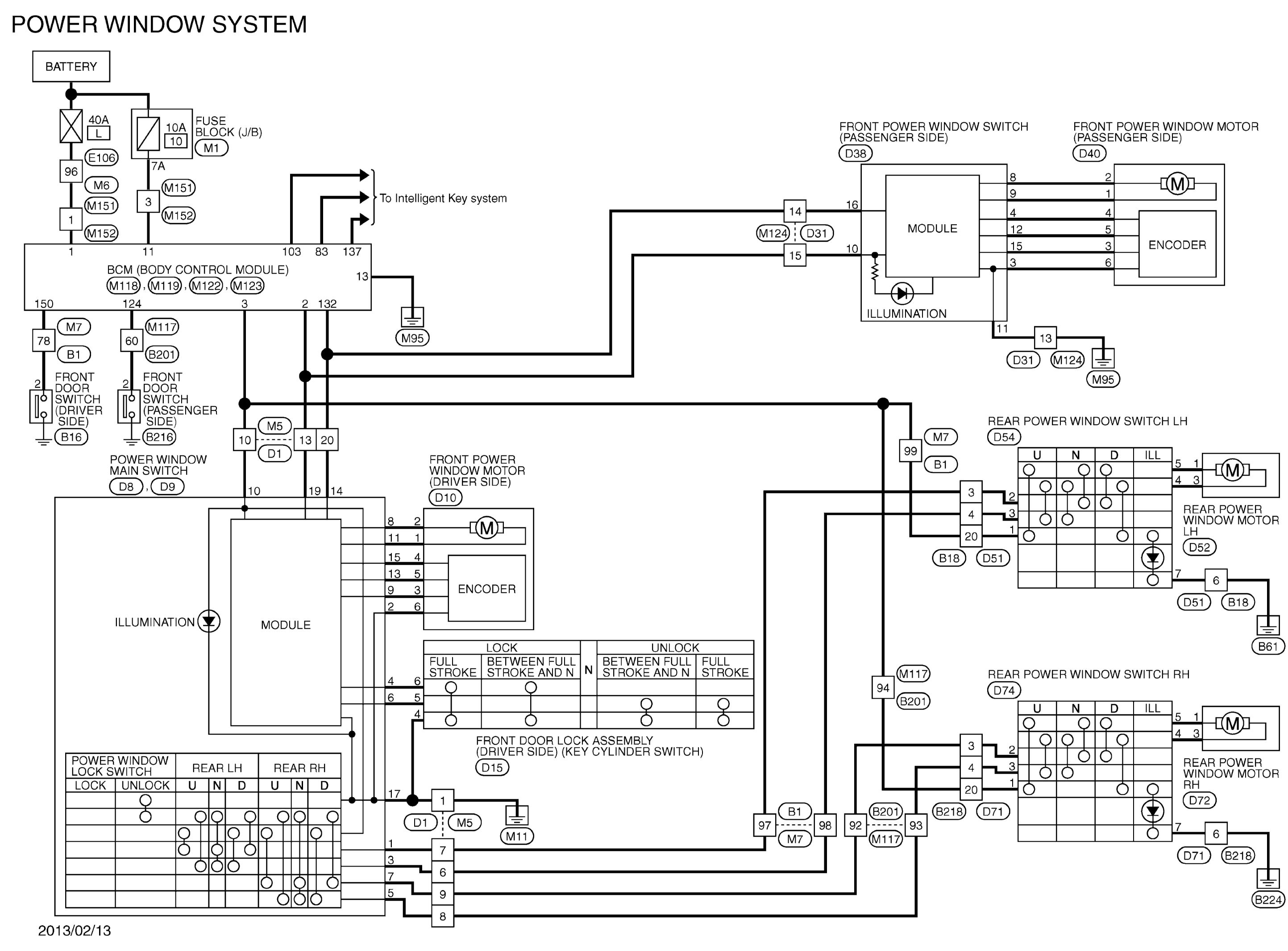

Wiring Diagram - Power Window Control System -

G09503815

Courtesy of NISSAN NORTH AMERICA, INC.

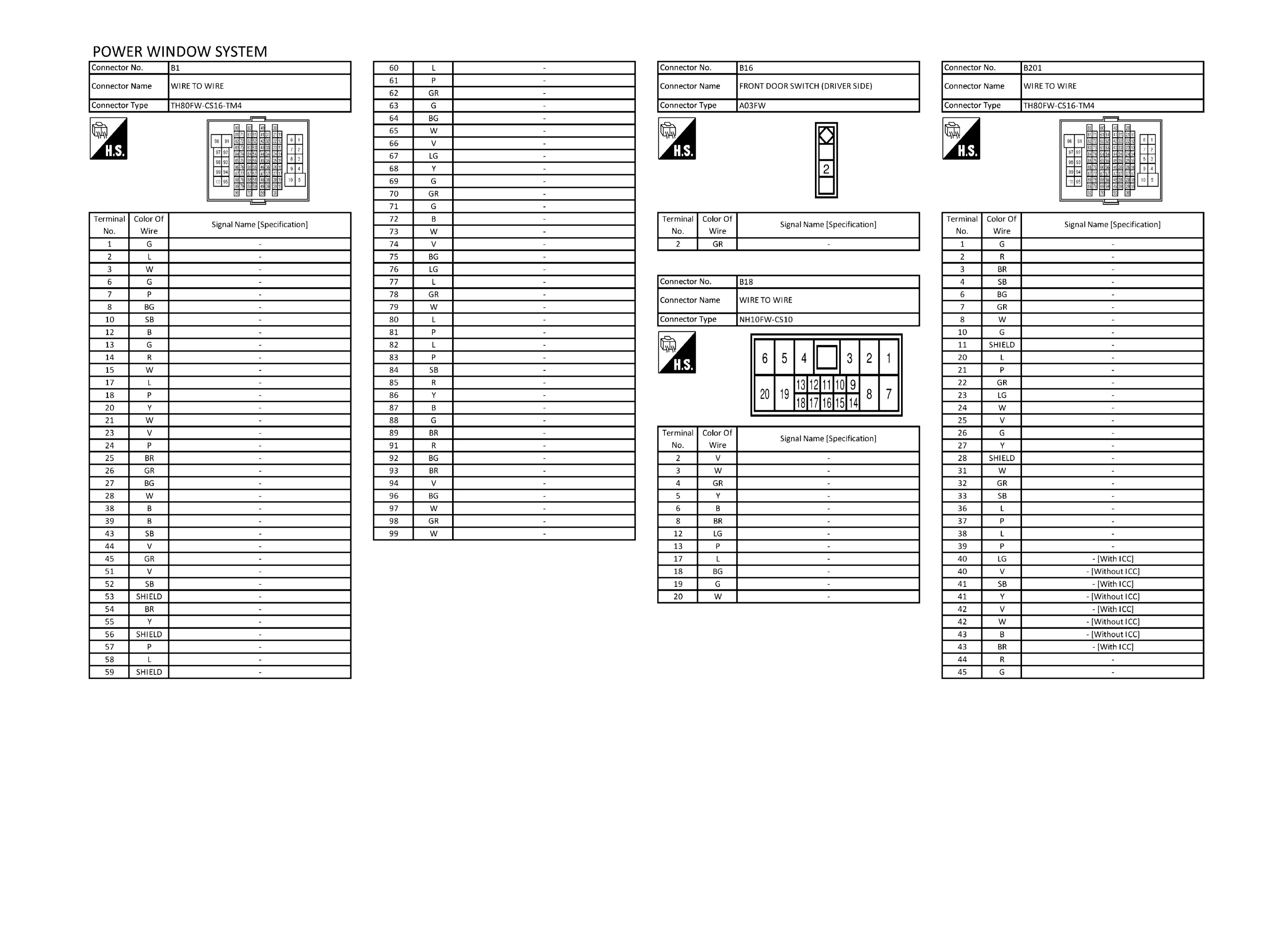

GNSJRKWF0486GB-486

Courtesy of NISSAN NORTH AMERICA, INC.

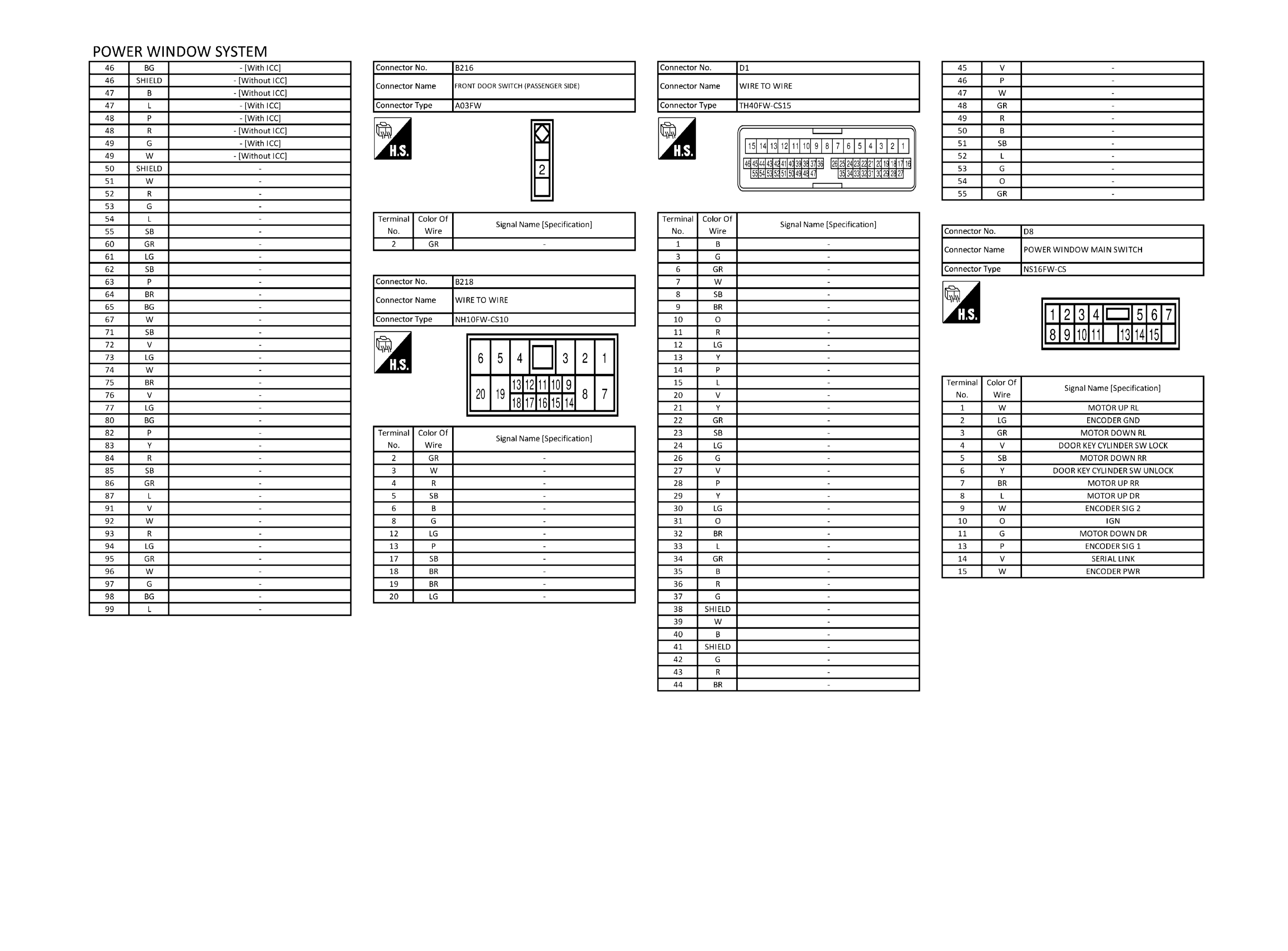

GNSJRKWF0487GB-487

Courtesy of NISSAN NORTH AMERICA, INC.

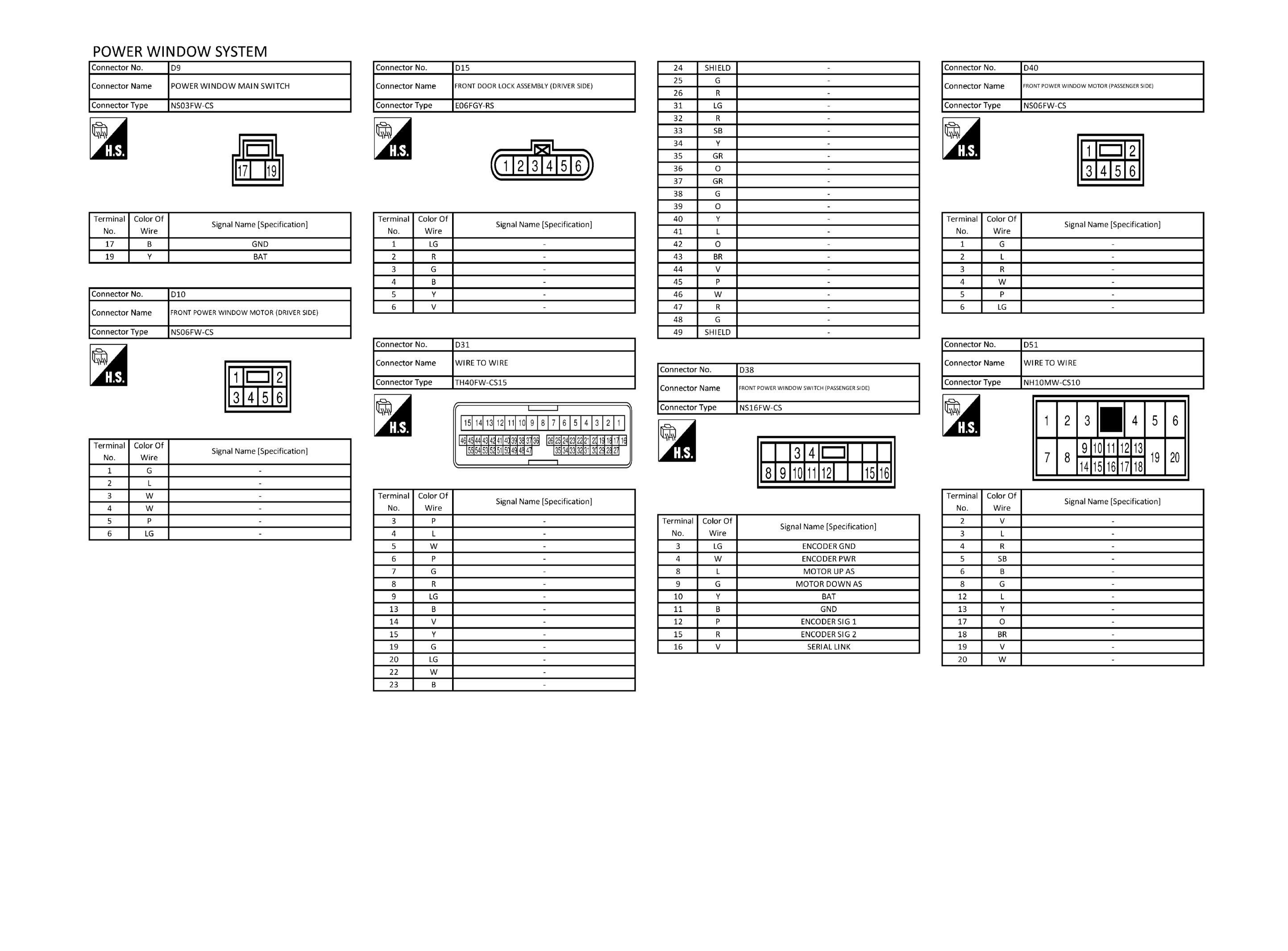

GNSJRKWF0488GB-488

Courtesy of NISSAN NORTH AMERICA, INC.

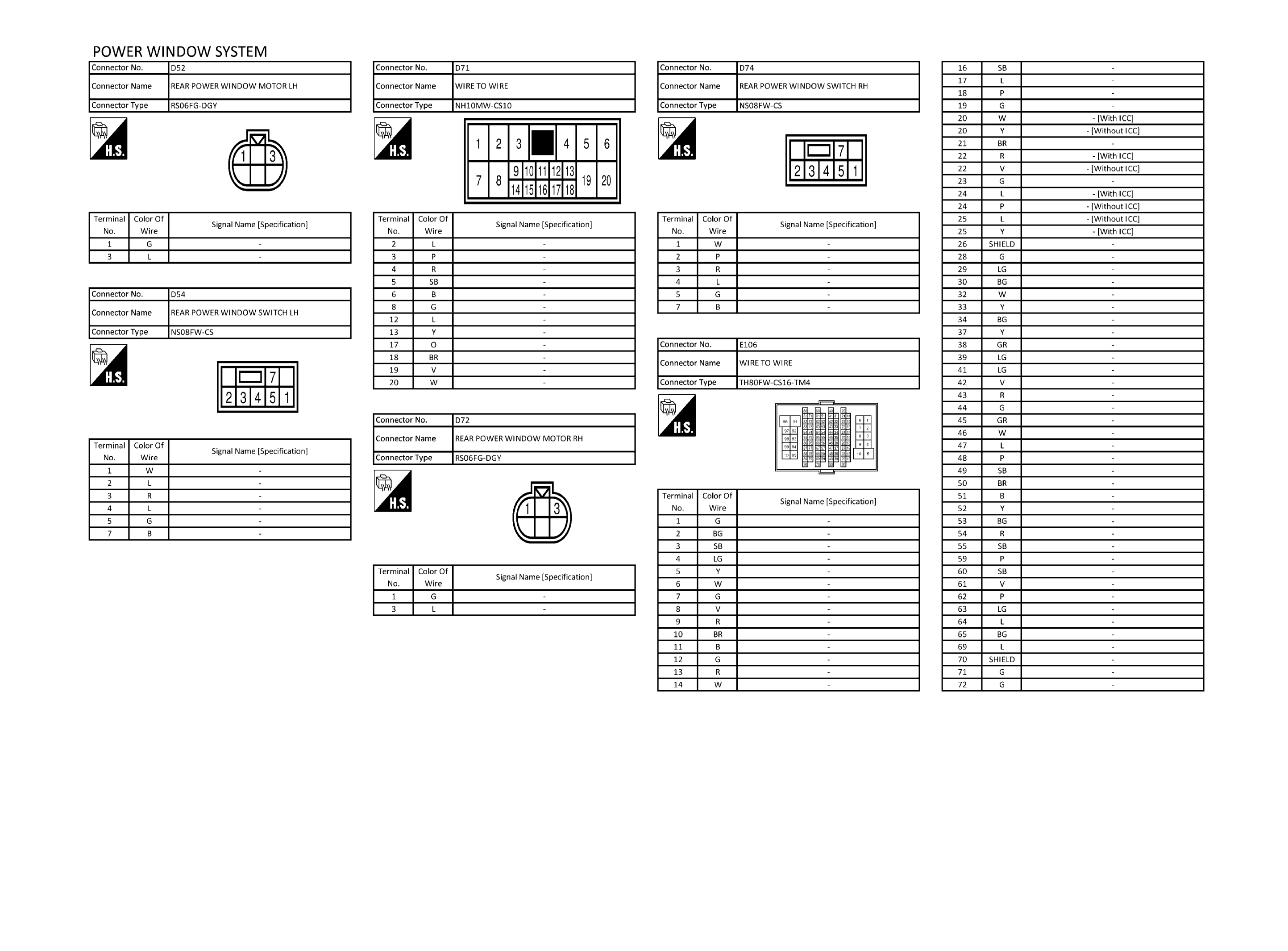

GNSJRKWF0489GB-489

Courtesy of NISSAN NORTH AMERICA, INC.

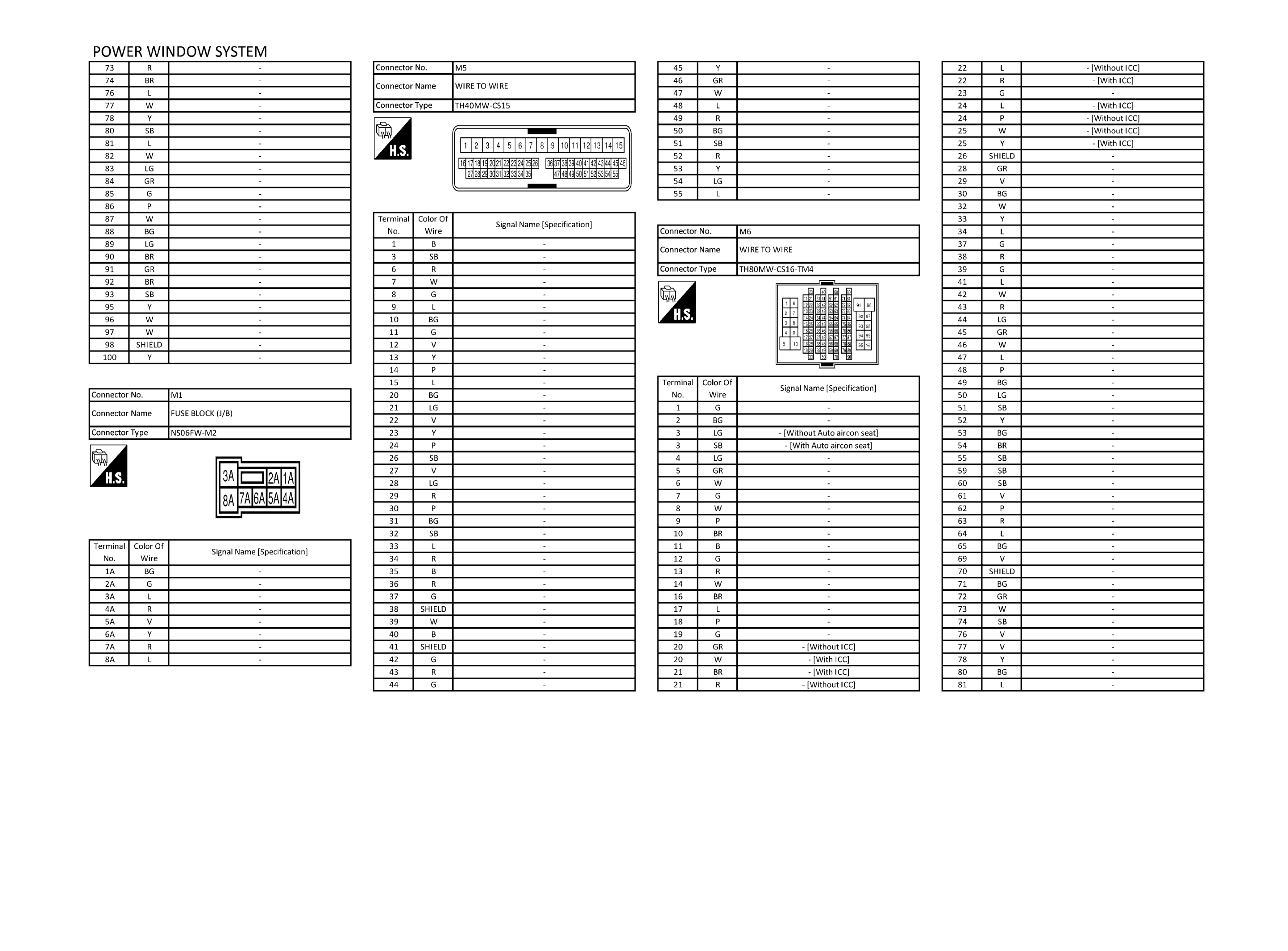

GNSJRKWF0490GB-490

Courtesy of NISSAN NORTH AMERICA, INC.

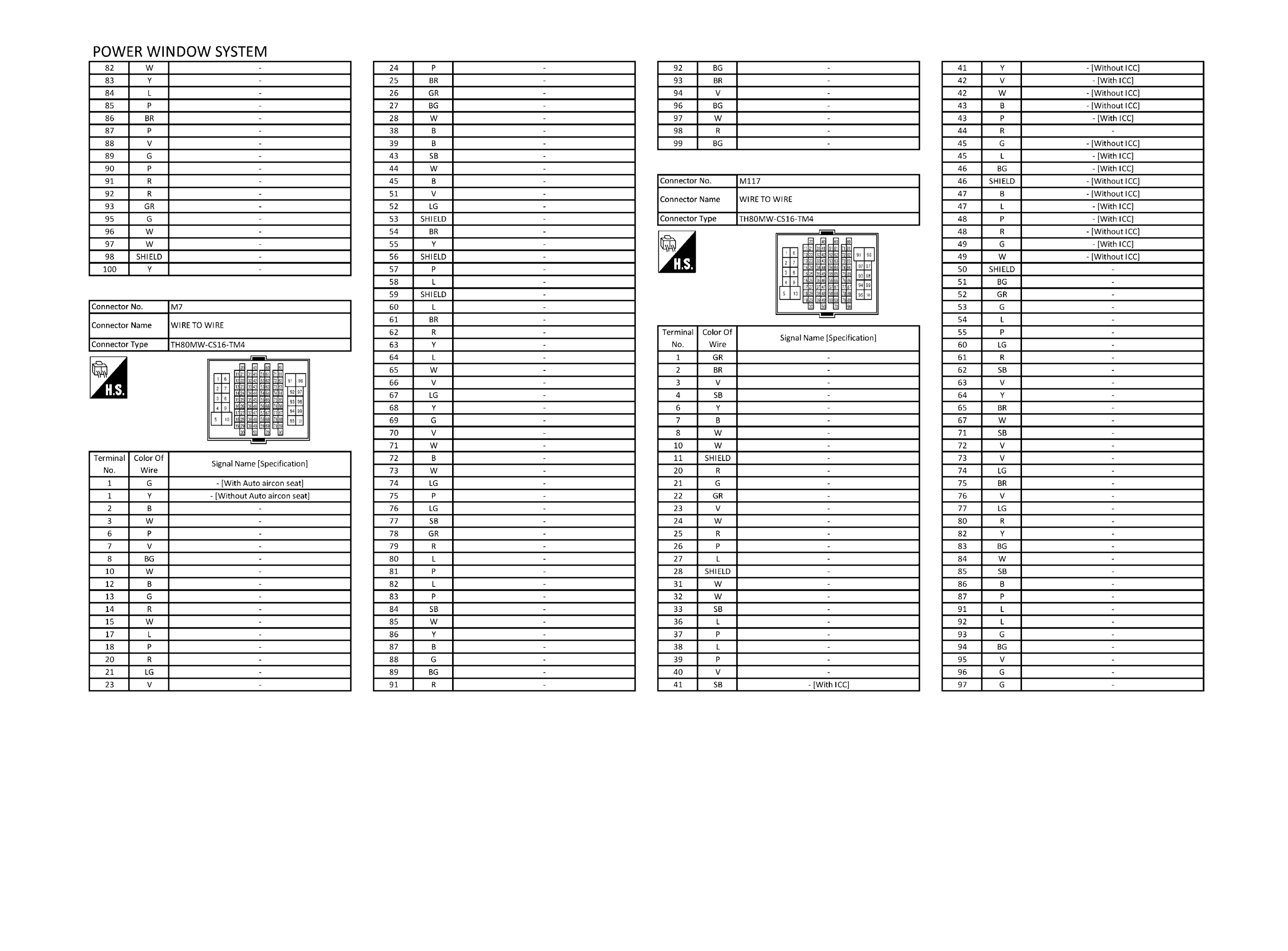

GNSJRKWF0491GB-491

Courtesy of NISSAN NORTH AMERICA, INC.

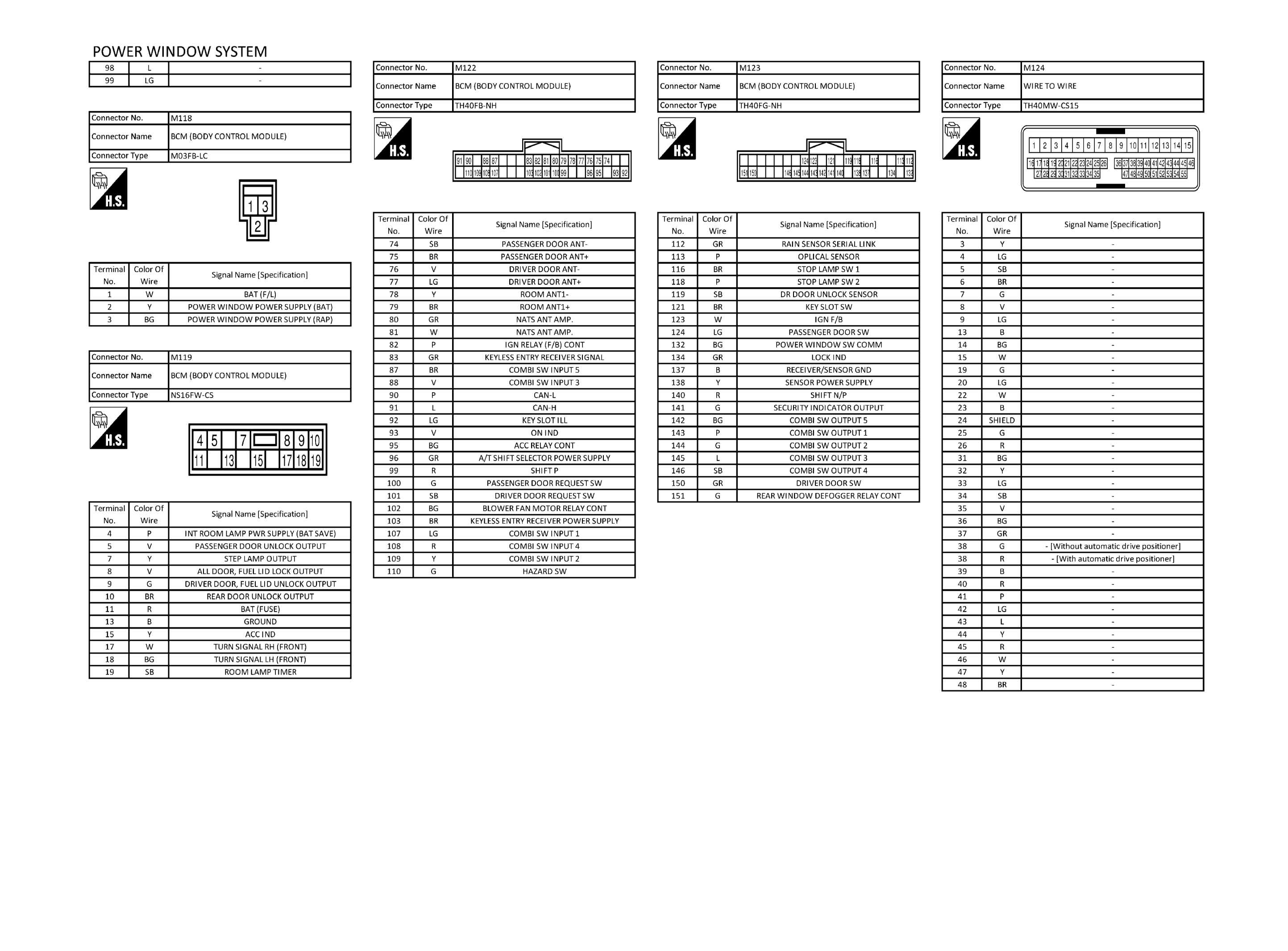

GNSJRKWF0492GB-492

Courtesy of NISSAN NORTH AMERICA, INC.

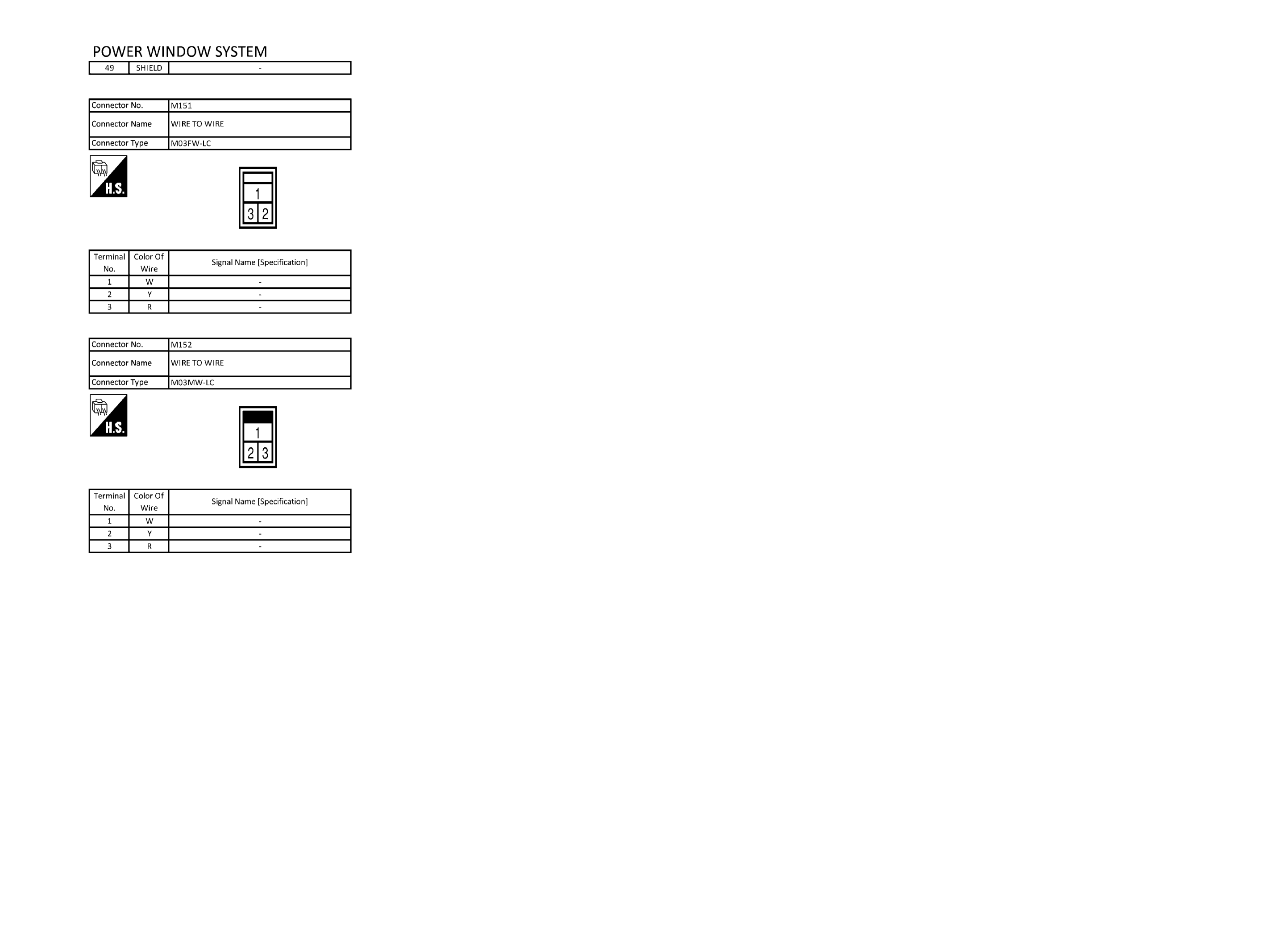

GNSJRKWF0493GB-493

Courtesy of NISSAN NORTH AMERICA, INC.
