Component Location

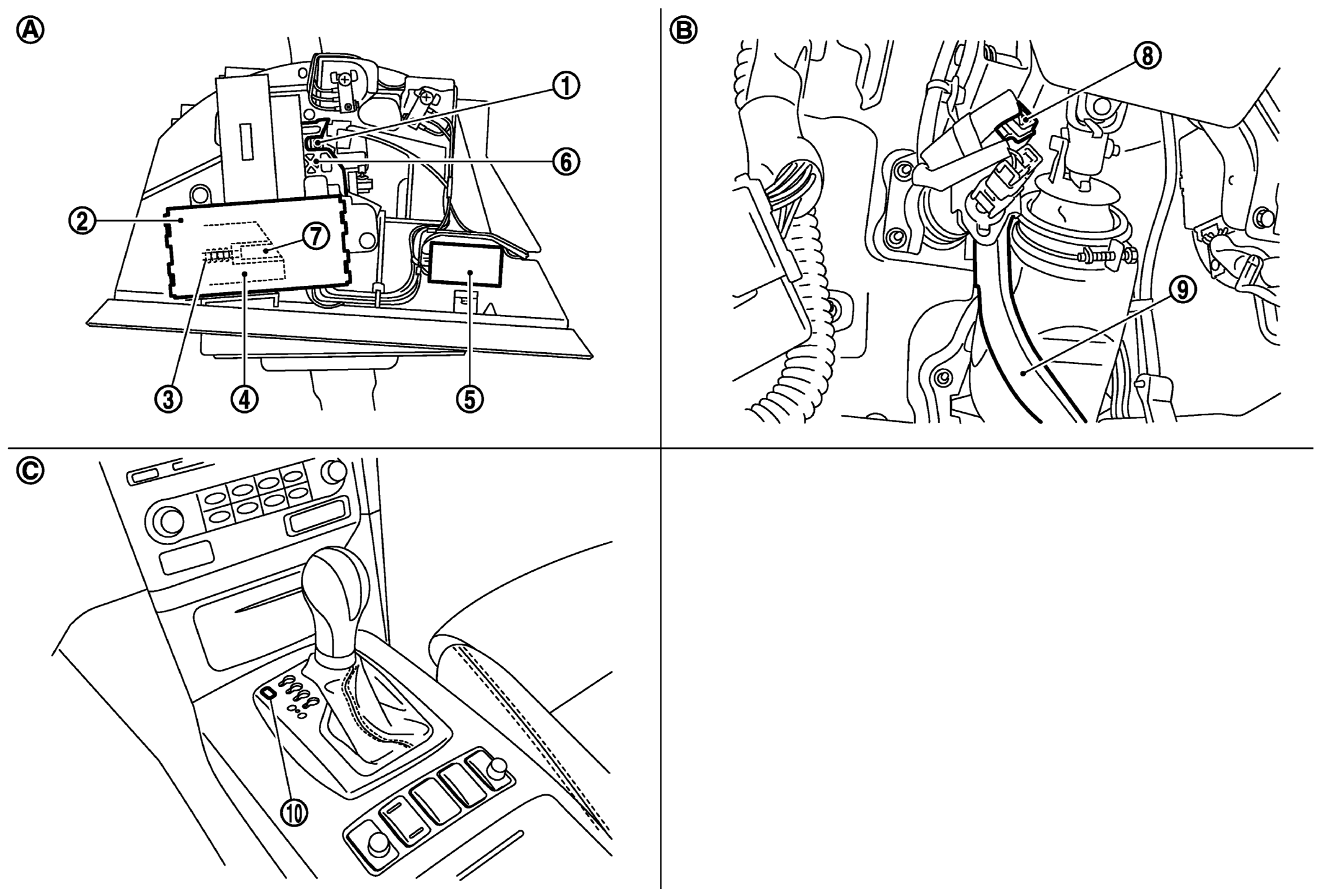

GNSJSDIA1461ZZ-461

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Position pin	2.	Shift lock unit	3.	Shift lock solenoid
4.	Slider A	5.	A/T shift selector connector	6.	Lock plate
7.	Slider B	8.	Stop lamp switch	9.	Brake pedal
10.	Shift lock cover *
A.	A/T shift selector assembly	B.	Brake pedal, upper	C.	Center console

*: Shift lock release button becomes operative by removing shift lock cover.
