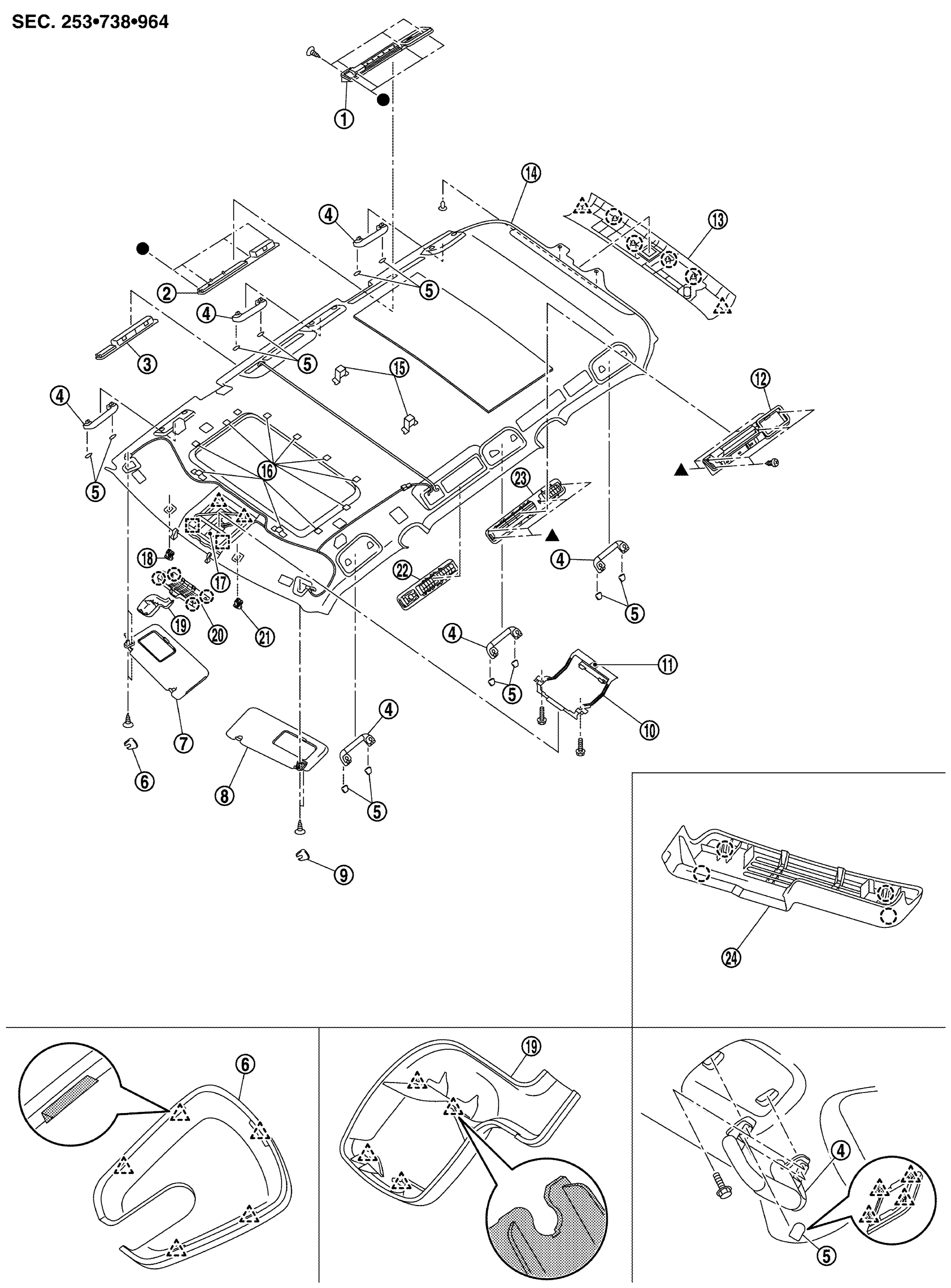

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear ventilator grille RH	2.	Rear ventilator garnish B RH	3.	Rear ventilator garnish A RH
4.	Assist grip	5.	Assist grip cap	6.	Sun visor cover RH
7.	Sun visor assembly RH	8.	Sun visor assembly LH	9.	Sun visor cover LH
10.	Map lamp bracket	11.	Dual lock fastener	12.	Rear ventilator grille LH
13.	Roof garnish	14.	Headlining assembly	15.	Dual lock fastener
16.	Dual lock fastener	17.	Map lamp assembly	18.	Sum visor holder RH
19.	Rain sensor cover	20.	Front camera finisher	21.	Sum visor holder LH
22.	Rear ventilator garnish A LH	23.	Rear ventilator garnish B LH	24.	Front camera finisher (with LDP/LDW)
	: Clip
	: Pawl
	: Metal clip
, : Indicates that the part is connected at points with same symbol in actual vehicle.
