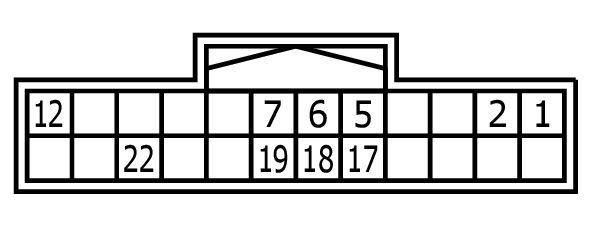

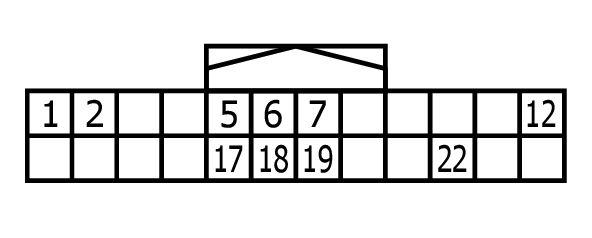

ADAS Control Unit Connector End View (B52)
Connector Types:
TH24FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
L |
CAN-H |
| 2 |
P |
CAN-L |
| 5 |
B |
GROUND |
| 6 |
L |
ITS COMM-H |
| 7 |
Y |
ITS COMM-L |
| 12 |
W/G |
IGNITION |
| 17 |
R |
BRAKE HOLD RLY DRIVE SIGNAL |
| 18 |
V/W |
WARNING SYSTEMS SW |
| 19 |
LG/B |
WARNING SYSTEMS ON IND |
| 22 |
O |
BCI SW |
