BCM (Body Control Module) Connector End View (M69)

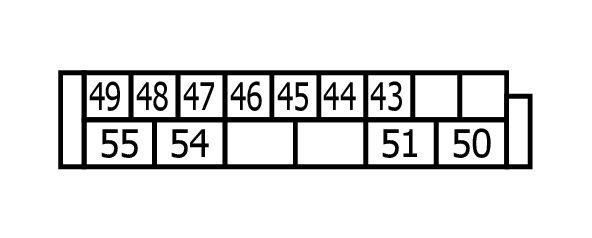

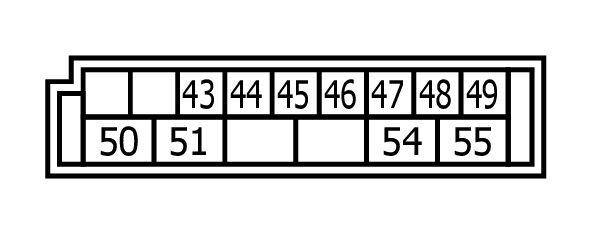

Connector Types: FEA09FB-FHA6-SA
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 43 | Y/L | BK DOOR SW |
| 44 | G/W | REAR WIPER STOP POSITION |
| 45 | W | PASSENGER DOOR SW |
| 46 | GR | REAR RH DOOR SW |
| 47 | GR/R | DRIVER DOOR SW |
| 48 | O | REAR LH DOOR SW |
| 49 | BR/Y | LUGGAGE ROOM LAMP CONT |
| 50 | B/Y | REMOTE ENGINE START |
| 51 | W/R | BACK DOOR REQ SW |
| 54 | L | REAR WIPER OUTPUT |
| 55 | G | REAR DOOR UNLK OUTPUT |
