BCM (Body Control Module) Connector End View (M70)

Connector Types:  FEA09FW-FHA6-SA

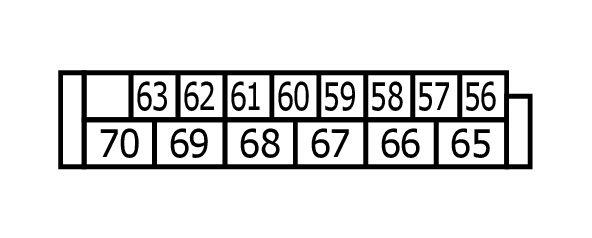

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

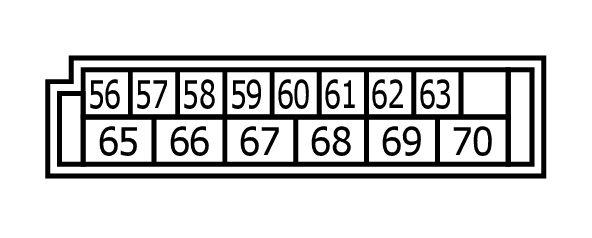

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
56	W/R	INT ROOM LAMP PWR SPLY
57	LG	BAT (FUSE)
58	R/W	SHOCK DETECT SENS
59	G	PASSENGER DOOR UNLK OUTPUT
60	G	TURN SIG LH OUTPUT (SIDE, REAR)
61	G/Y	TURN SIG RH OUTPUT (SIDE, REAR)
62	R	STEP LAMP CONT
63	BR	ROOM LAMP TIMER CONT
65	R	ALL DOOR LOCK OUTPUT
66	V	DR DOOR, FUEL LID UNLK OUTPUT
67	B	GND
68	Y	PW PWR SPLY (IGN)
69	W	PW PWR SPLY (BAT)
70	Y	BAT (F/L)
