Exploded View With Torque Specifications: Disassembly

Type: A002TX1491

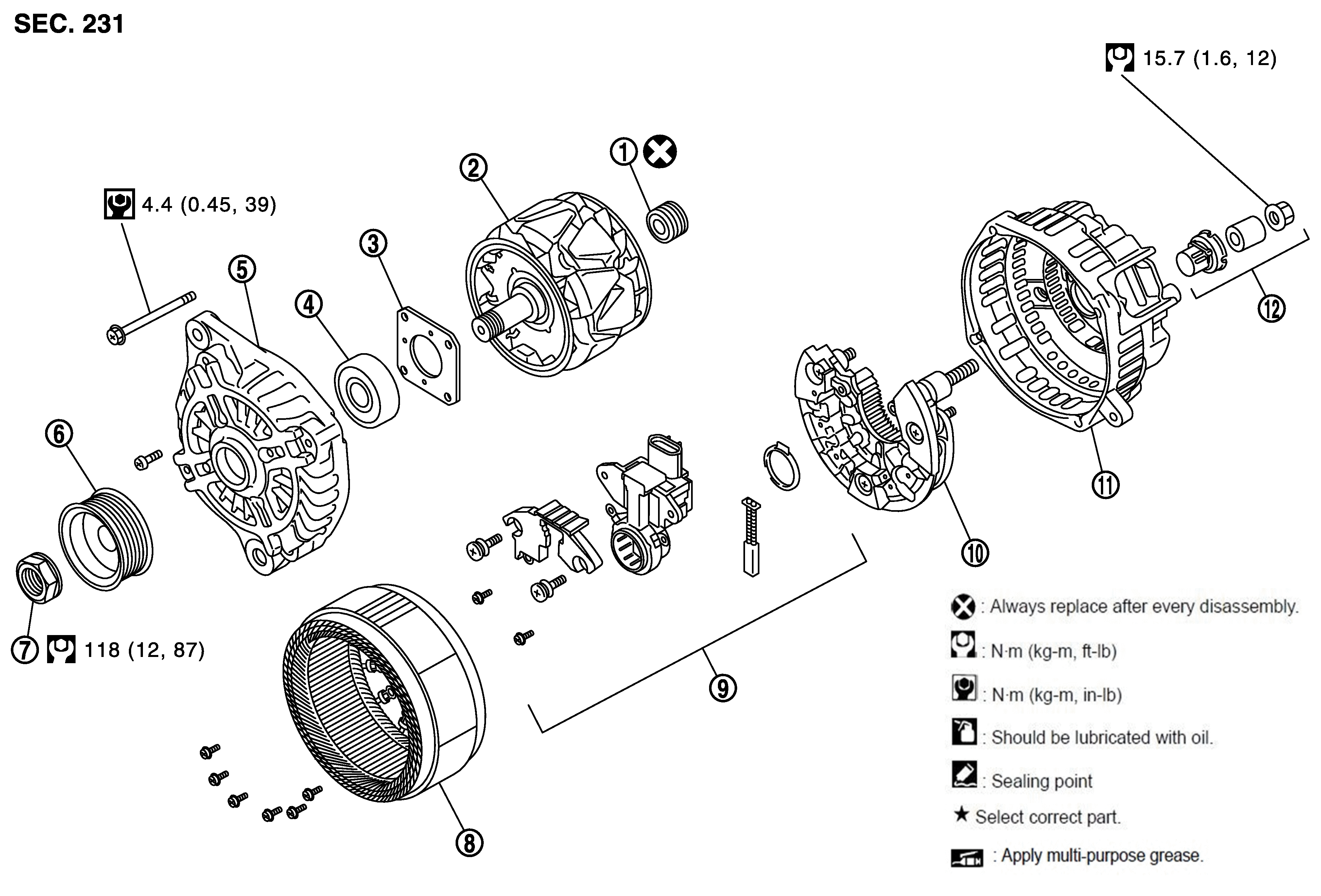

Fig 1: Rotor Assembly Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear bearing	2.	Rotor assembly	3.	Retainer
4.	Front bearing	5.	Front bracket assembly	6.	Pulley
7.	Pulley nut	8.	Stator assembly	9.	IC voltage regulator assembly
10.	Diode assembly	11.	Rear bracket assembly	12.	Terminal set
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
