Exploded View With Torque Specifications

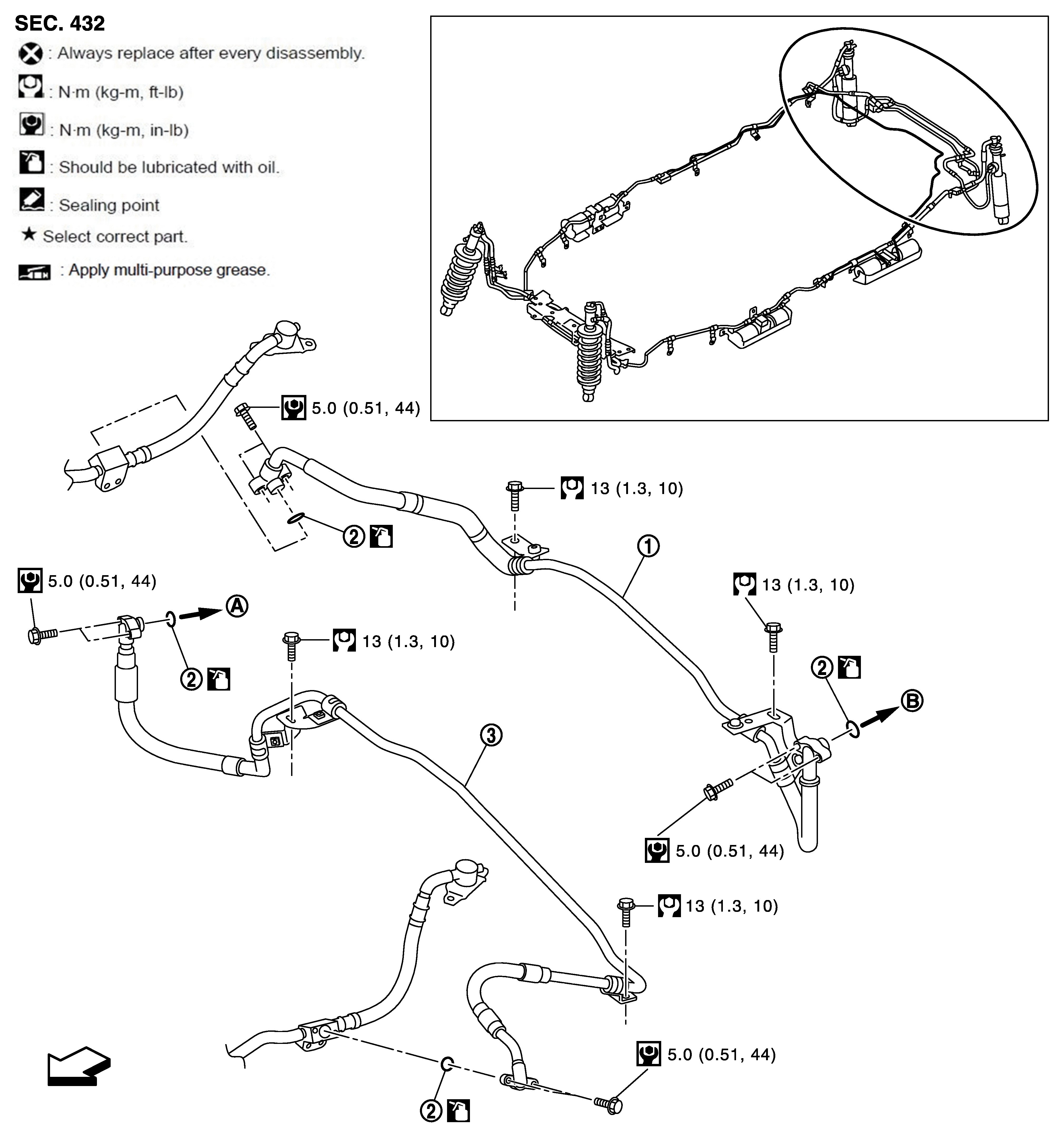

Fig 1: Rear Tube Assembly Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear tube assembly A	2.	O-ring	3.	Rear tube assembly B
:	Vehicle front
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
:	Apply genuine NISSAN hydraulic suspension fluid
