QX80 Limited
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (With VDC)
>>
System Description
>>
System
>>
System Description
>>

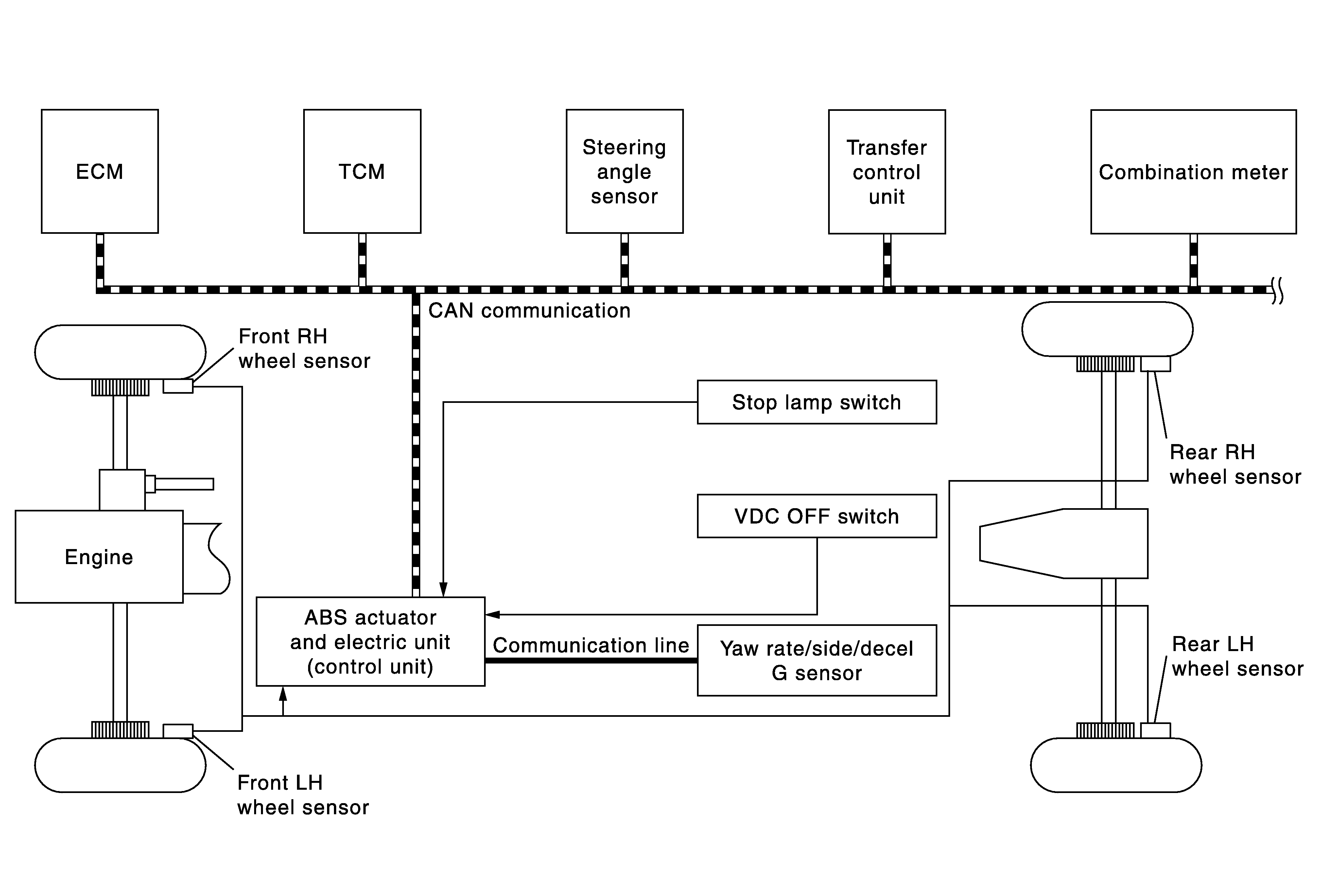

System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram
NOTE:
Transfer control unit is applied to models with 4WD system.
Courtesy of NISSAN NORTH AMERICA, INC.
