Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When replacing chassis control module, configuration of chassis control module is required. Refer to Work Procedure .

NOTE: If the chassis control module is replaced, user registration information is erased, and all setting items for Infiniti InTuition related parts are erased.

Remove the parking brake pedal assembly. Refer to Removal and Installation .

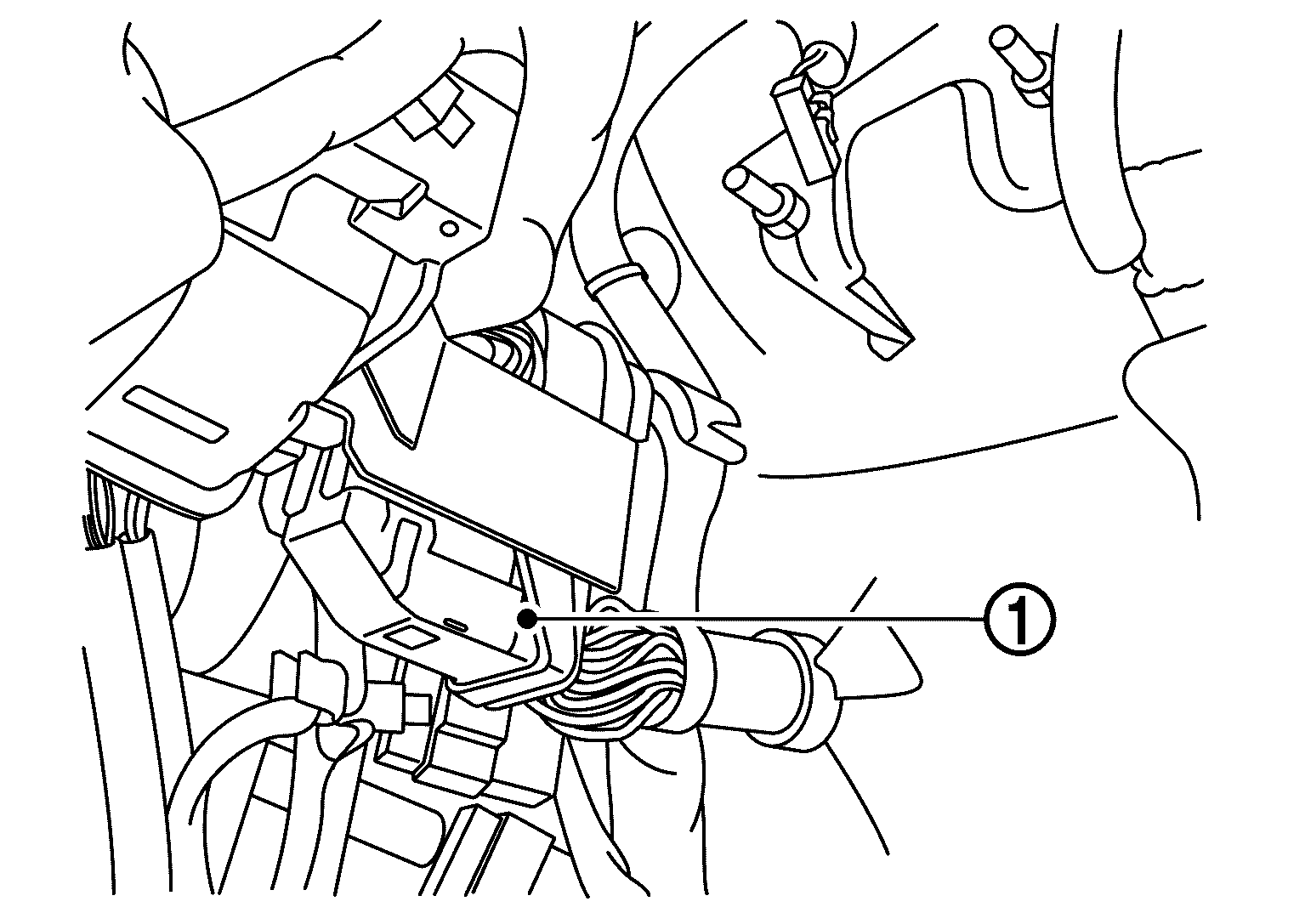

Separate the harness connector .

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the chassis control module.
CAUTION: Never drop the chassis control module.
