Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

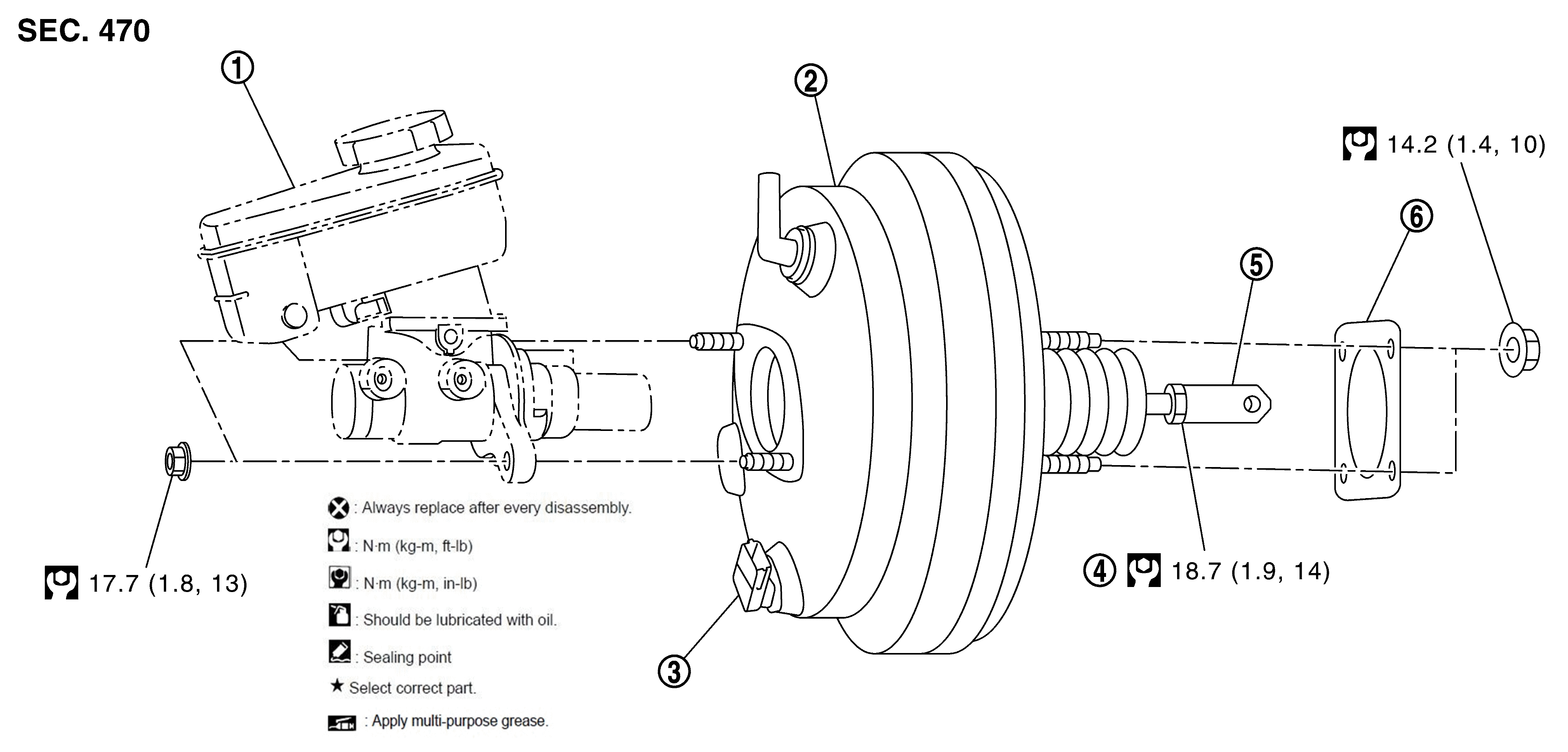

Fig 1: Brake Booster With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Master cylinder assembly	Brake booster	Vacuum sensor
	Lock nut	Clevis	Gasket
: N.m (kg-m, ft-lb)
