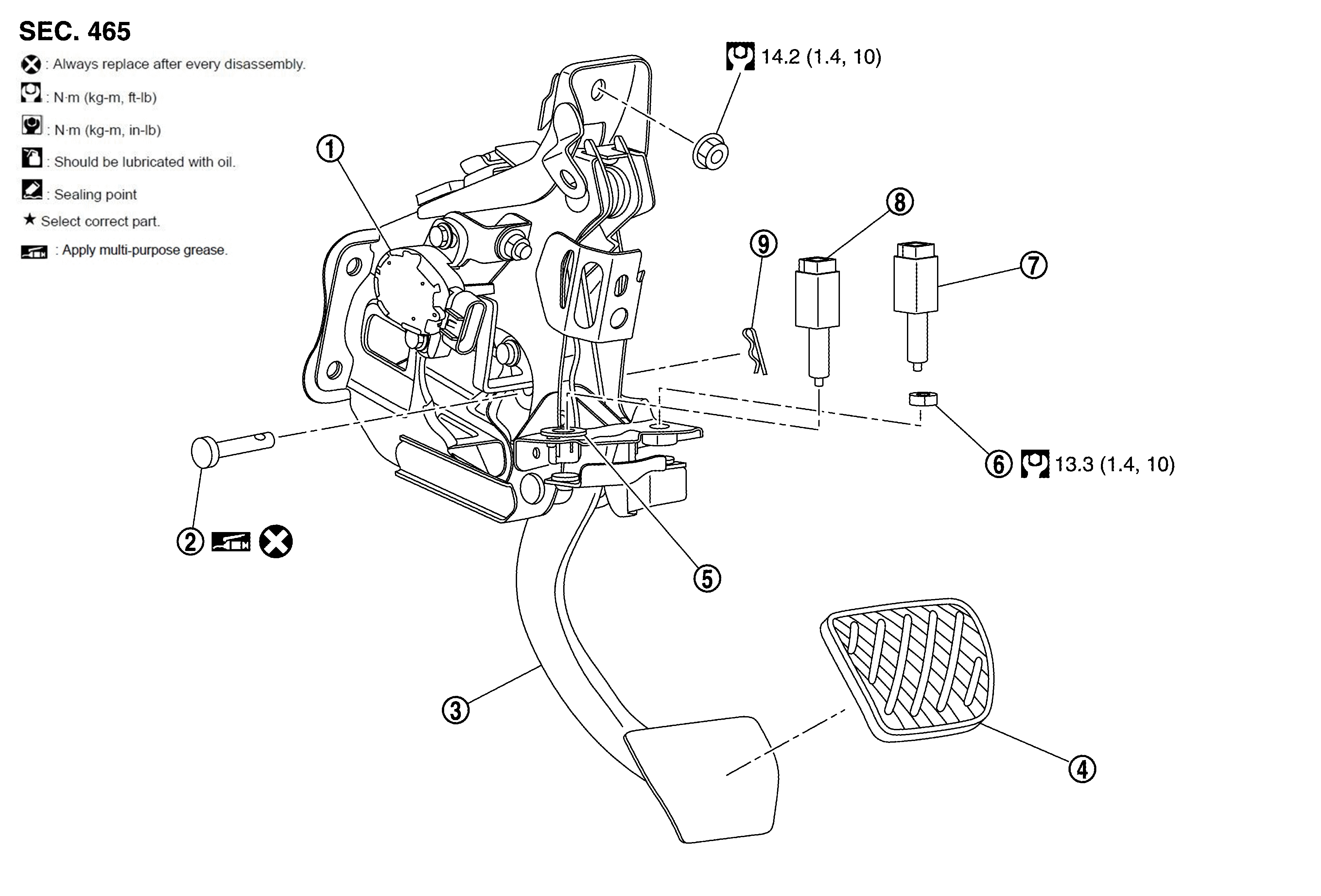

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Stroke sensor (With pre-crash seat belt)
|
|
Clevis pin
|
|
Brake pedal assembly
|
|
|
Brake pedal pad
|
|
Clip
|
|
Lock nut
|
|
|
Brake pedal position switch
|
|
Stop lamp switch
|
|
Snap pin
|
|
: Apply multi-purpose grease.
|
|
: N.m (kg-m, ft-lb)
|
|
: Always replace after every disassembly.
|
