Console Finisher Assembly

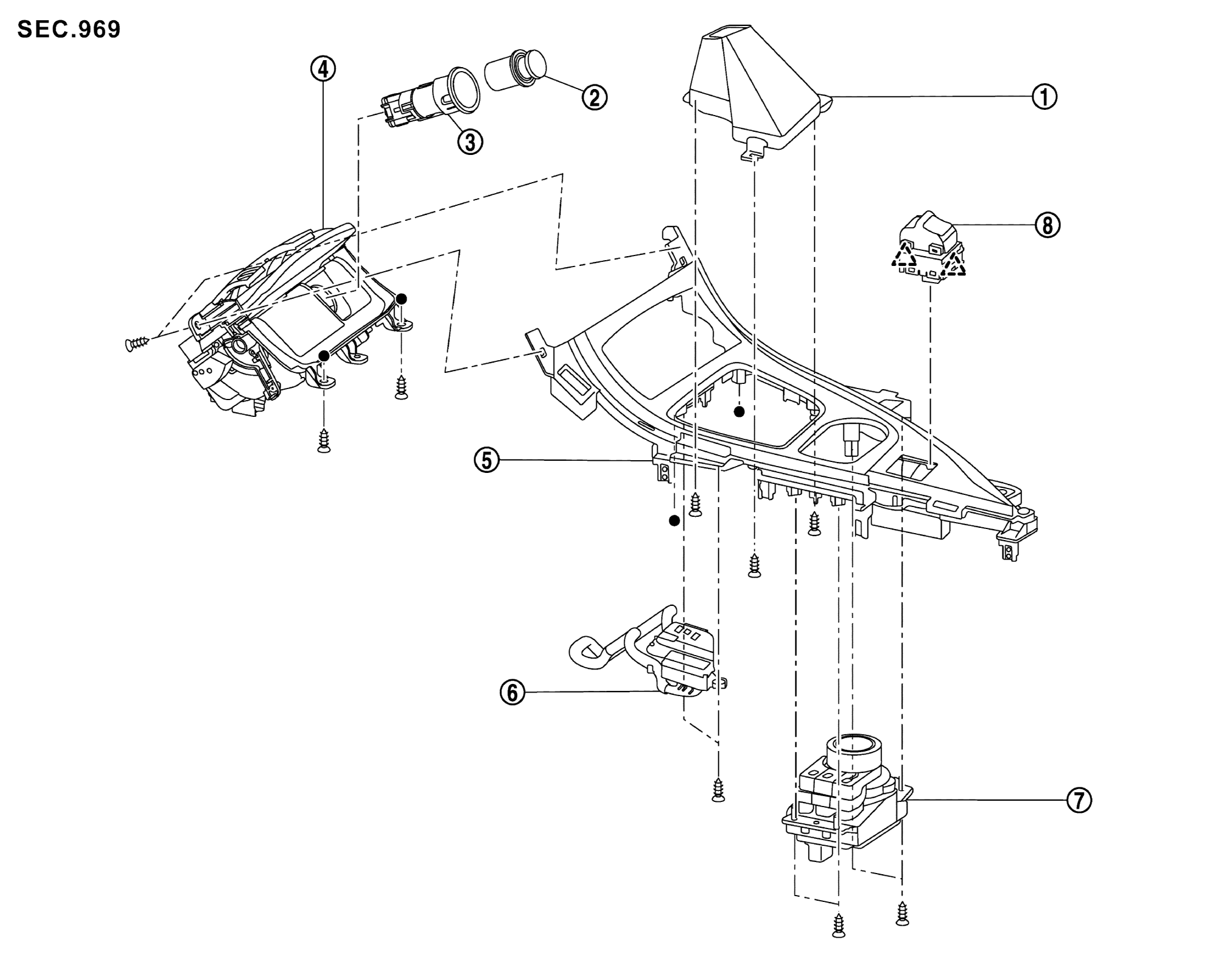

GNSJMJIB1748ZZ-748Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Console Finisher Boot WHITE-2 Cap WHITE-3 Power Socket Assembly
WHITE-4 Console Front Pocket Assembly WHITE-5 Console Finisher Assembly WHITE-6 Selector Lever Position Indicator
WHITE-7 Multifunction Switch WHITE-8 Drive Mode Select Switch
SANKAKU-H : Pawl
CIR-B : Indicates that the part is connected at points with same symbol in actual vehicle.
