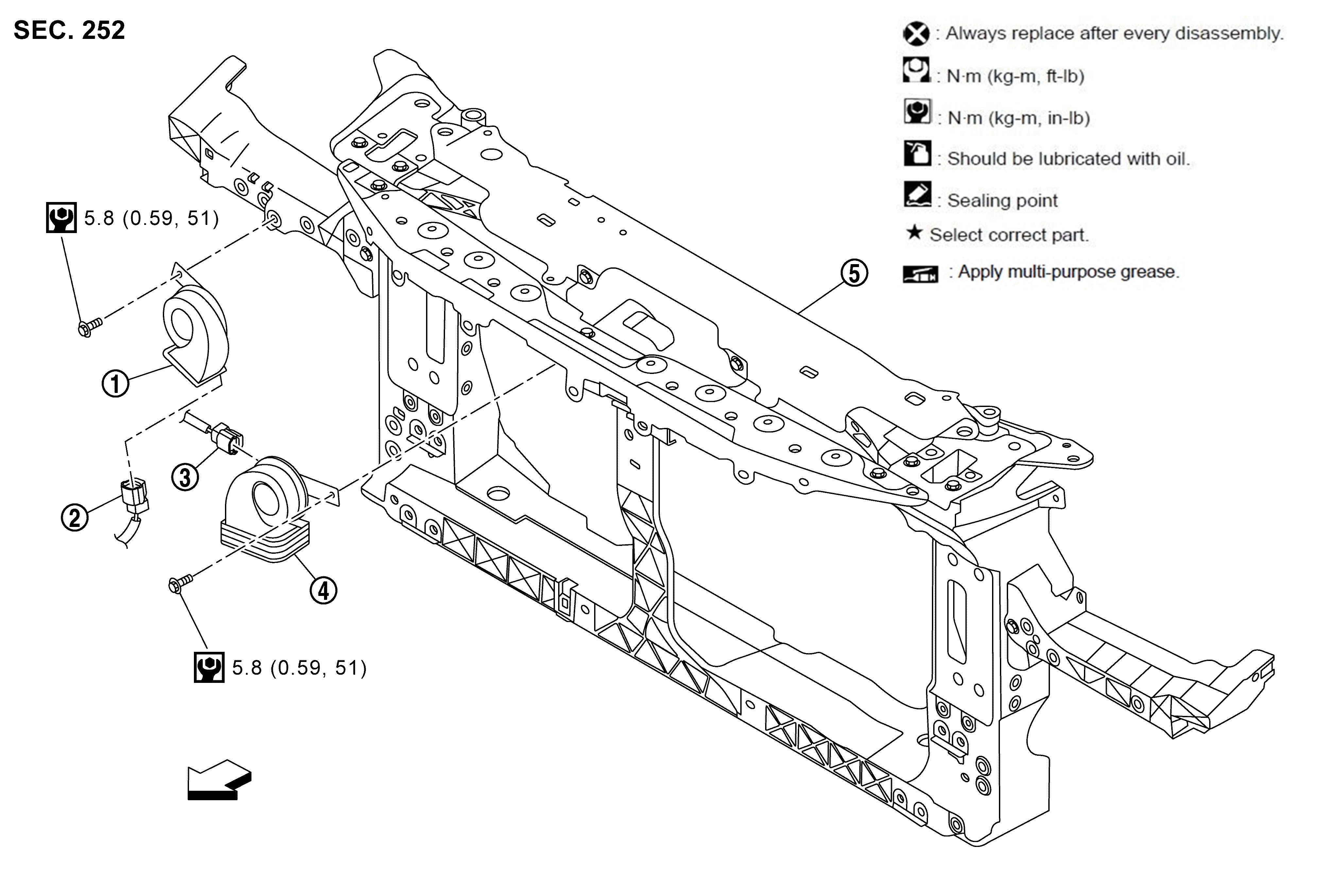

Exploded View With Torque Specifications

GNSJMLIA7566GB-566Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Horn (Low) WHITE-2 Horn (Low) Connector WHITE-3 Horn (High) Connector
WHITE-4 Horn (High) WHITE-5 Radiator Core Support
ARROW : Vehicle Front
BOLTIN : N•m (kg-m, in-lb)
