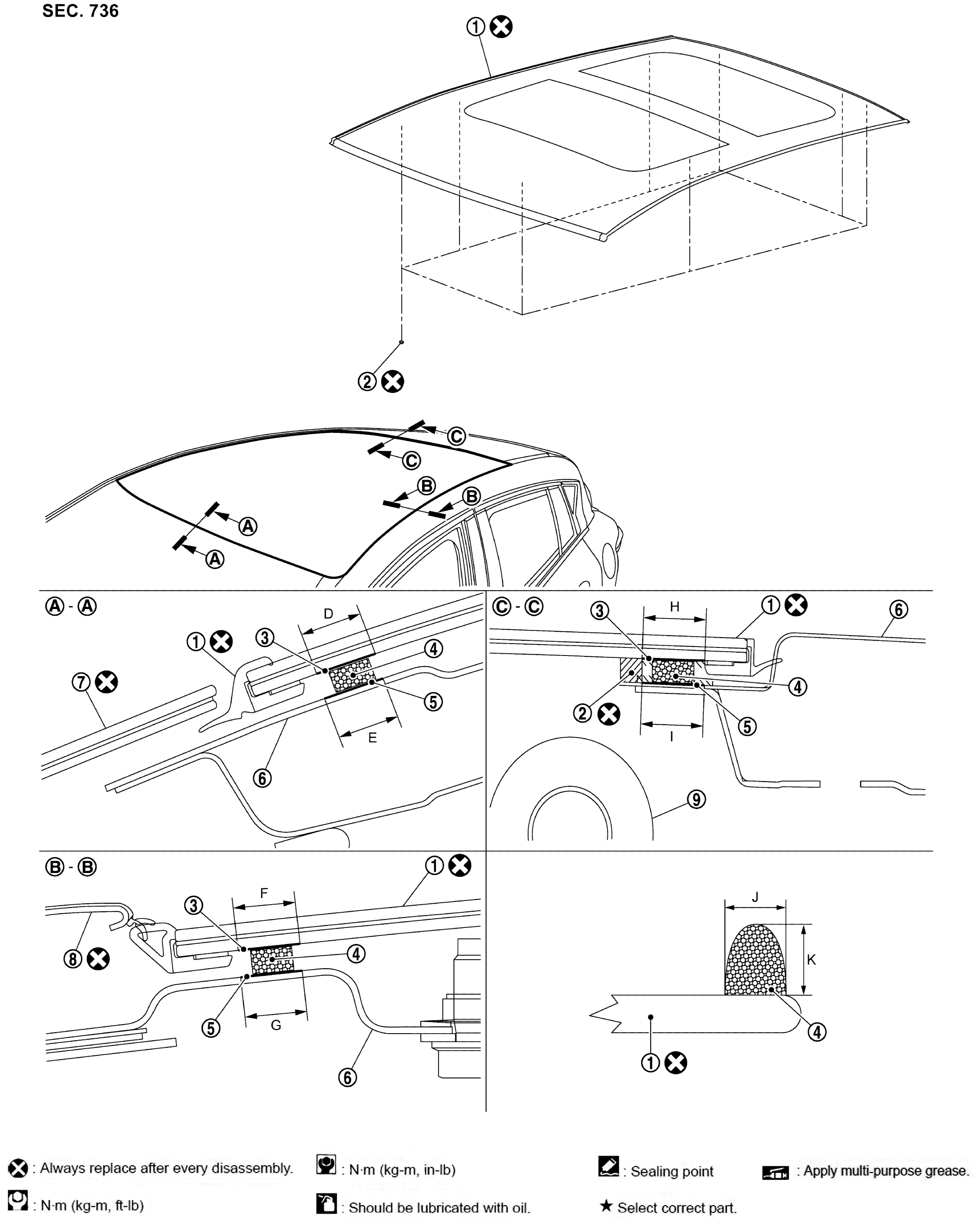

Exploded View With Torque Specifications
| Glass roof assembly | Glass roof spacer | Glass primer | |||
| Adhesive | Painted surface primer | Roof panel | |||
| Windshield glass | Roof side molding | Sunshade unit assembly | |||
| : Always replace after every disassembly. | |||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| J | K | ||||
| Glass roof - Roof panel | D | 15.0 (0.59) |
7.0 (0.276) |
12.0 (0.472) |
|
| E | - | - | |||
| F | 7.0 (0.276) |
12.0 (0.472) |
|||
| G | - | - | |||
| H | 7.0 (0.276) |
12.0 (0.472) |
|||
| I | - | - | |||
