With Glass Roof And Front Camera

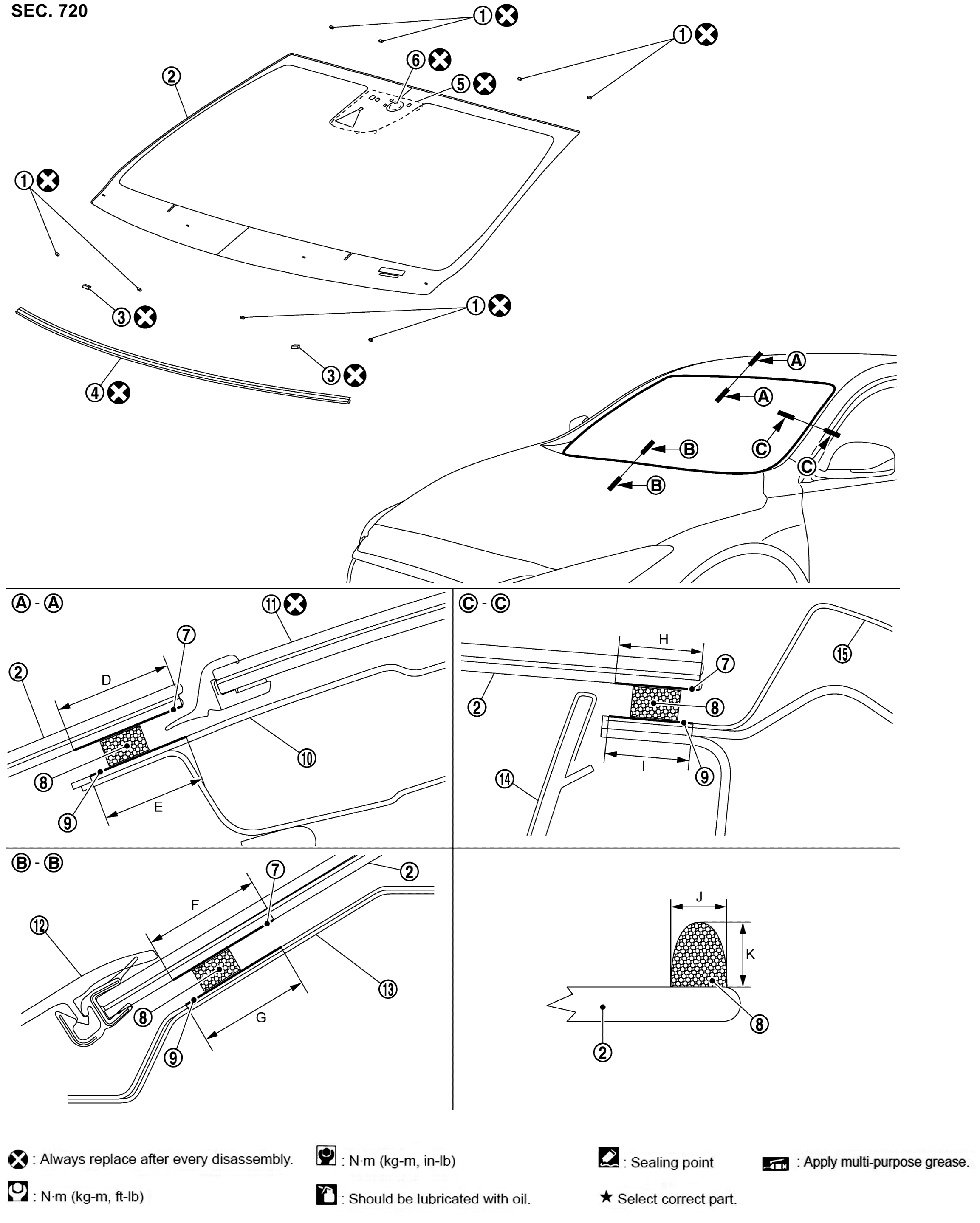

GNSJMKIB8243ZZ-243Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Windshield glass spacer WHITE-2 Windshield glass WHITE-3 Spacer
WHITE-4 Windshield glass molding WHITE-5 Electric unit bracket WHITE-6 Inside mirror base
WHITE-7 Glass primer WHITE-8 Adhesive WHITE-9 Painted surface primer
WHITE-10 Roof panel WHITE-11 Glass roof WHITE-12 Cowl top cover
WHITE-13 Cowl top panel WHITE-14 Front pillar garnish WHITE-15 Body side outer panel
DISAS : Always replace after every disassembly.

Unit: mm (in)

Portion Primer range Adhesive range
J K
Windshield glass - Glass roof MARU-A-W -MARU-A-W D 22.0 - 25.0
(0.87 - 0.98)		 7.0
(0.276)		 12.0
(0.472)
E 20.0
(0.79)		 - -
Windshield glass - Cowl top panel MARU-B-W -MARU-B-W F 22.0 - 25.0
(0.87 - 0.98)		 7.0
(0.276)		 12.0
(0.472)
G 23.0
(0.91)		 - -
Windshield glass - Body side outer panel MARU-C-W -MARU-C-W H 16.0
(0.63)		 7.0
(0.276)		 12.0
(0.472)
I 15.0
(0.59)		 - -
