Exploded View

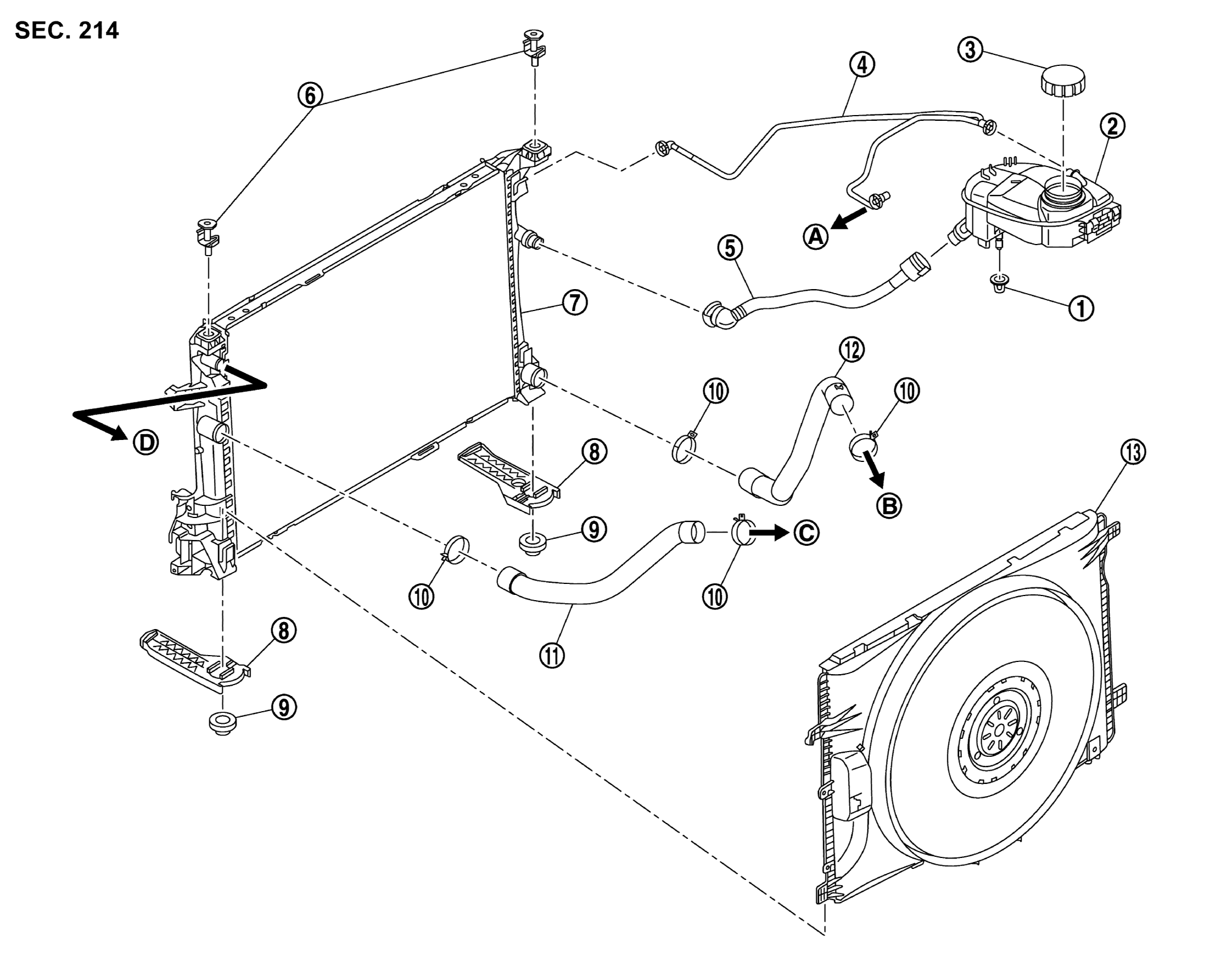

GNSJSBIA7371ZZ-371Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Mounting rubber WHITE-2 Reservoir tank WHITE-3 Reservoir tank cap
WHITE-4 Reservoir tank tube (return) WHITE-5 Reservoir tank hose WHITE-6 Upper holder
WHITE-7 Radiator WHITE-8 Holder WHITE-9 Mounting rubber
WHITE-10 Clamp WHITE-11 Coolant hose (upper) WHITE-12 Coolant hose (lower)
WHITE-13 Cooling fan assembly
MARU-A-W To cylinder head MARU-B-W To water pump MARU-C-W To thermostat
MARU-D-W To transaxle cooling module
