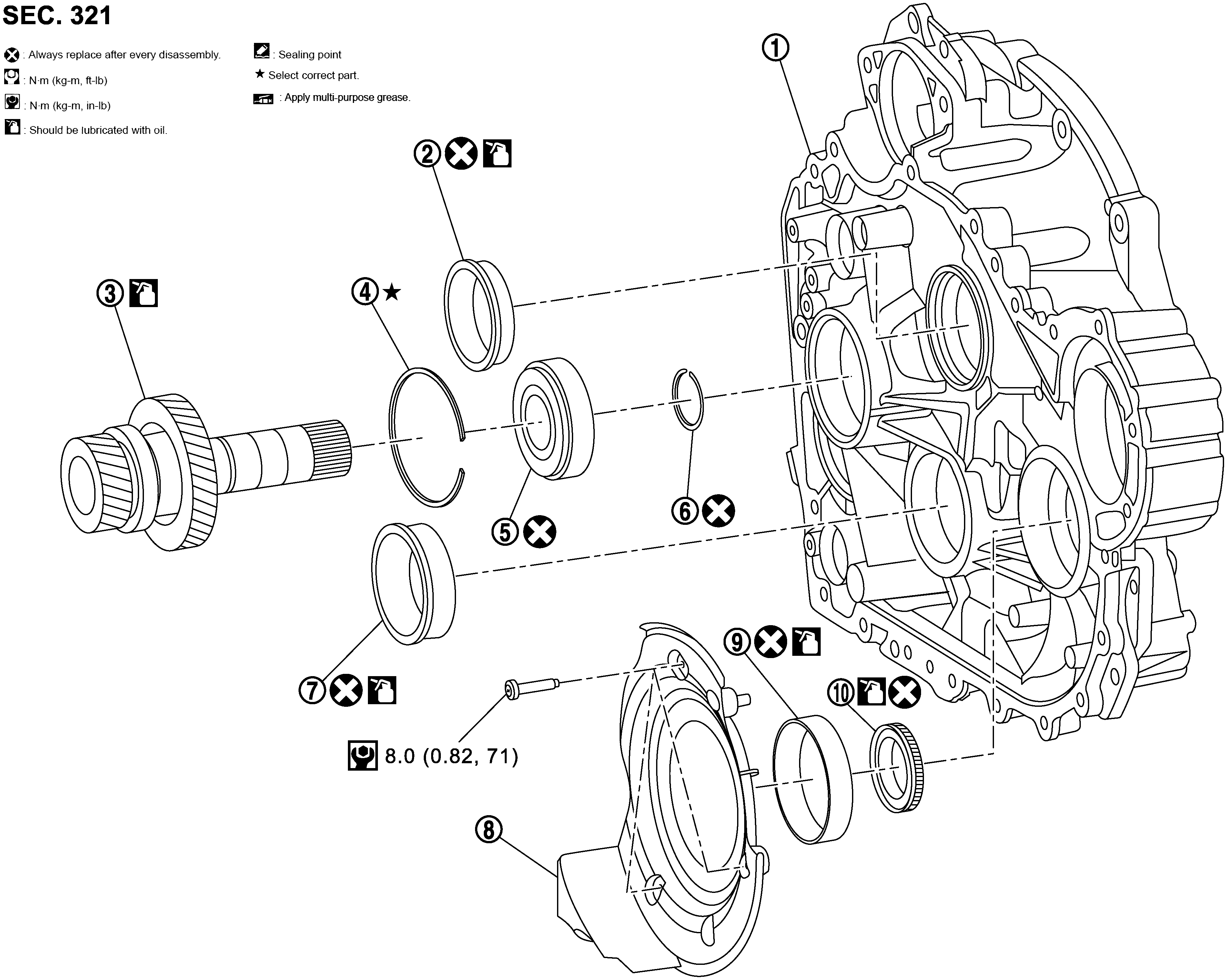

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

Clutch housing	Bearing	Hollow shaft
Lock ring	Ball bearing	Snap ring
Bearing	Cover	Bearing
Differential side oil seal
: Always replace after every disassembly.
: N•m (kg-m, in-lb)
: Apply transaxle fluid
: Select with proper thickness.
