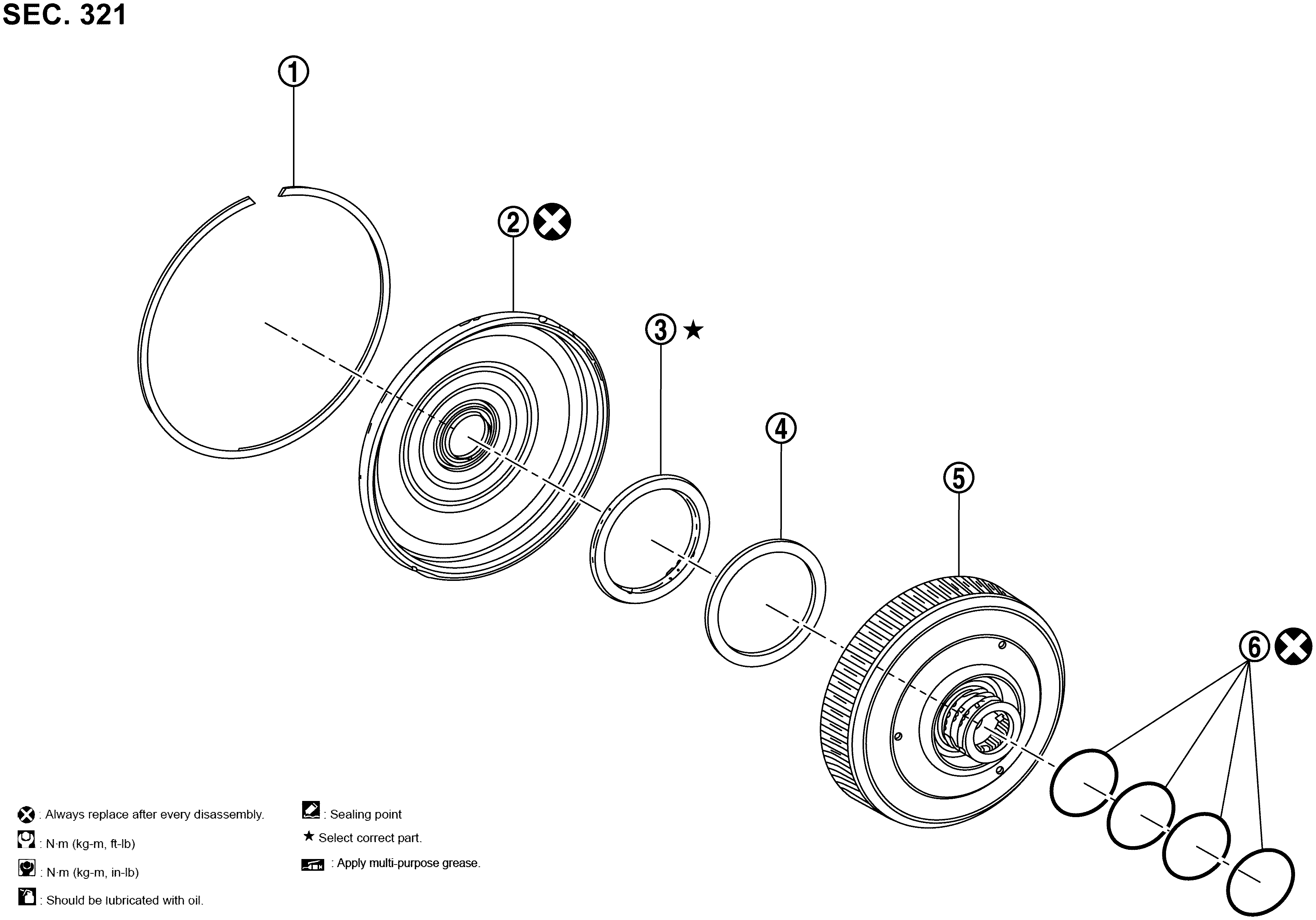

Exploded View

GNSJSDIA8933GB-933Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Snap ring WHITE-2 Cover WHITE-3 Shim
WHITE-4 Bearing WHITE-5 Dual clutch WHITE-6 Sealing ring
DISAS : Always replace after every disassembly.
STARF : Select with proper thickness.
