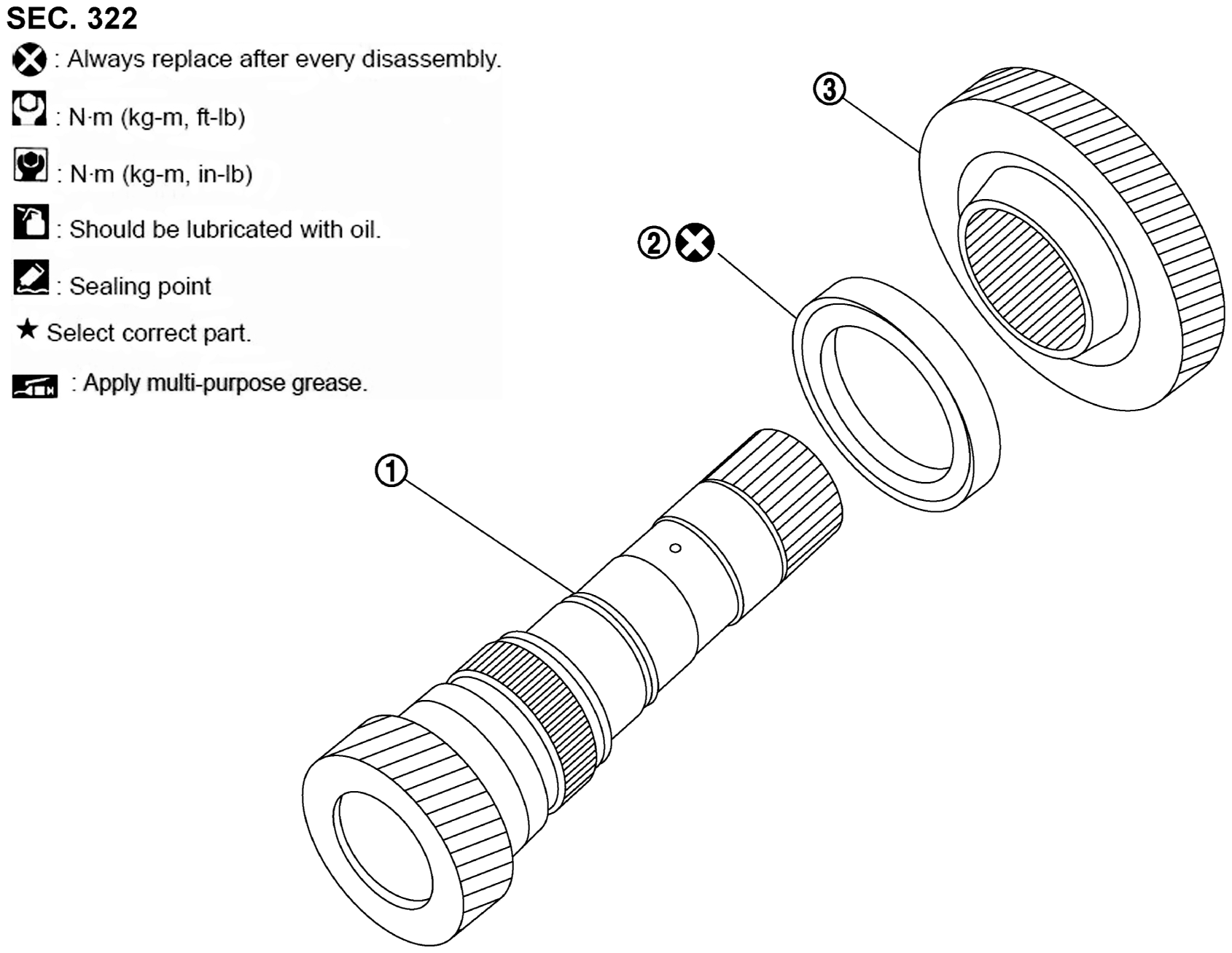

Exploded View

GNSJSDIA8936ZZ-936Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Hollow shaft WHITE-2 Sensor rotor WHITE-3 4th and 6th gear
DISAS : Always replace after every disassembly.
