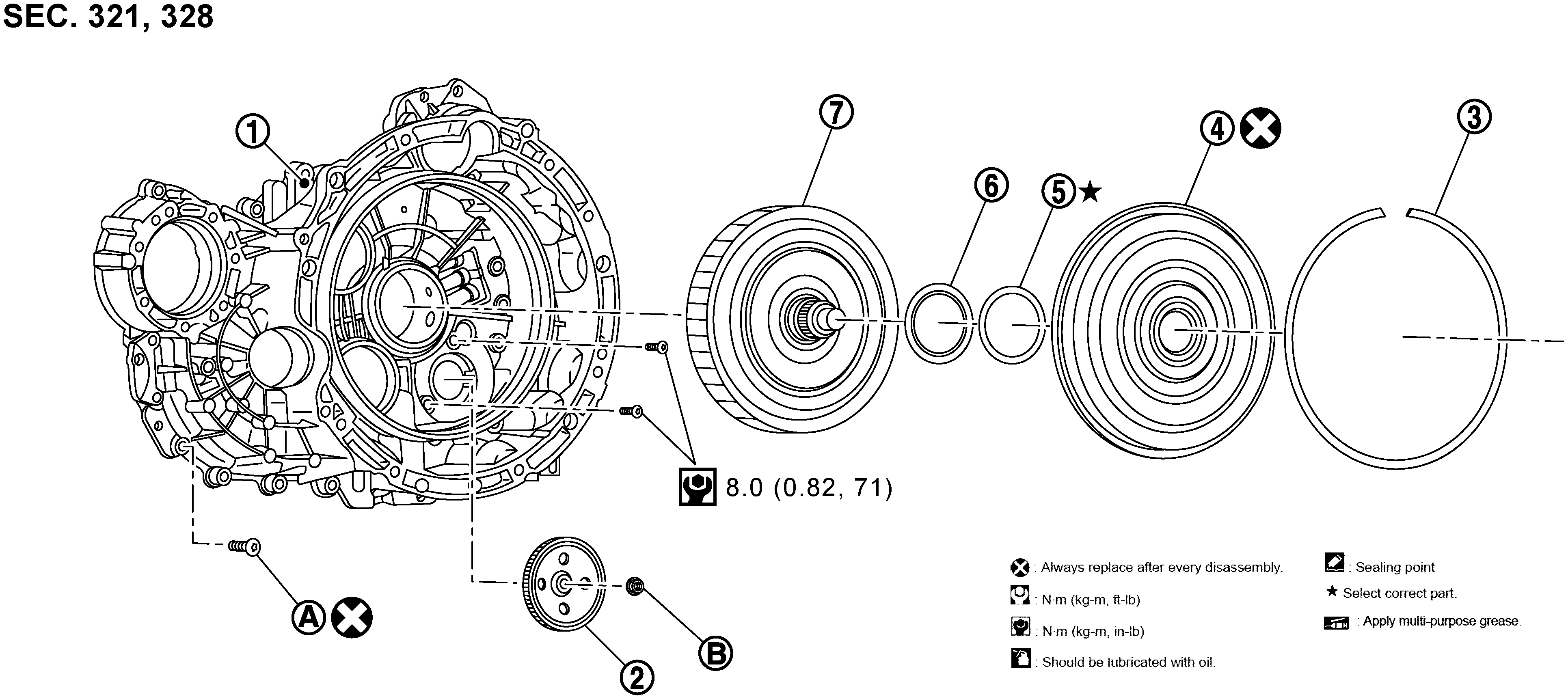

Clutch Housing Side

Courtesy of NISSAN NORTH AMERICA, INC.

Clutch housing	Oil pump gear	Snap ring
Cover	Shim	Bearing
Dual clutch
: Always replace after every disassembly.
: For the tightening torque, refer to DISASSEMBLY AND ASSEMBLY .
: For the tightening torque, refer to DISASSEMBLY AND ASSEMBLY .
: N•m (kg-m, in-lb)
: Select with proper thickness.
