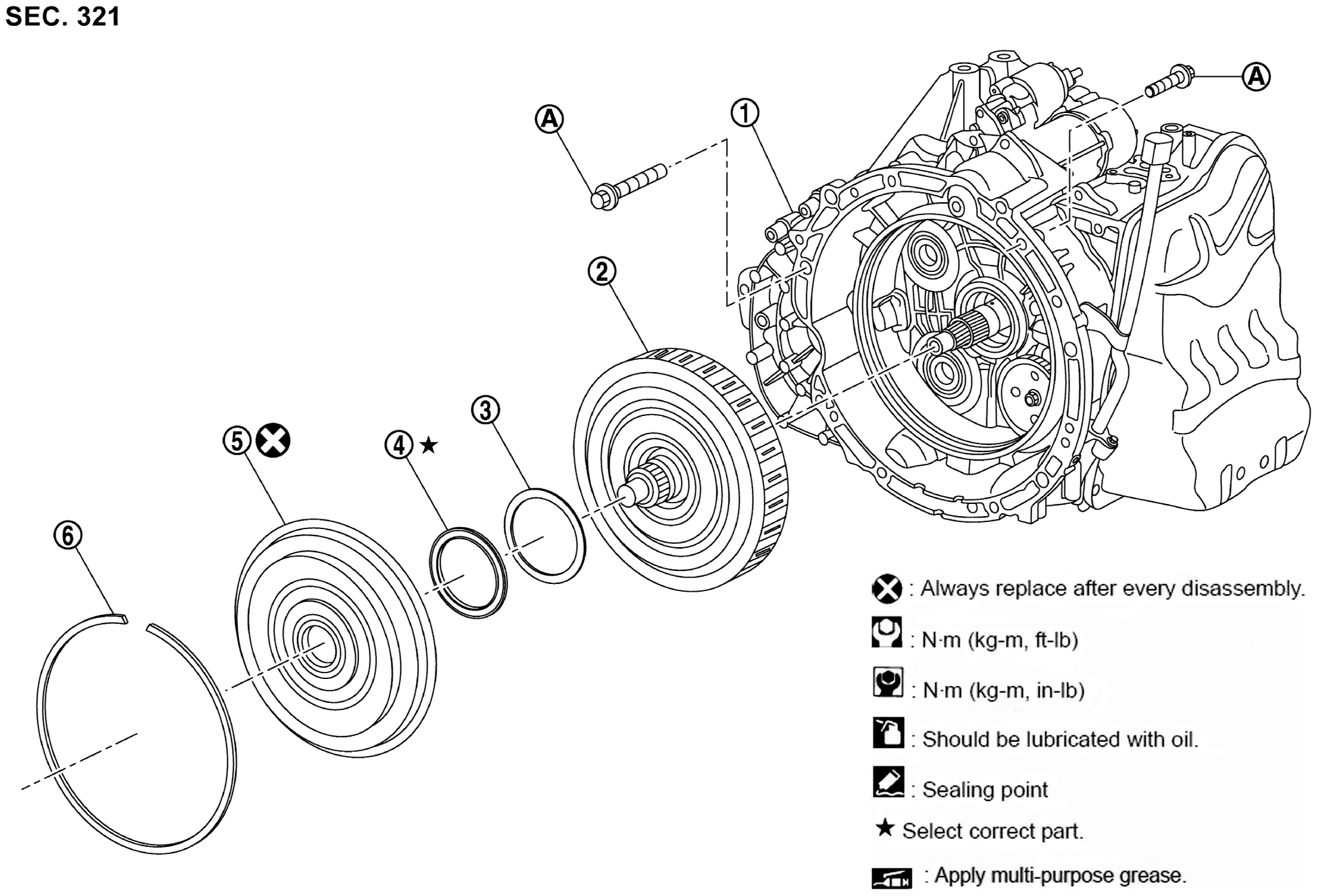

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

Transaxle assembly	Dual clutch	Bearing
Shim	Cover	Snap ring
: For the tightening torque, refer to REMOVAL AND INSTALLATION .
: Always replace after every disassembly.
: Select with proper thickness.
