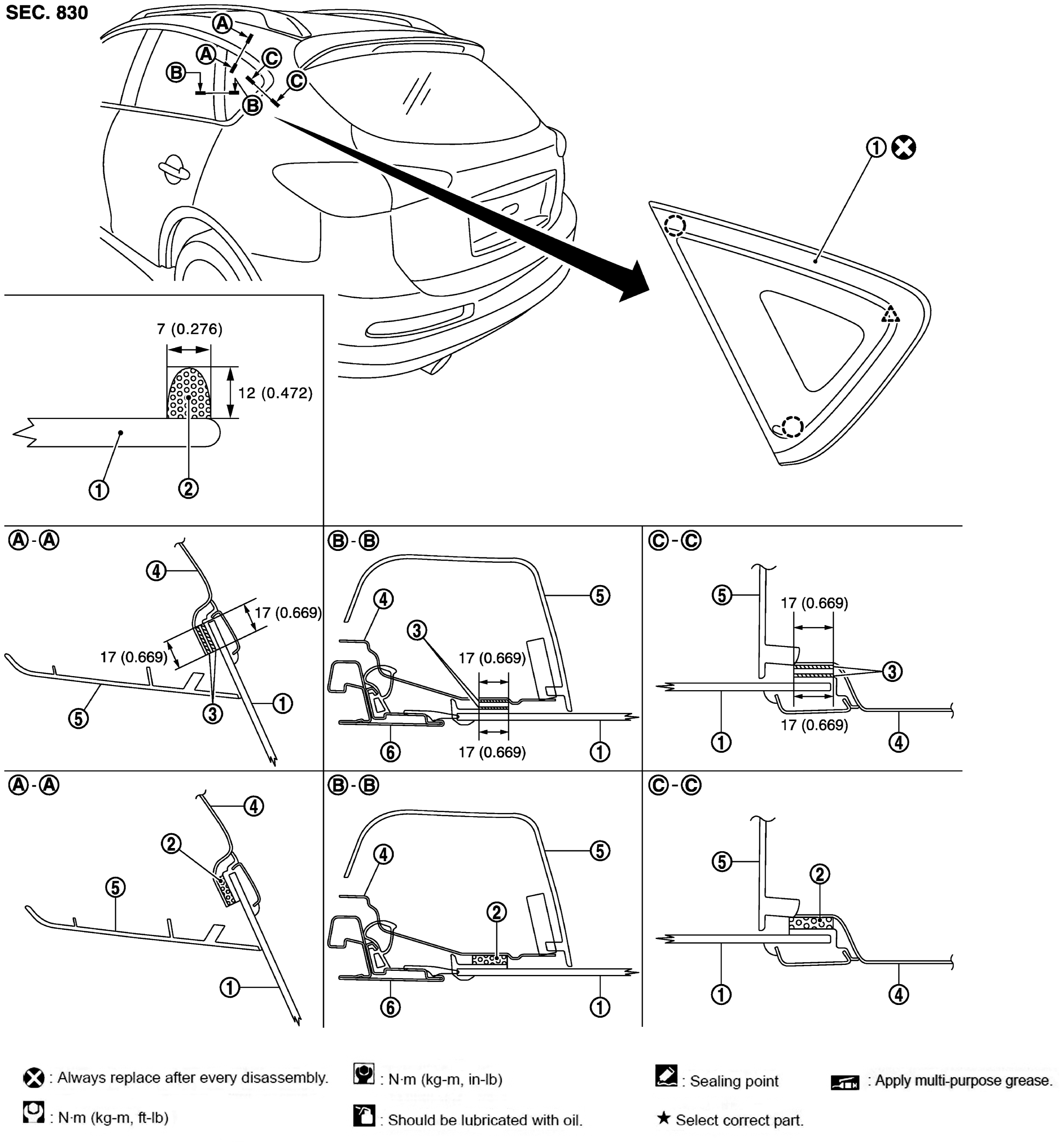

Exploded View With Torque Specifications

GNSJMKIA1942GB-942Courtesy of NISSAN NORTH AMERICA, INC.
1. Side window glass 2. Adhesive 3. Primer
4. Body side outer panel 5. Luggage side upper finisher 6. Door sash
MARU-H : Clip
SANKAKU-H : Pawl
Unit : mm (in)
DISAS : Always replace after every disassembly.
