Exploded View

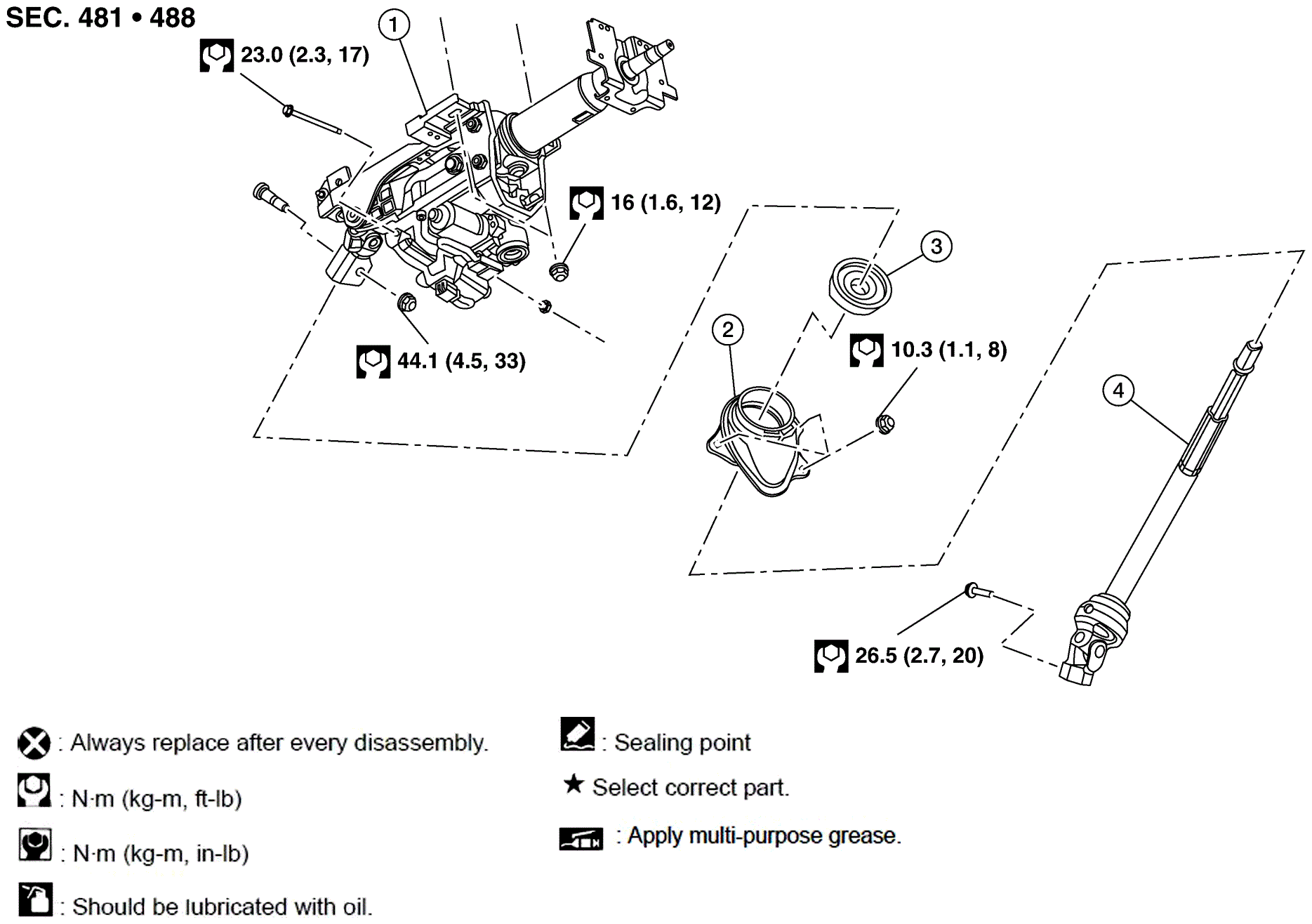

Fig 1: Steering Column With Torque Specifications
GNSAWGIA0299ZZ-299Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Hole cover 3. Lower boot
4. Steering intermediate shaft
