Wiring Diagram - Intelligent Key System/Engine Start Function

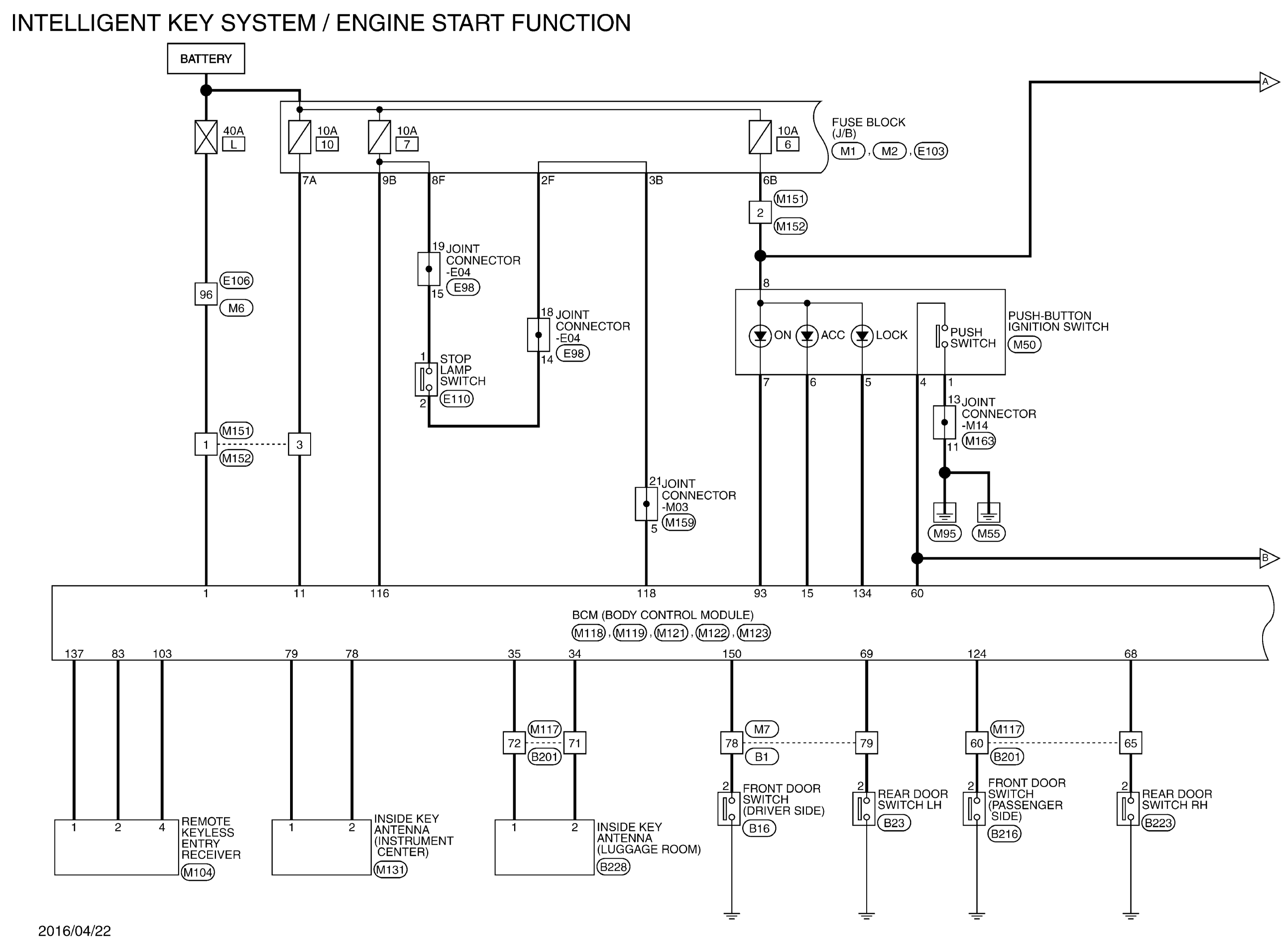

GNSJRKWG0660GB-660

Courtesy of NISSAN NORTH AMERICA, INC.

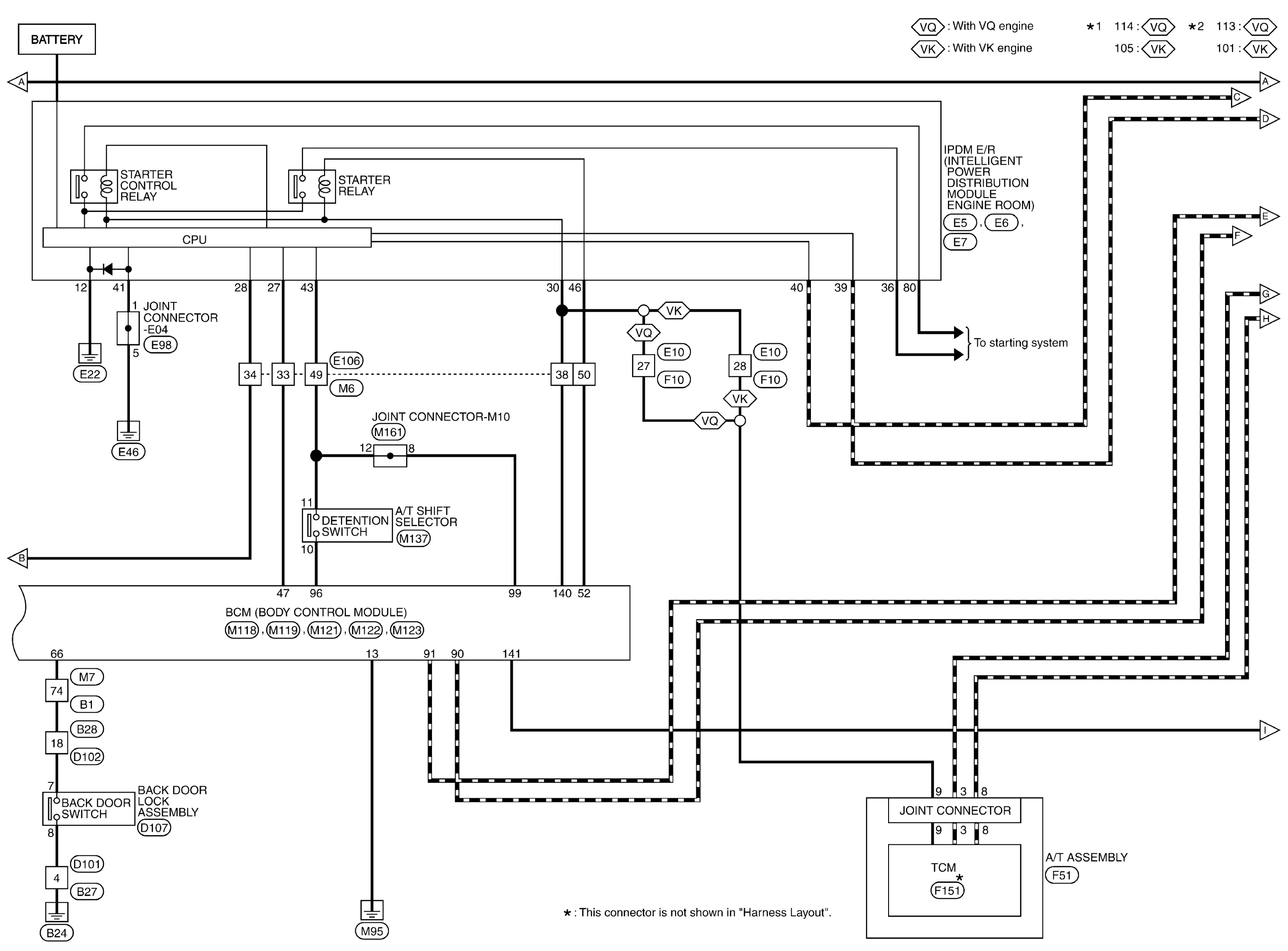

GNSJRKWG0661GB-661

Courtesy of NISSAN NORTH AMERICA, INC.

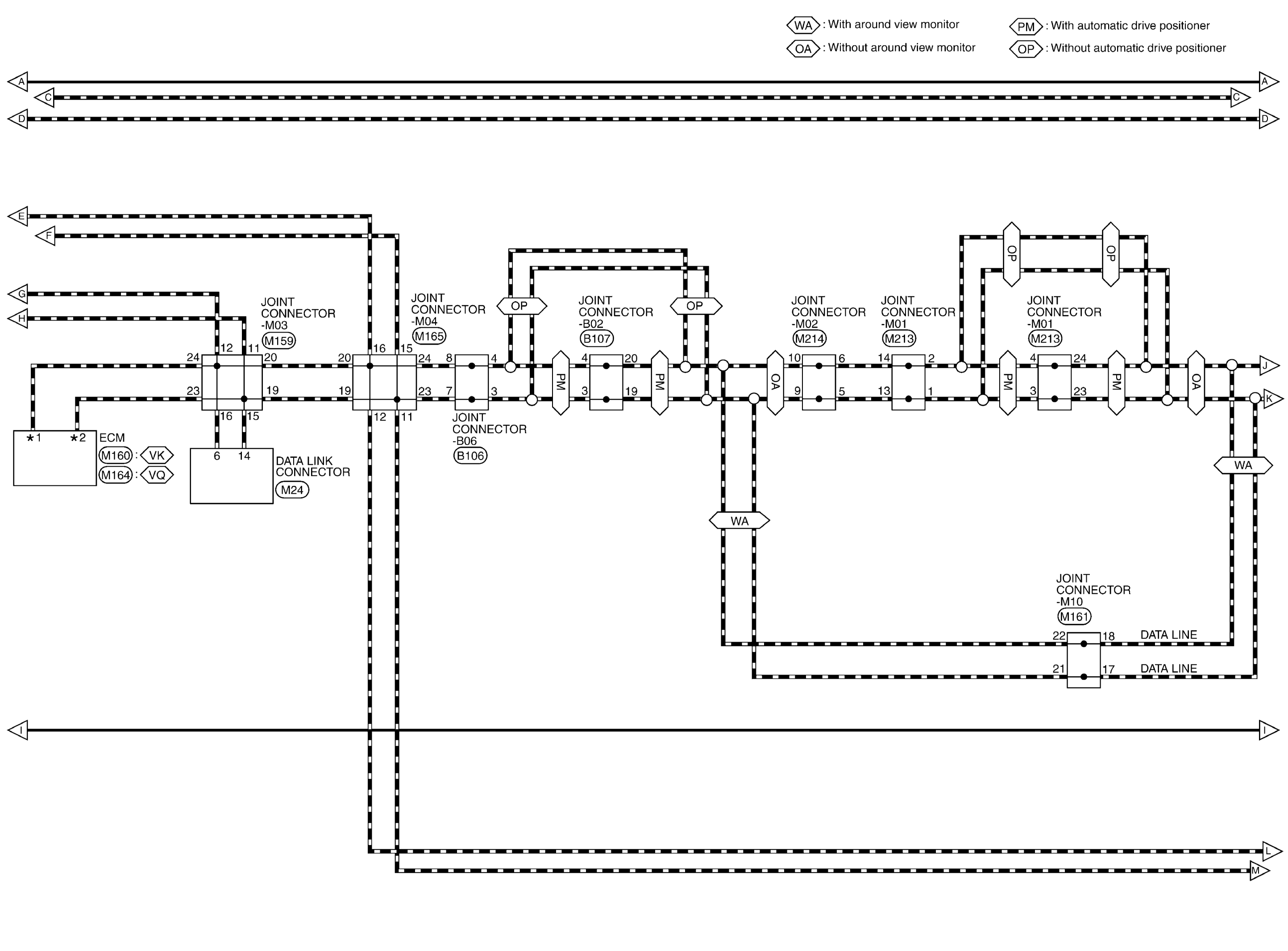

GNSJRKWG0662GB-662

Courtesy of NISSAN NORTH AMERICA, INC.

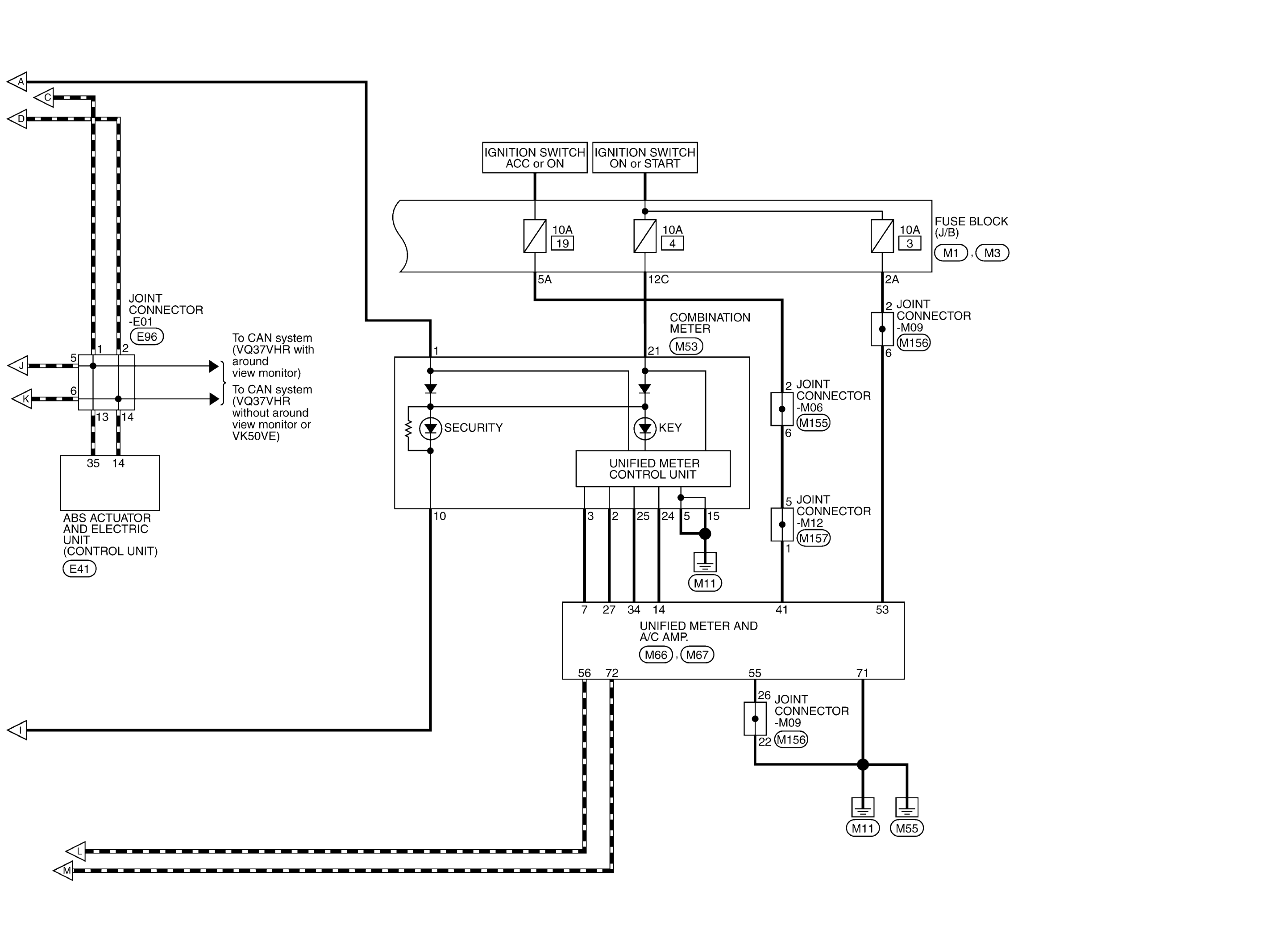

GNSJRKWG0663GB-663

Courtesy of NISSAN NORTH AMERICA, INC.

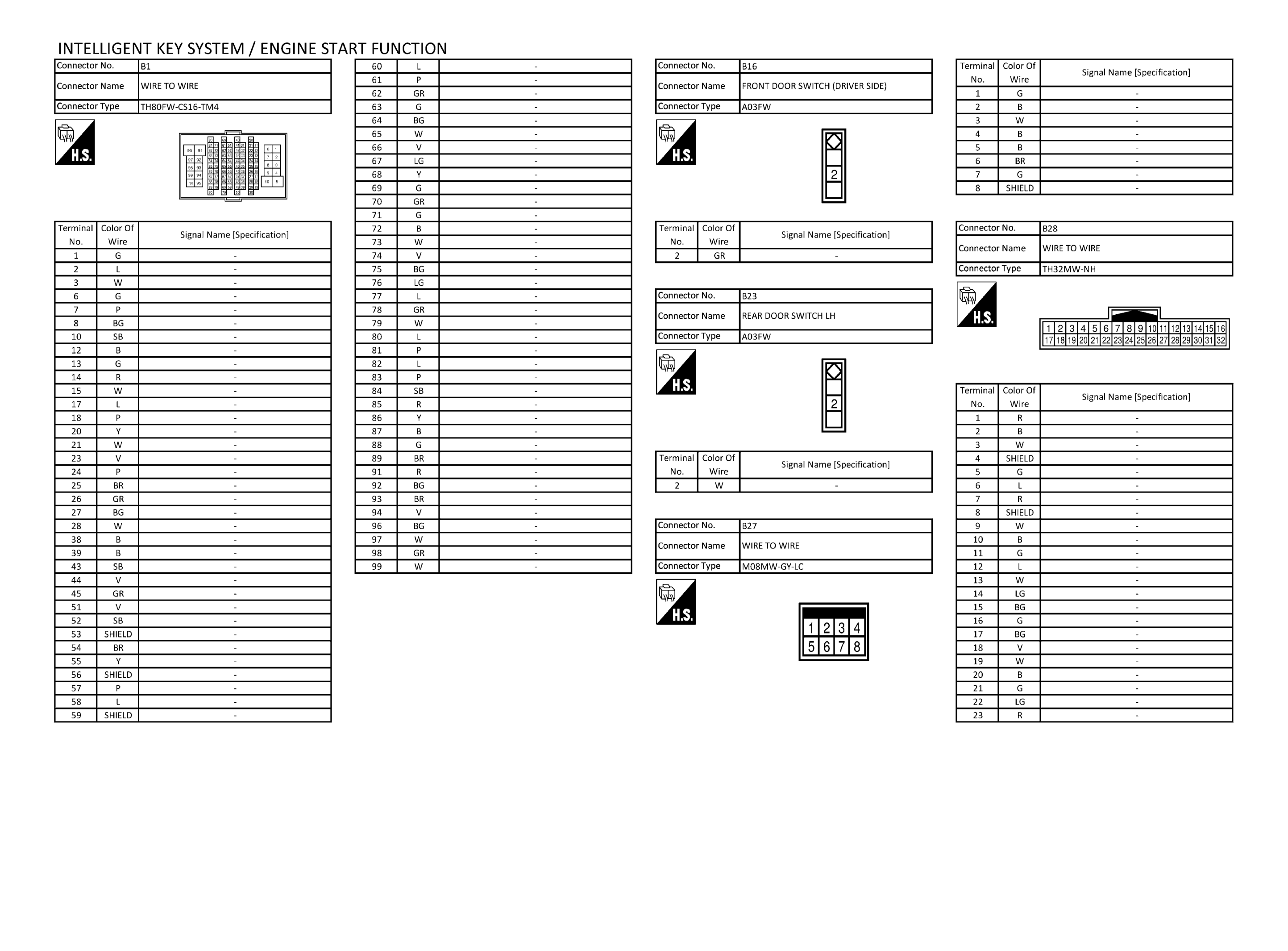

GNSJRKWG0664GB-664

Courtesy of NISSAN NORTH AMERICA, INC.

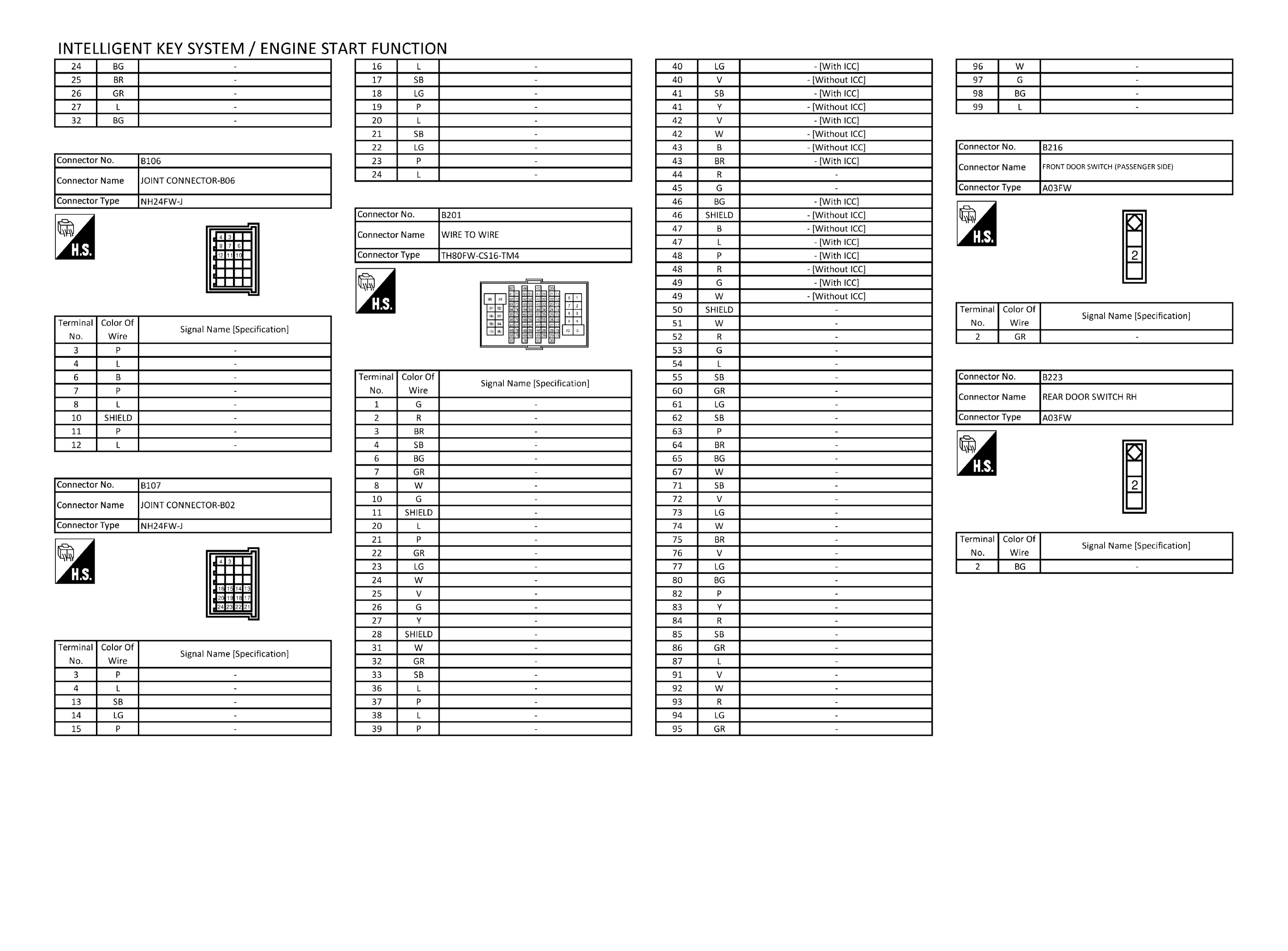

GNSJRKWG0665GB-665

Courtesy of NISSAN NORTH AMERICA, INC.

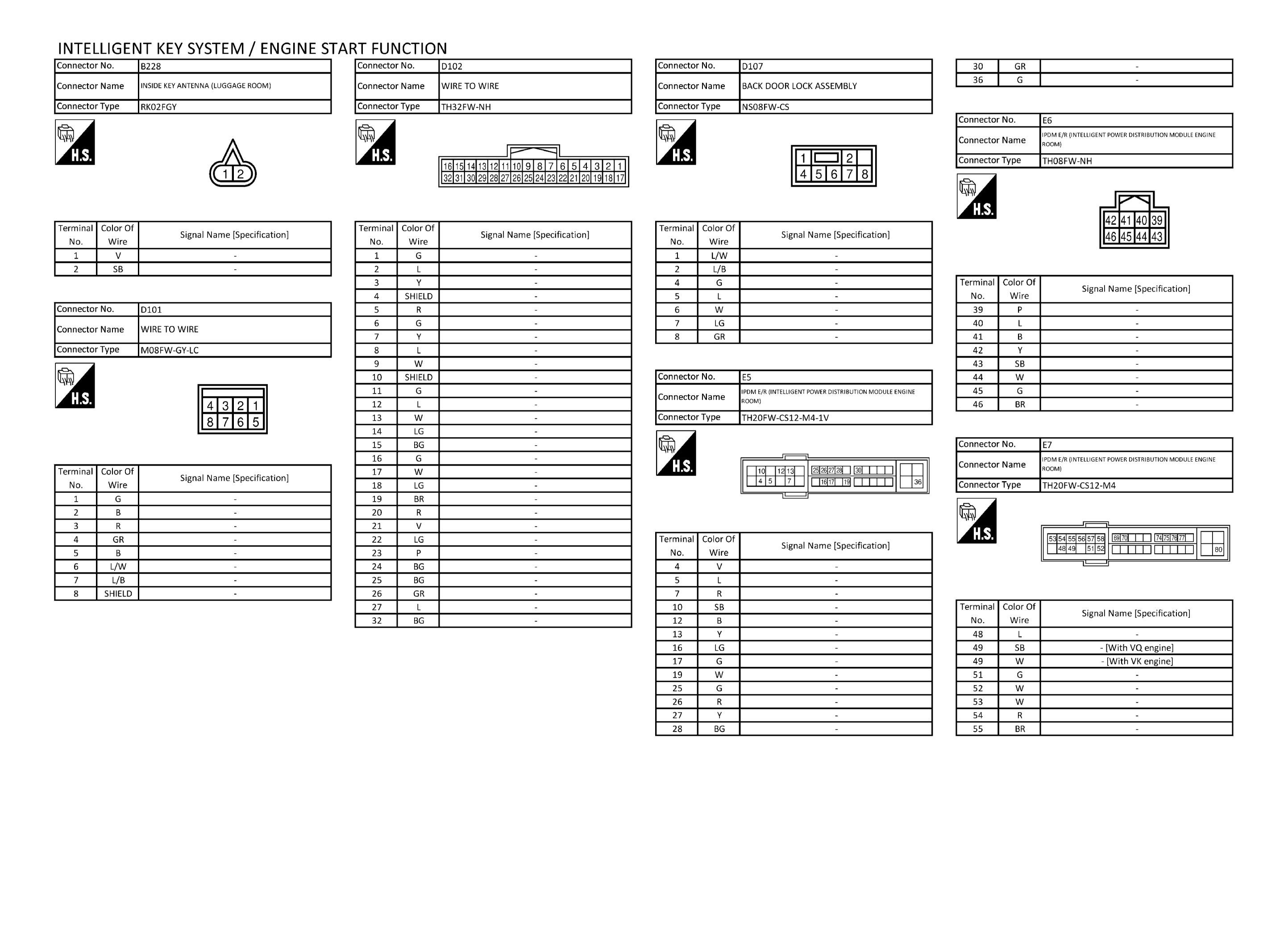

GNSJRKWG0666GB-666

Courtesy of NISSAN NORTH AMERICA, INC.

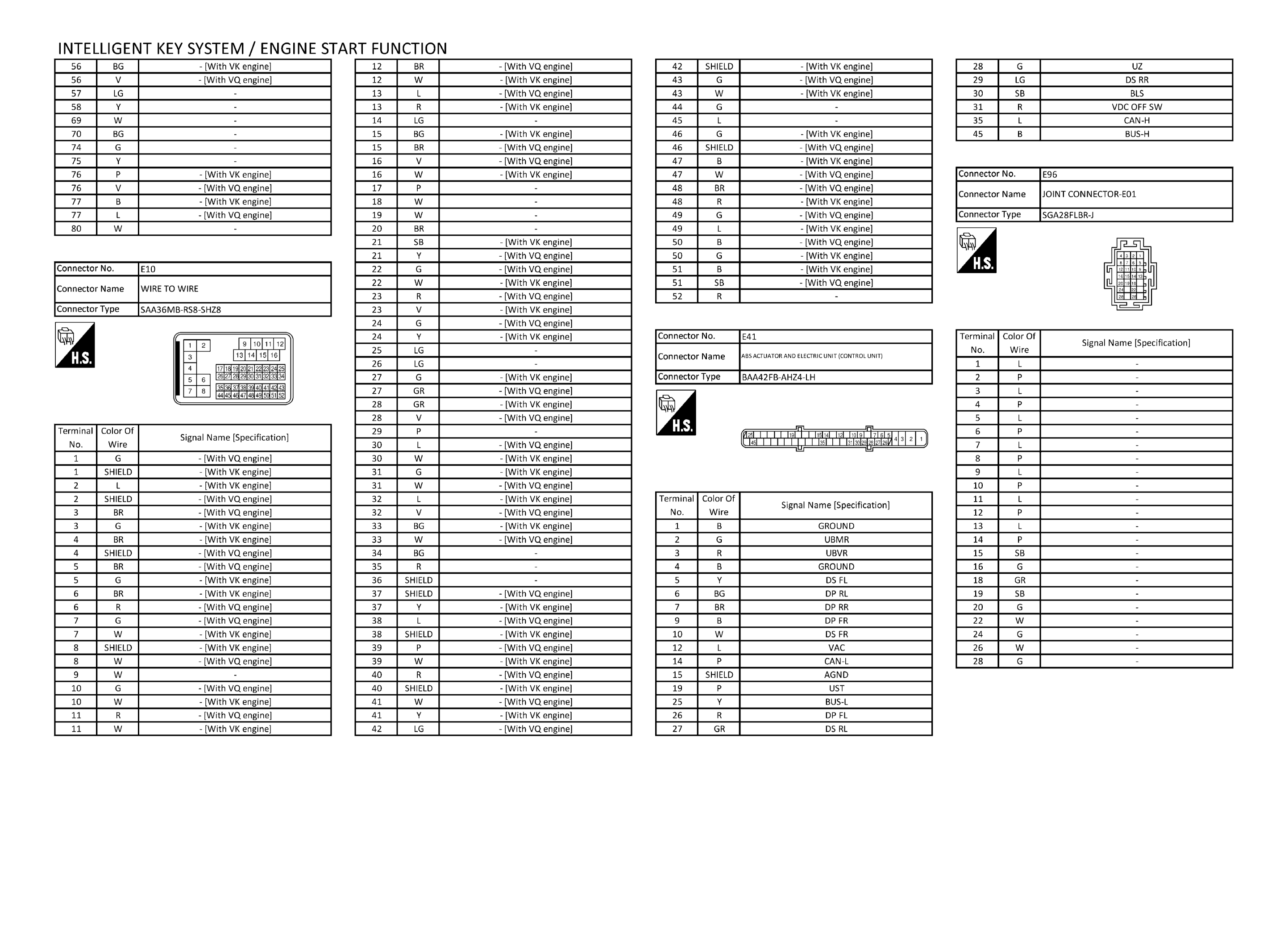

GNSJRKWG0667GB-667

Courtesy of NISSAN NORTH AMERICA, INC.

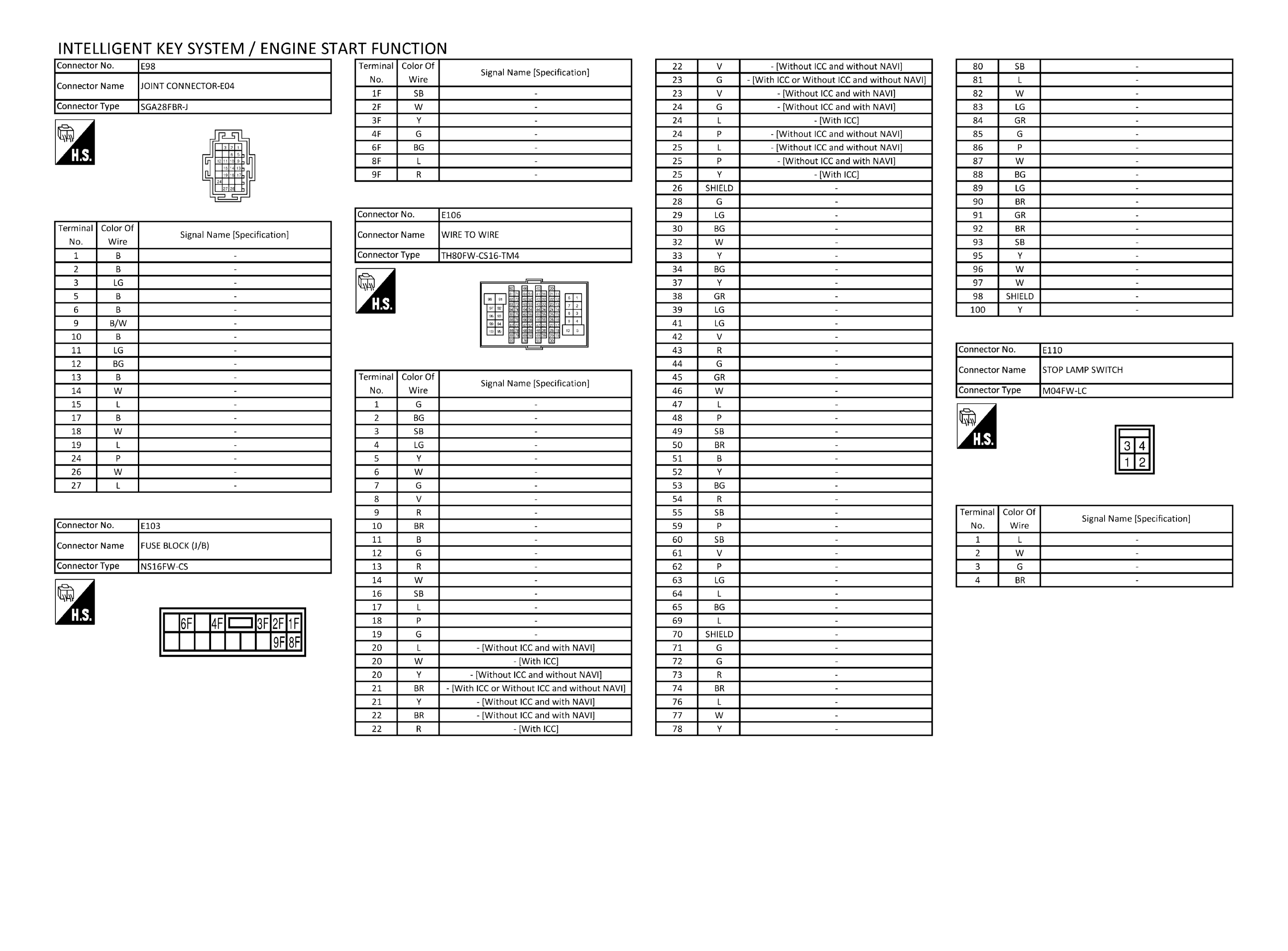

GNSJRKWG0668GB-668

Courtesy of NISSAN NORTH AMERICA, INC.

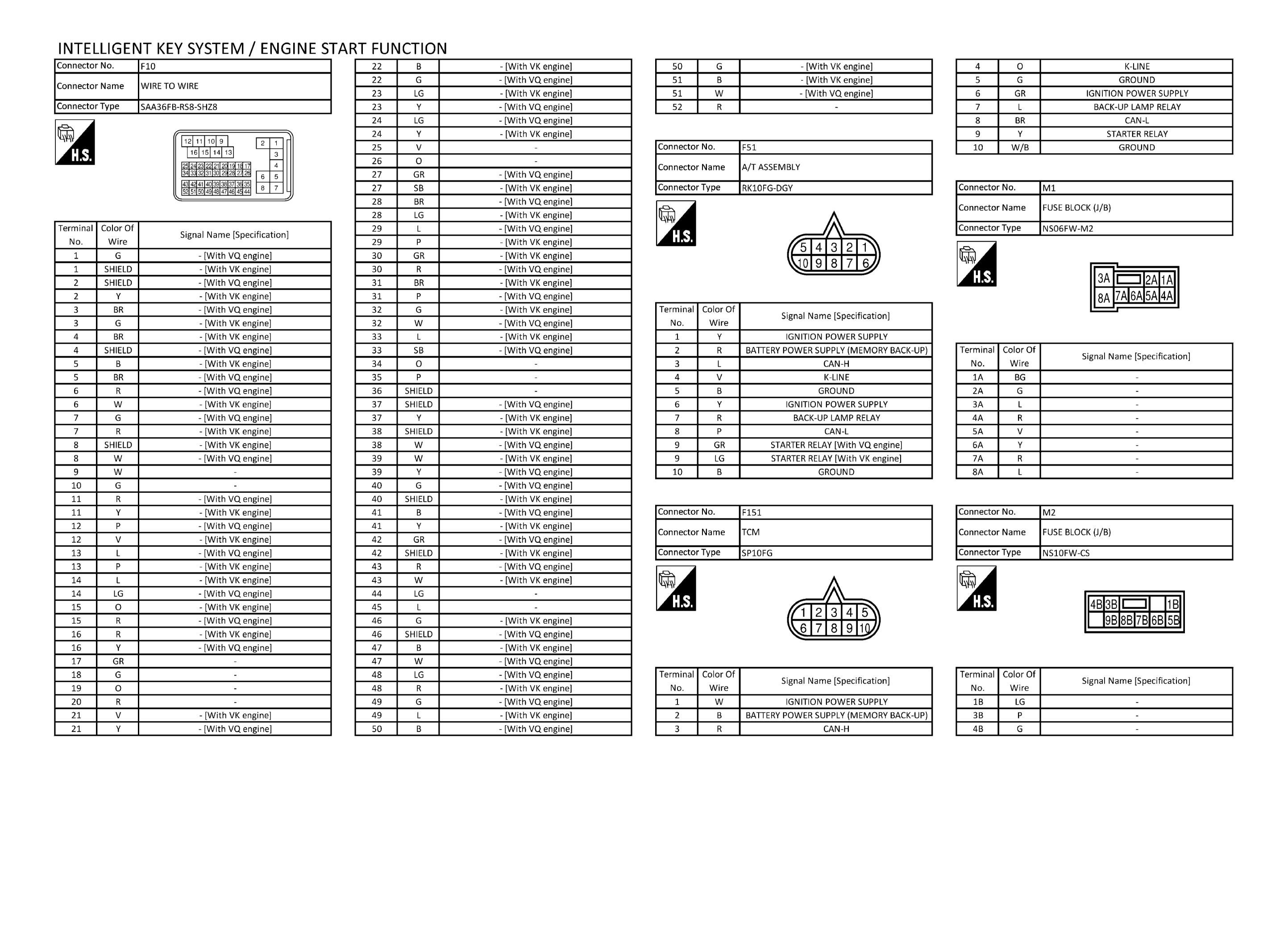

GNSJRKWG0669GB-669

Courtesy of NISSAN NORTH AMERICA, INC.

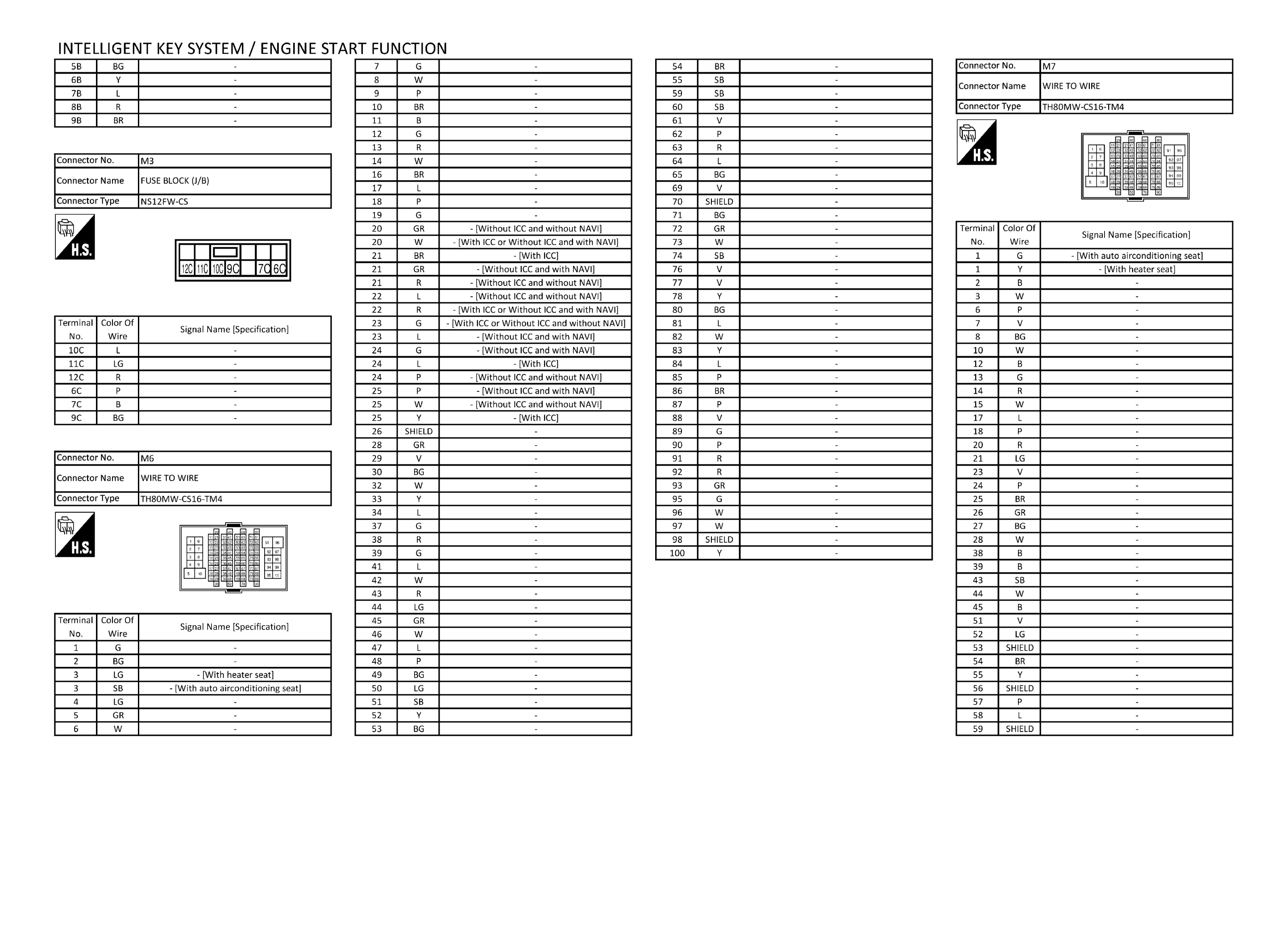

GNSJRKWG0670GB-670

Courtesy of NISSAN NORTH AMERICA, INC.

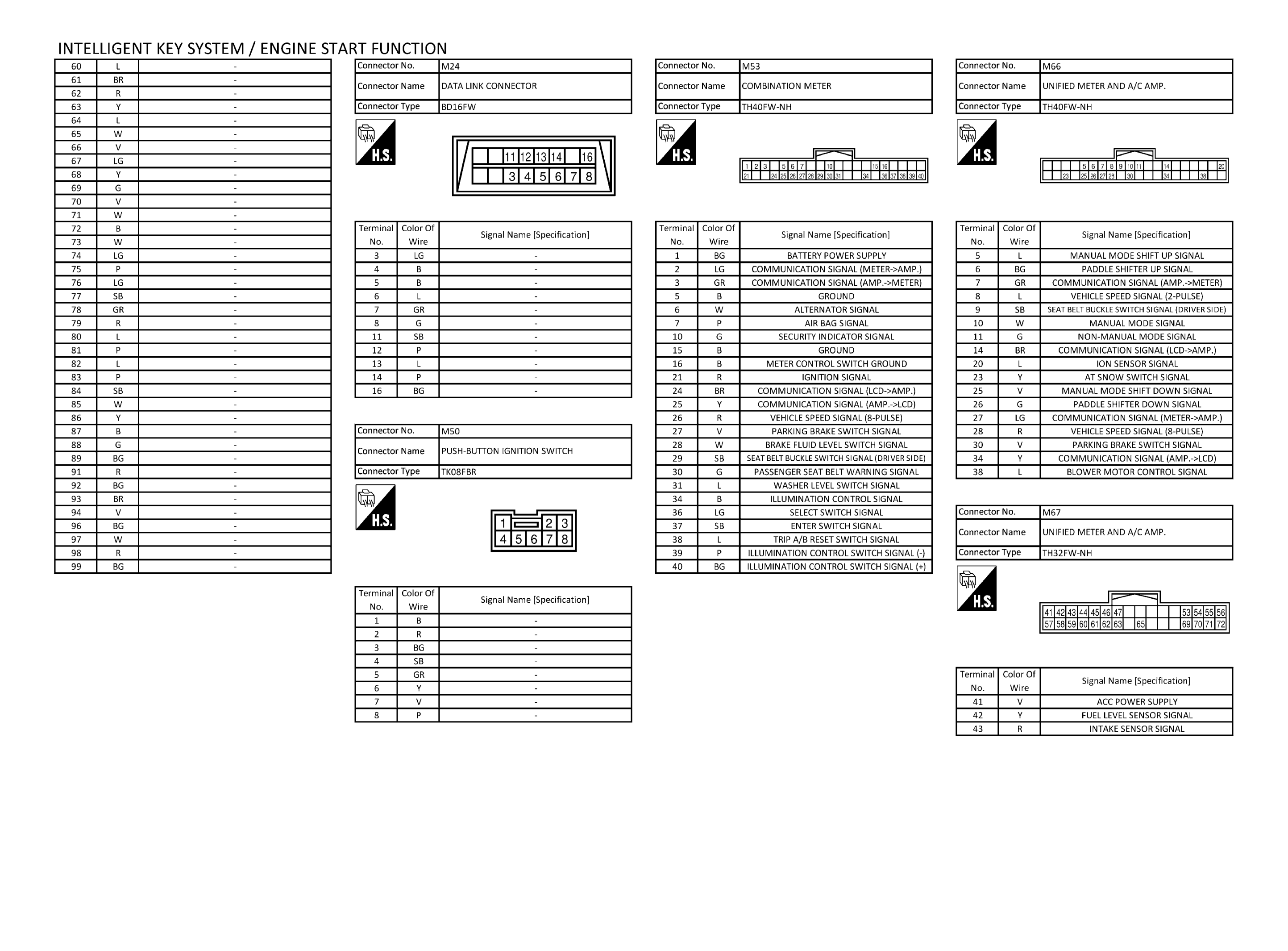

GNSJRKWG0671GB-671

Courtesy of NISSAN NORTH AMERICA, INC.

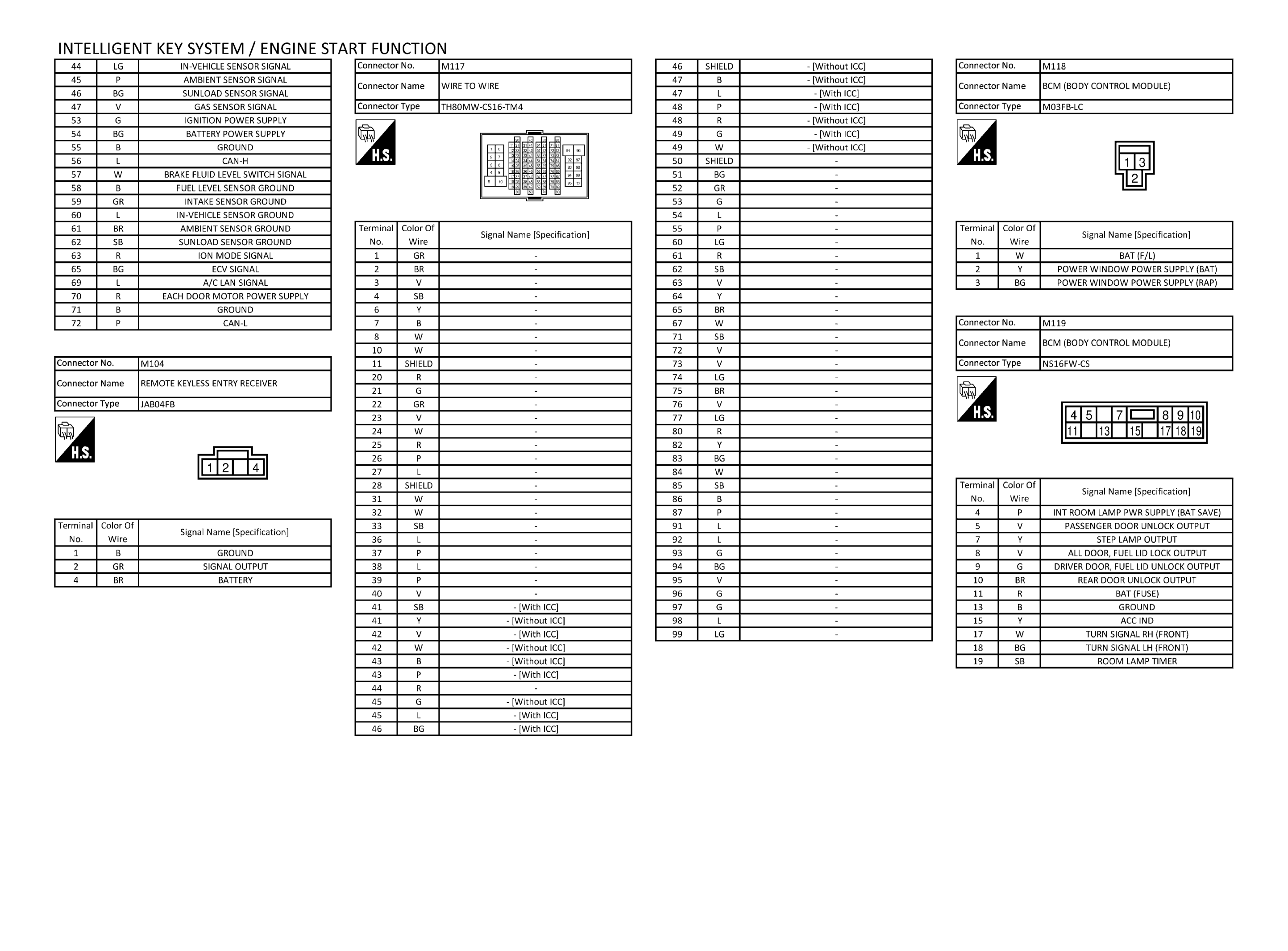

GNSJRKWG0672GB-672

Courtesy of NISSAN NORTH AMERICA, INC.

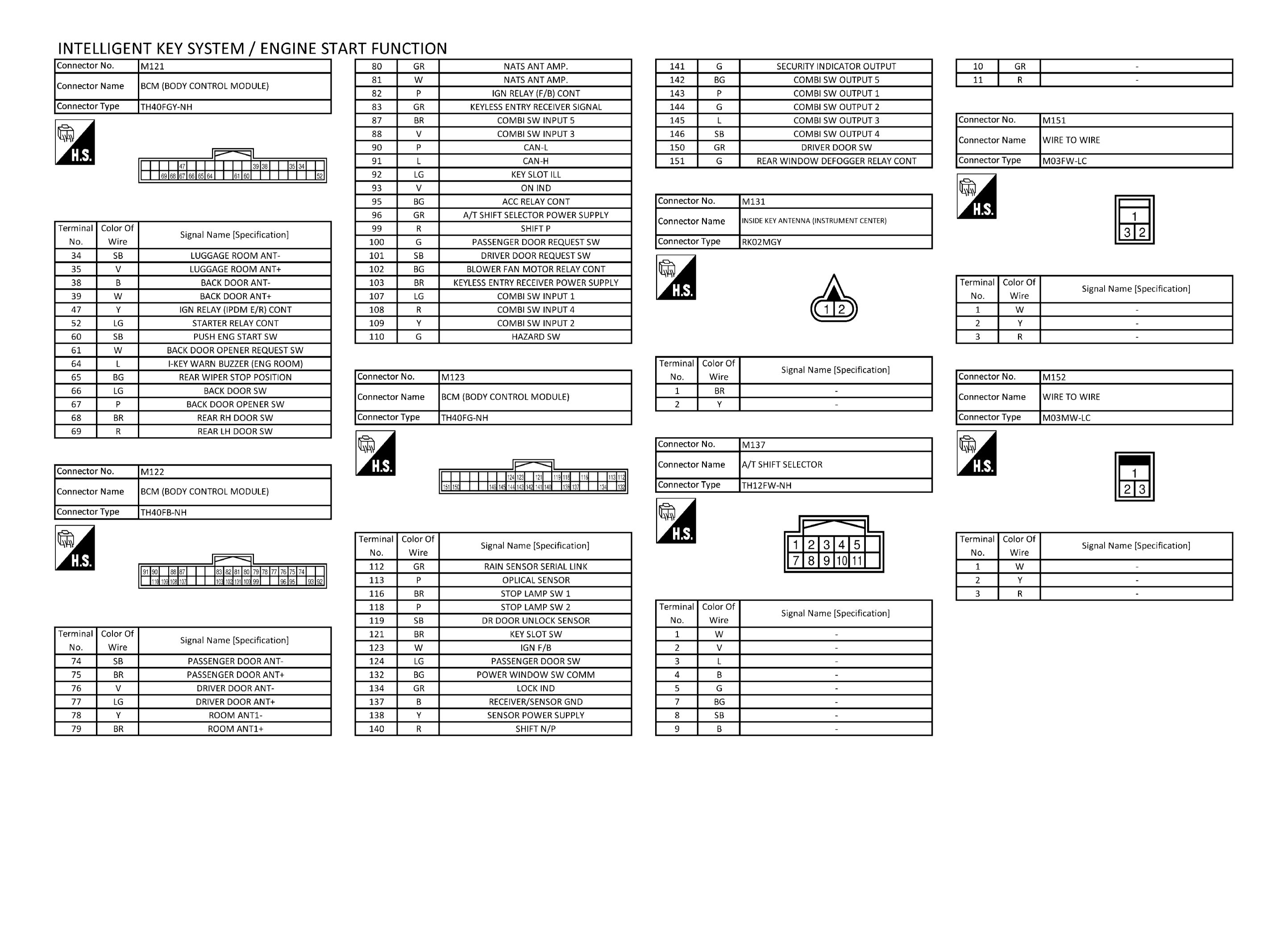

GNSJRKWG0673GB-673

Courtesy of NISSAN NORTH AMERICA, INC.

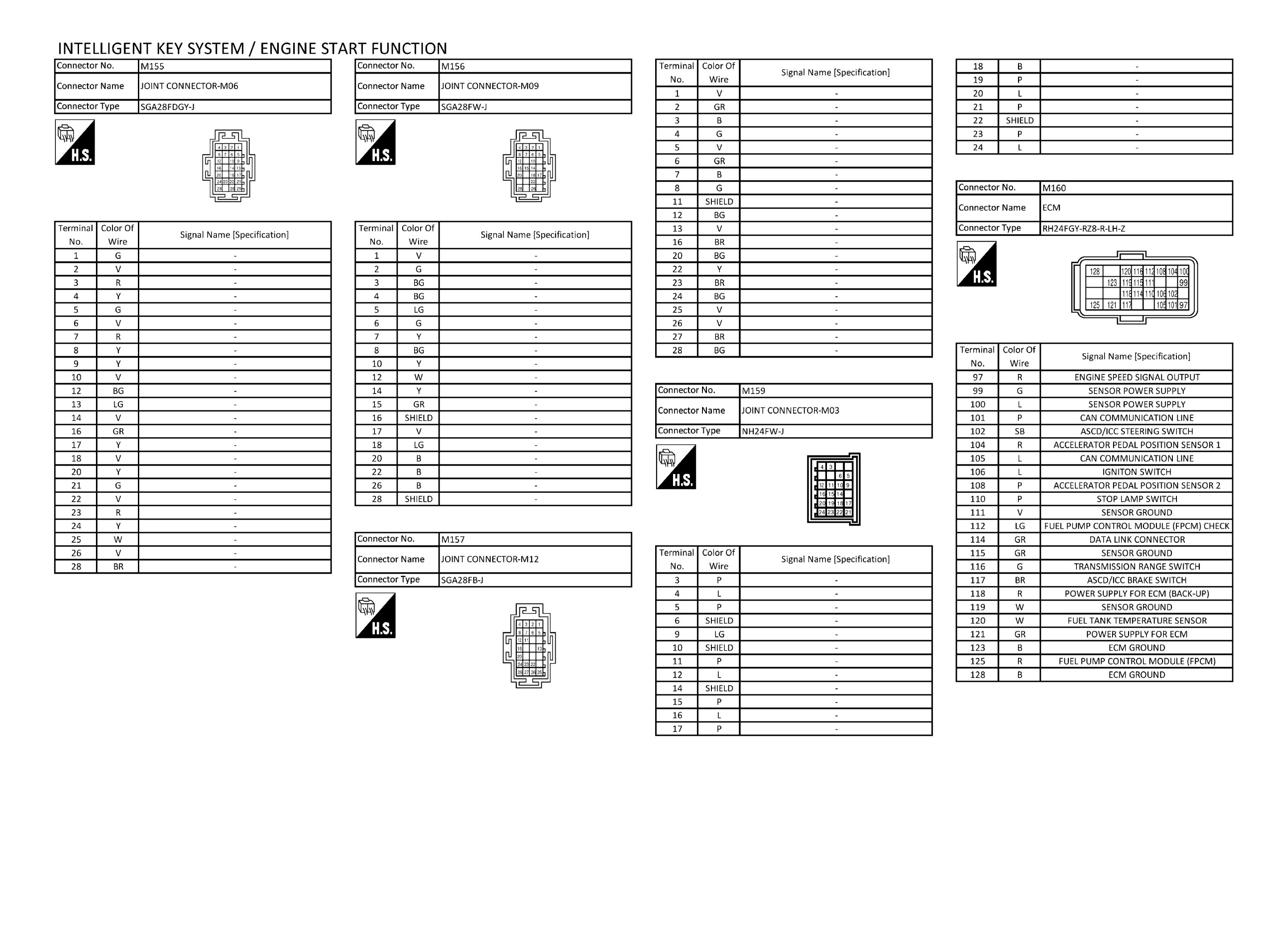

GNSJRKWG0674GB-674

Courtesy of NISSAN NORTH AMERICA, INC.

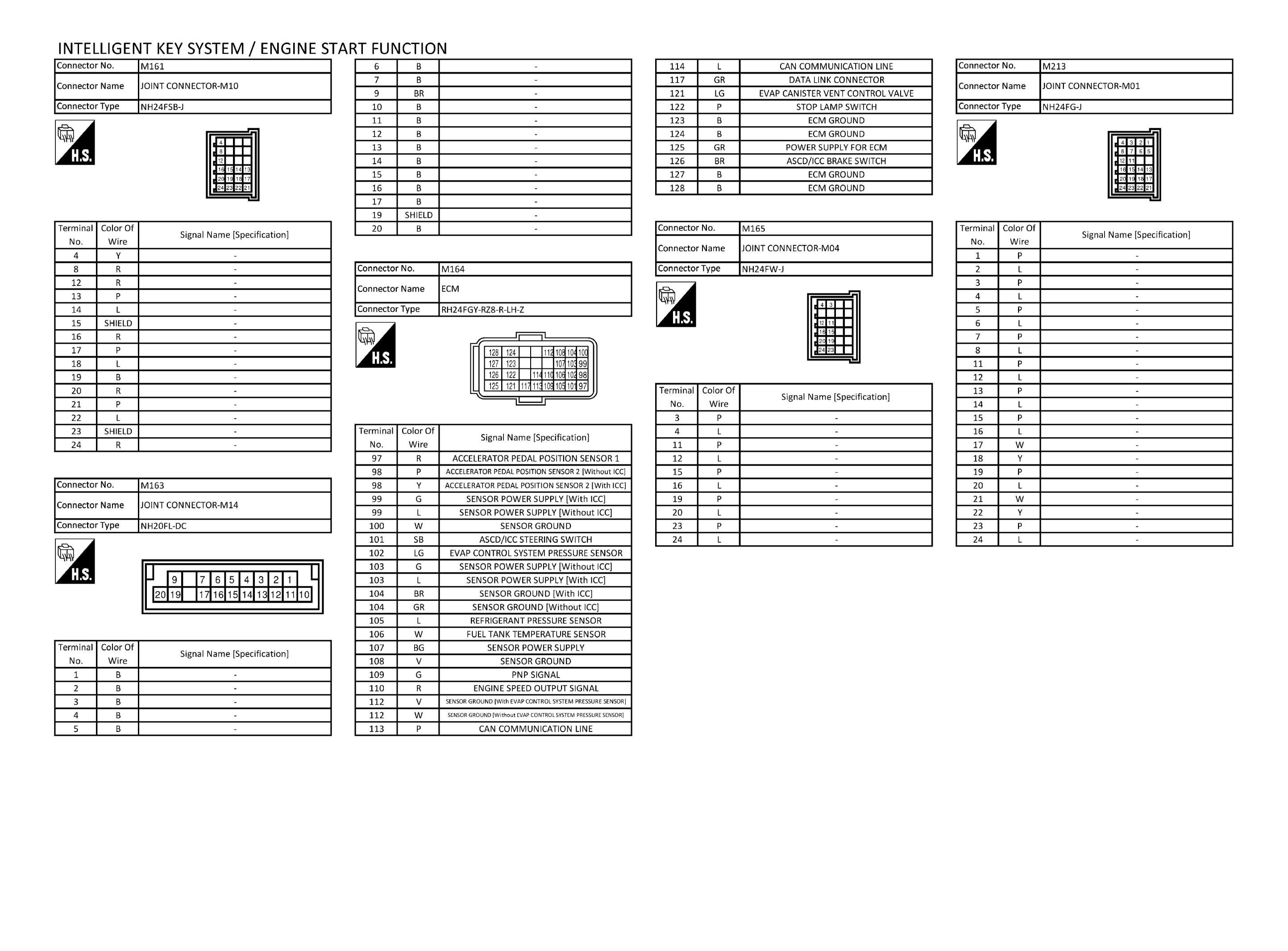

GNSJRKWG0675GB-675

Courtesy of NISSAN NORTH AMERICA, INC.

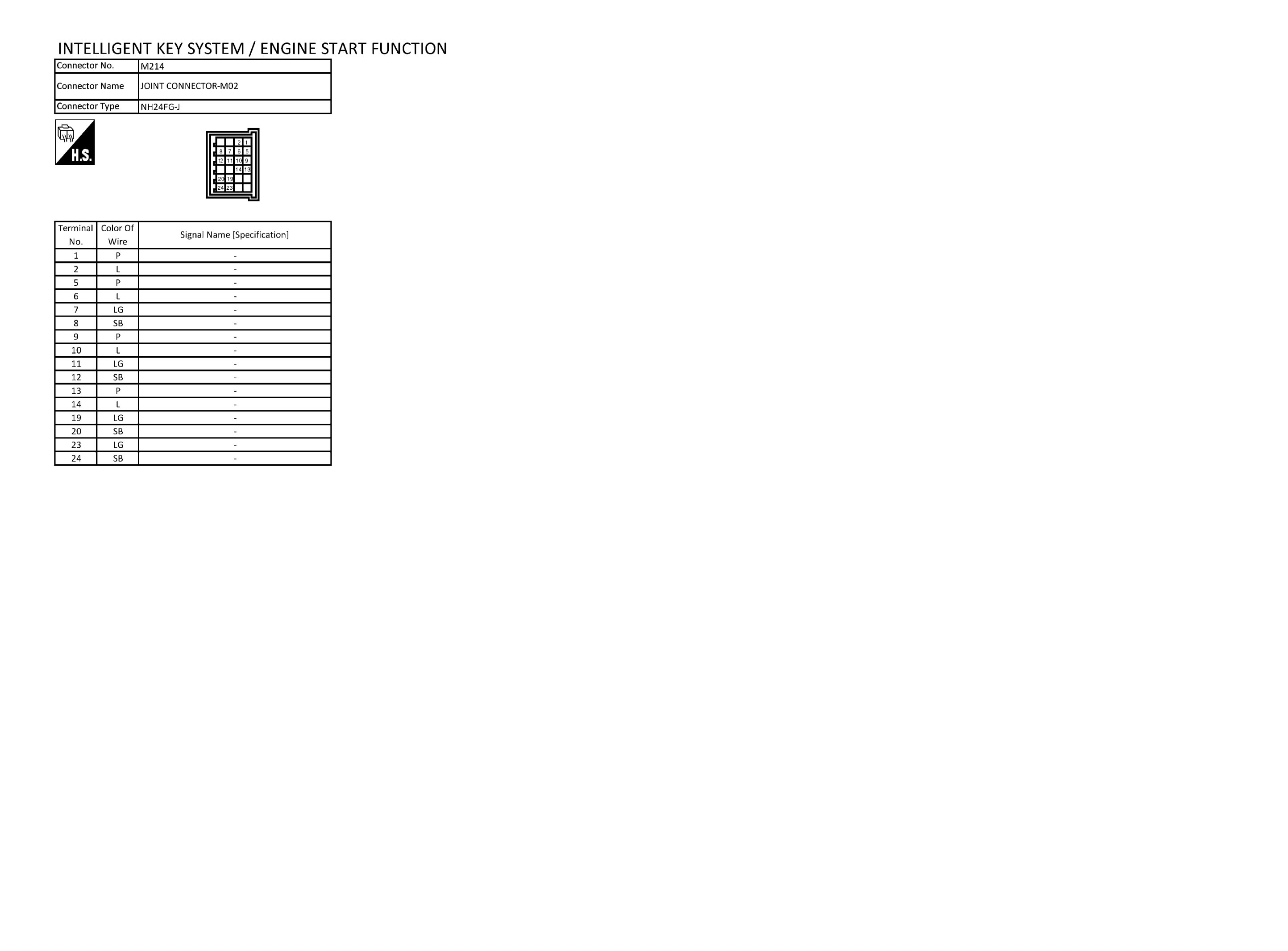

GNSJRKWG0676GB-676

Courtesy of NISSAN NORTH AMERICA, INC.
