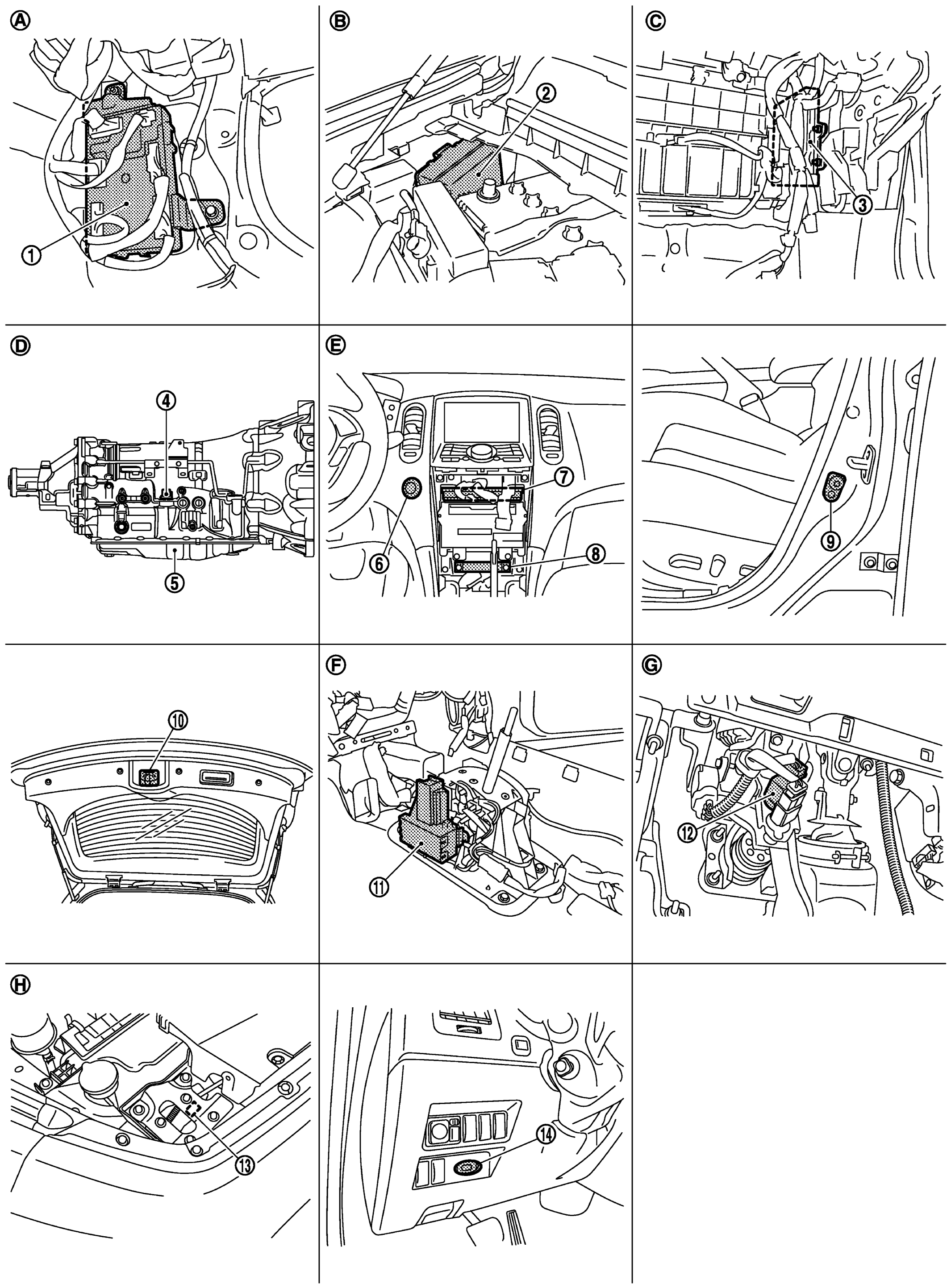

Component Location
| 1. | BCM M118, M119, M121, M122, M123 | 2. | IPDM E/R E5, E6, E7 | 3. | ECM VQ engine: M107 VK engine: M160 |
| 4. | A/T Assembly Connector F51 | 5. | TCM (Built in A/T Assembly) F151 | 6. | Push-Button Ignition Switch M50 |
| 7. | Unified Meter And A/C Amp. M66, M67 | 8. | Inside Key Antenna (Instrument Center) M131 | 9. | Front Door Switch (Driver Side) B16 |
| 10. | Back Door Lock Assembly (Door Switch) D107 (With Automatic Back Door) D122 (Without Automatic Back Door) |
11. | A/T Shift Selector (Detention Switch) M137 | 12. | Stop Lamp Switch E110 |
| 13. | Hood Switch E30 | 14. | Key Slot M22 | ||
| A. | Dash side lower (passenger side) | B. | Engine room dash panel (RH) | C. | Behind the instrument assist lower panel |
| D. | A/T Assembly | E. | View with the cluster lid C removed | F. | View with the center console assembly removed |
| G. | Behind the instrument assist lower panel | H. | View with hood switch incorporated into hood lock (RH) |

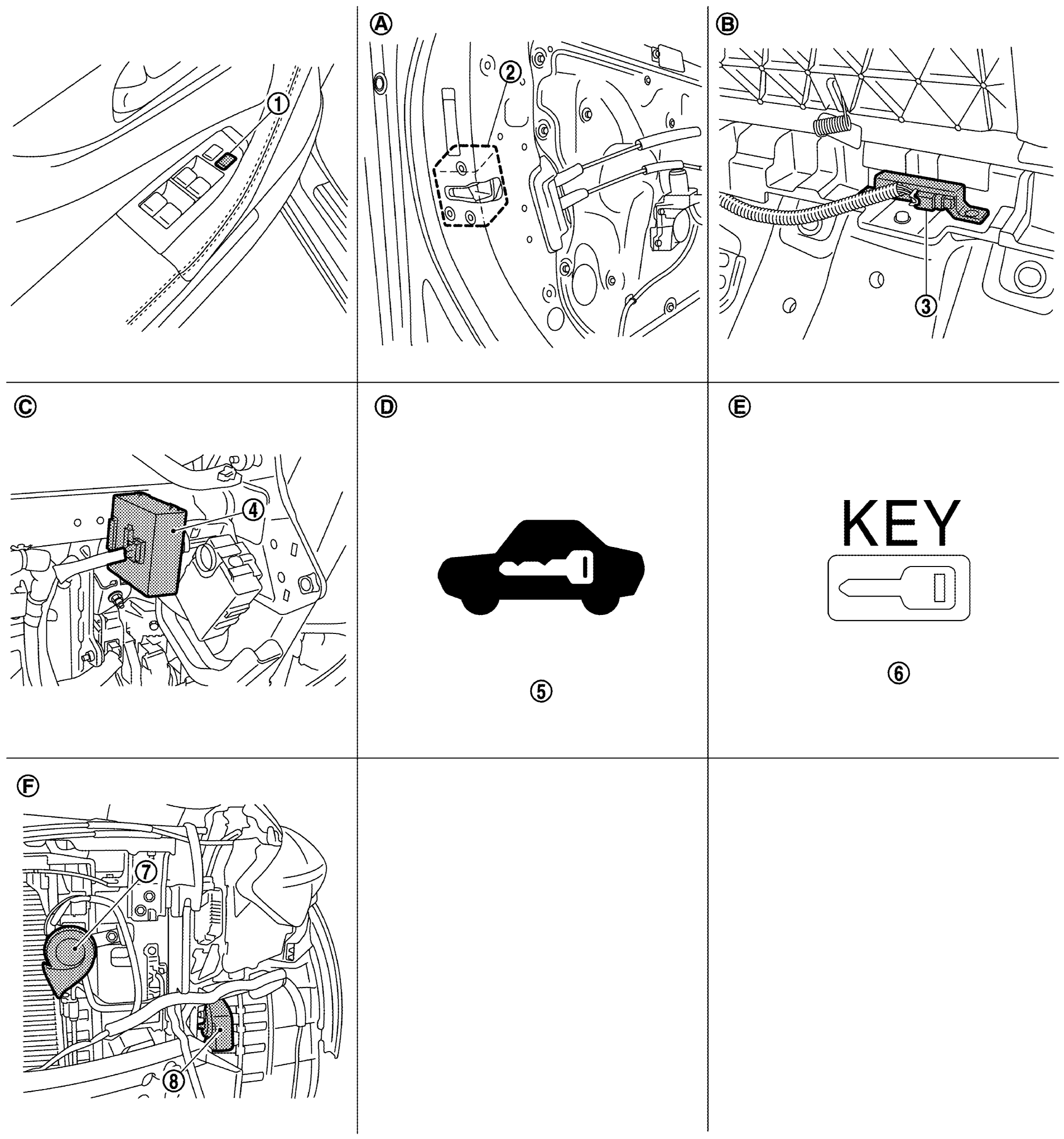

| 1. | Power Window Main Switch (Door Lock And Unlock Switch) D8, D9 |
2. | Front Door Lock Assembly (Driver Side) (Door Key Cylinder Switch) D15 | 3. | Inside Key Antenna (Luggage Room) B228 |
| 4. | Remote Keyless Entry Receiver M104 | 5. | Security Indicator Lamp (Combination Meter M53) |
6. | Key Warning Lamp (Combination Meter M53) |
| 7. | Horn (High) 2 E69, E70 | 8. | Horn (High) 1 E61, E62 | ||
| A. | View with front door finisher removed | B. | Under the rear seat seatback | C. | Behind the instrument lower panel RH |
| D. | Built in combination meter | E. | Built in combination meter | F. | View with front bumper removed |
