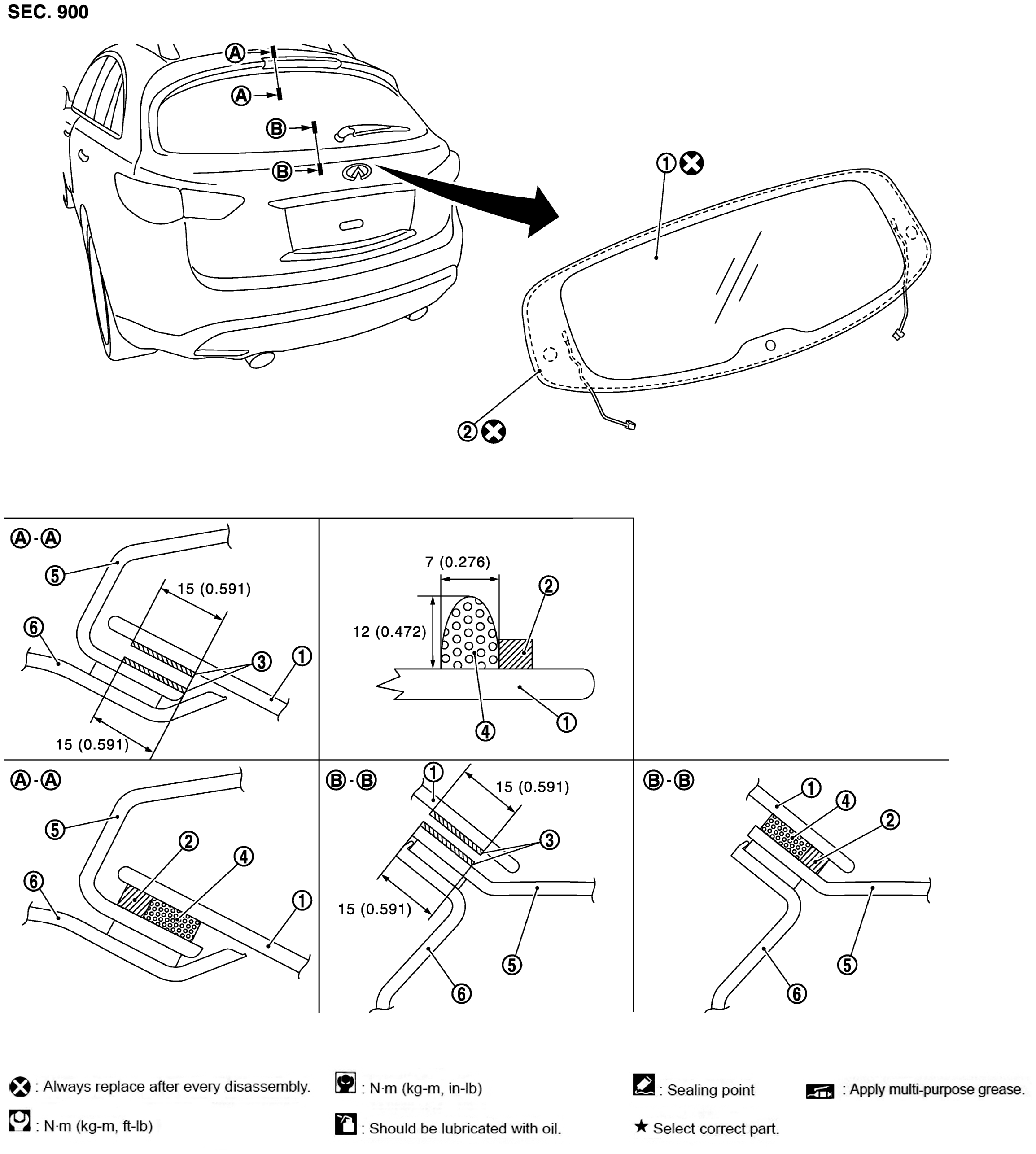

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back Door Window Glass	2.	Dam Sealant Rubber	3.	Primer
4.	Adhesive	5.	Back Door Outer	6.	Back Door Inner
	: Clip
Unit	: mm (in)
	: Always replace after every disassembly.
