DTC Detection Logic

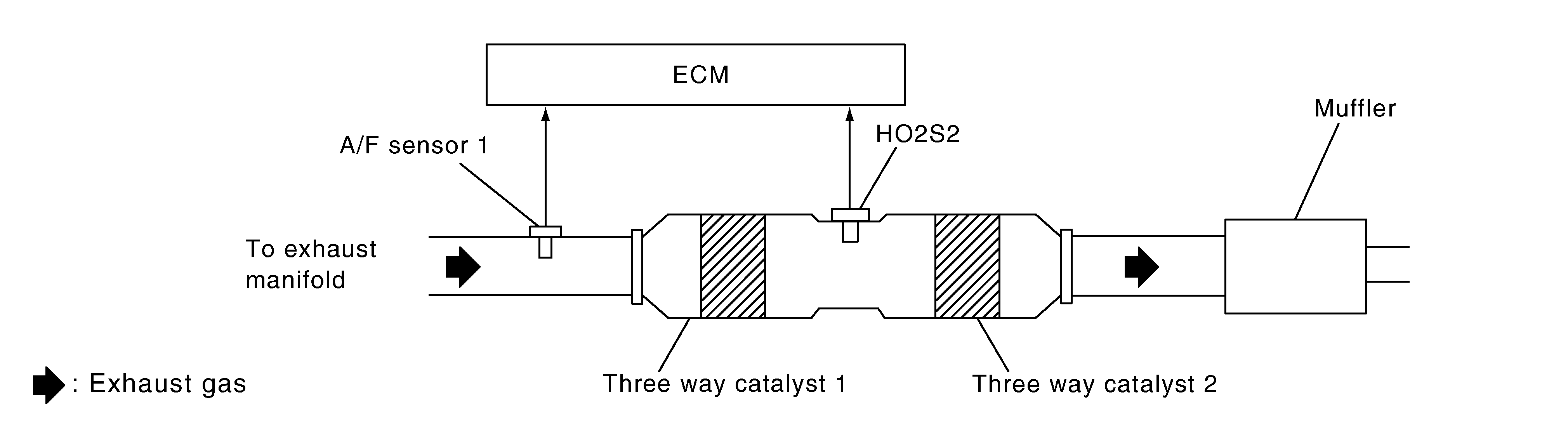

The ECM monitors the Switching frequency ratio of air fuel ratio (A/F) Sensor 1 and Heated Oxygen Sensor 2.

A Three Way Catalyst 1 with high Oxygen storage capacity will indicate a low Switching frequency of Heated Oxygen Sensor 2. As Oxygen storage capacity decreases, the Heated Oxygen Sensor 2 Switching frequency will increase.

When the frequency ratio of A/F Sensor 1 and Heated Oxygen Sensor 2 approaches a specified limit value, the Three Way Catalyst 1 malfunction is diagnosed.

Courtesy of NISSAN NORTH AMERICA, INC.

DTC No.	Trouble Diagnosis Name	DTC Detecting Condition	Possible Cause
P0420	Catalyst system efficiency below threshold (Bank 1)	Three Way Catalyst (Manifold) does not operate properly. Three Way Catalyst (Manifold) does not have enough Oxygen storage capacity.	Three Way Catalyst (Manifold) Exhaust tube Intake air leaks Fuel Injector Fuel Injector leaks Spark plug Improper Ignition timing
P0430	Catalyst system efficiency below threshold (Bank 2)
