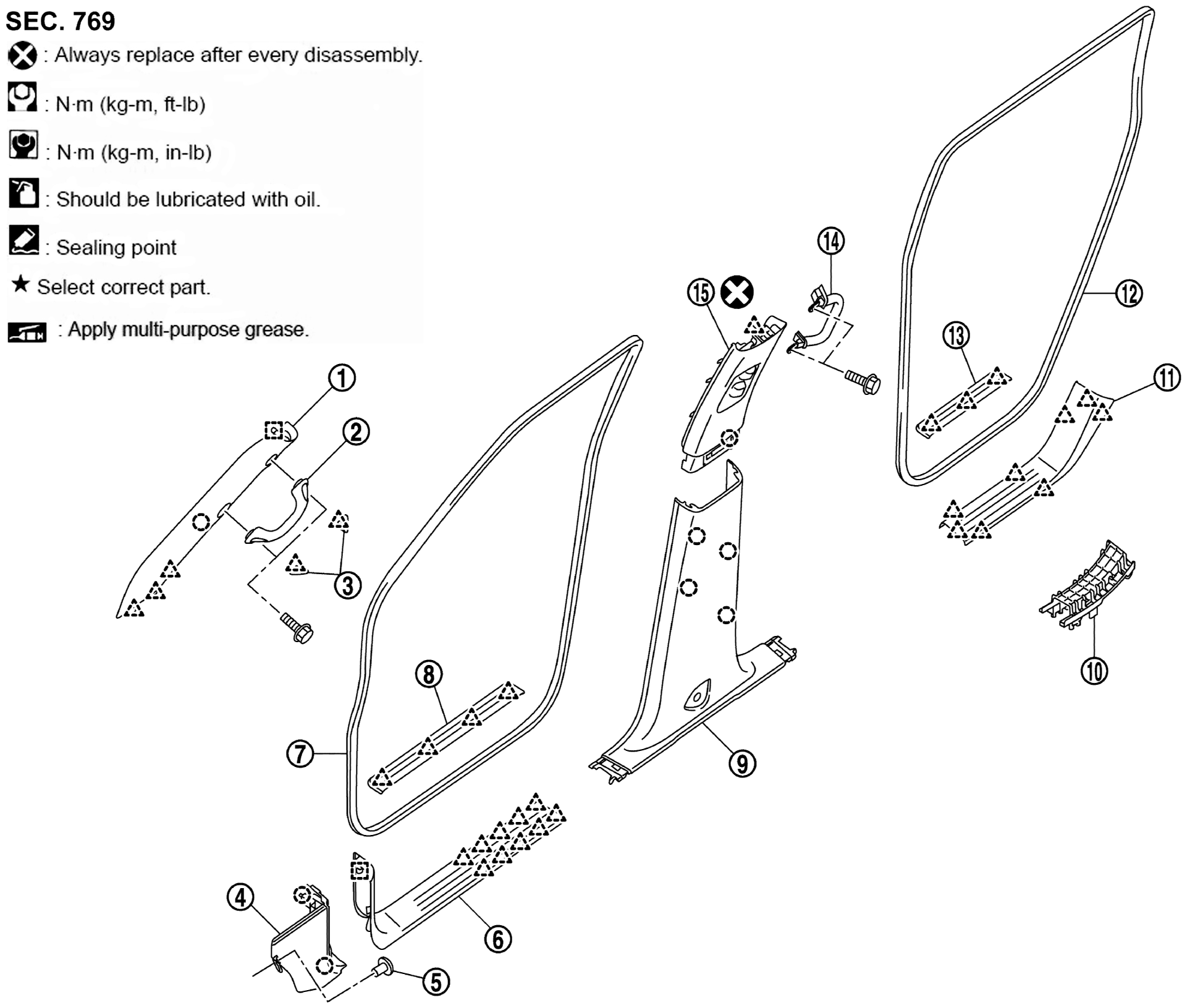

Exploded View With Torque Specifications
| 1. | Front pillar garnish | 2. | Assist grip | 3. | Assist grip cap |
| 4. | Dash side finisher | 5. | Clip | 6. | Front kicking plate inner |
| 7. | Front body side welt | 8. | Front kicking plate outer | 9. | Center pillar lower garnish |
| 10. | Rear side bracket | 11. | Rear kicking plate inner | 12. | Rear body side welt |
| 13. | Rear kicking plate outer | 14. | Assist grip | 15. | Center pillar upper garnish |
| : Clip | |||||
| : Pawl | |||||
| : Metal clip | |||||
| : Always replace after every disassembly. | |||||
