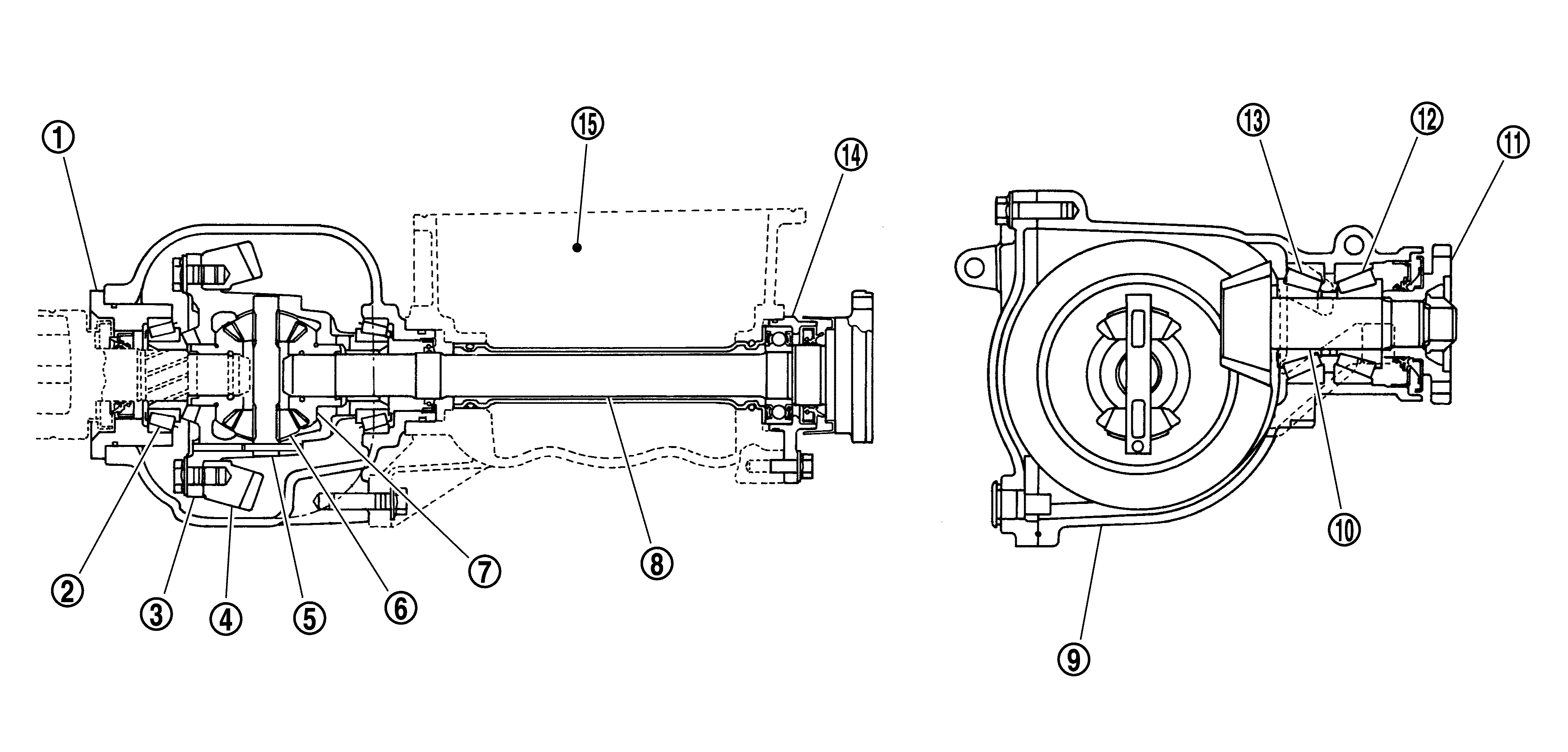

Cross-Sectional View
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Side retainer |
2. |
Side bearing |
3. |
Differential case |
| 4. |
Drive gear |
5. |
Pinion mate shaft |
6. |
Pinion mate gear |
| 7. |
Side gear |
8. |
Side shaft |
9. |
Gear carrier |
| 10. |
Drive pinion |
11. |
Companion flange |
12. |
Pinion front bearing |
| 13. |
Pinion rear bearing |
14. |
Extension tube retainer |
15. |
Engine assembly |
