Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

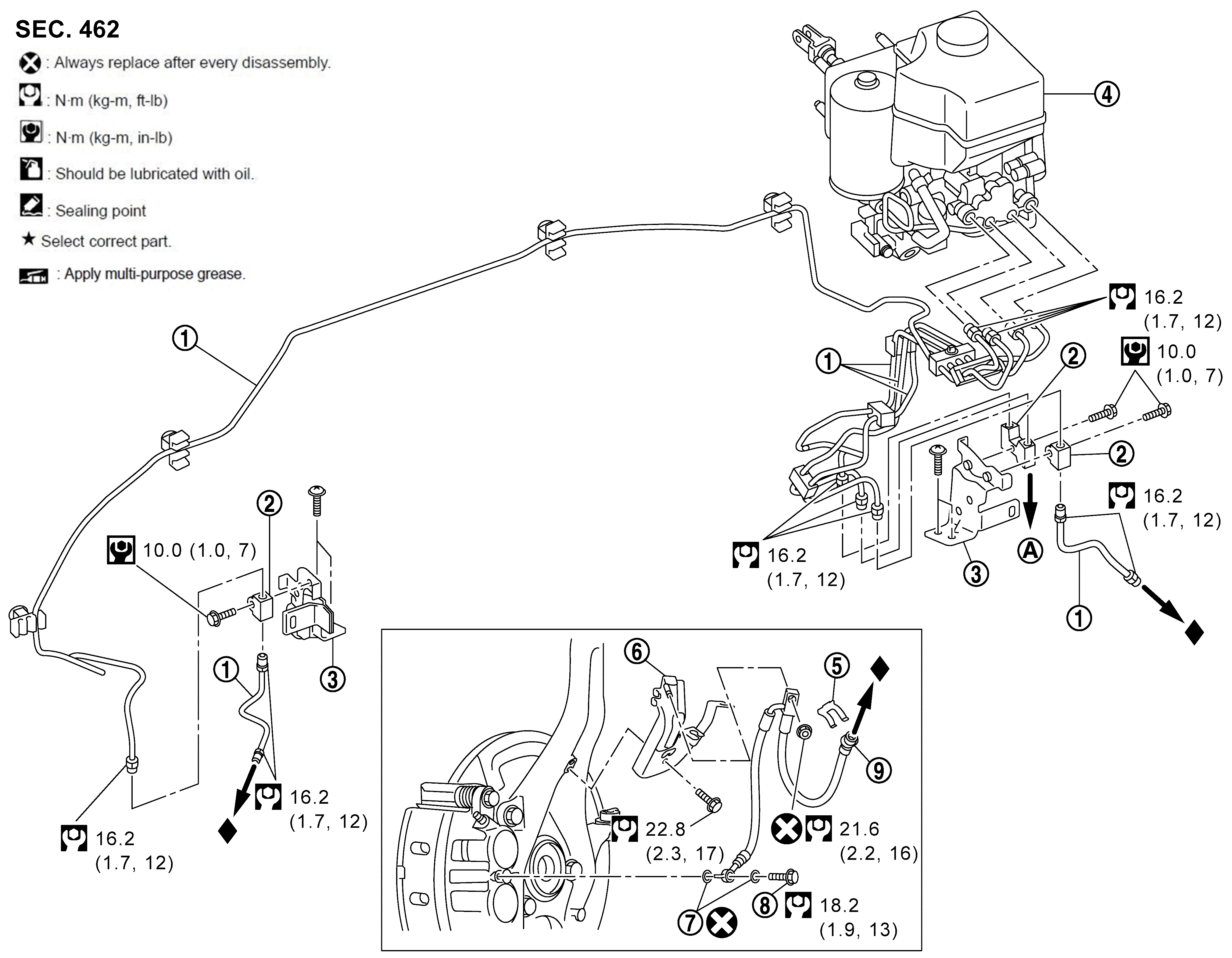

Fig 1: Brake Piping Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake tube	2.	Connector	3.	Connector bracket
4.	Hydraulic booster assembly	5.	Lock plate	6.	Brake hose bracket
7.	Copper washer	8.	Union bolt	9.	Brake hose
A.	To rear brake tube
: Indicates that the part is connected at points with same symbol in actual vehicle.
	: Body grease
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
	: Always replace after every disassembly
