Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

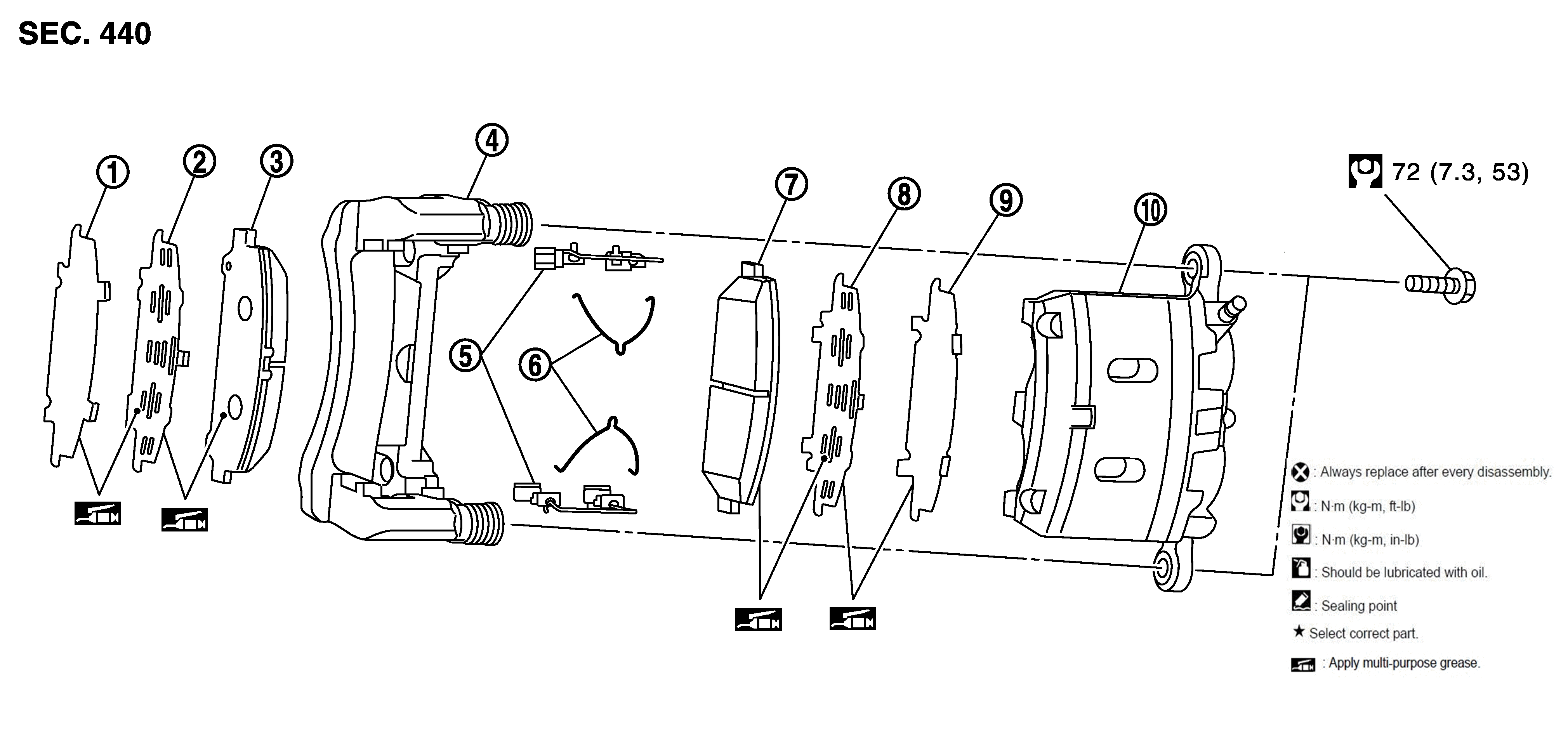

Fig 1: Exploded View Of Brake Pad Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer shim cover	2.	Outer shim	3.	Outer pad
4.	Torque member	5.	Pad retainer	6.	Pad return spring
7.	Inner pad (with pad wear sensor)	8.	Inner shim	9.	Inner shim cover
10.	Cylinder body
: Apply MOLYKOTE^® AS880N or silicone-based grease.
	: N•m (kg - m, ft - lb)

Molykote is a registered trademark of Dow Corning Corporation.
