Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

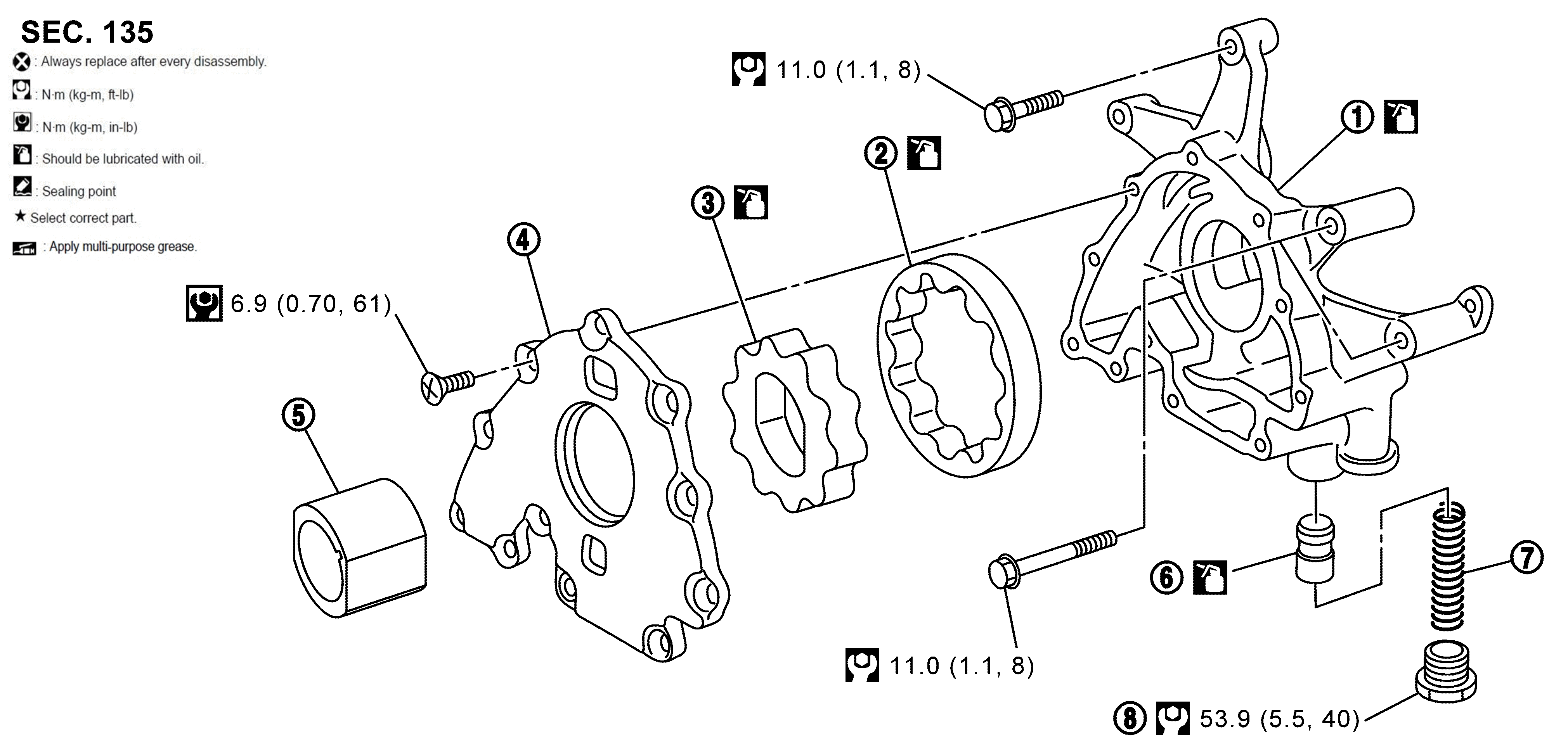

Fig 1: Oil Pump Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump body	2.	Outer rotor	3.	Inner rotor
4.	Oil pump cover	5.	Oil pump drive spacer	6.	Regulator valve
7.	Regulator spring	8.	Regulator plug
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
: Should be lubricated with oil.
