Component Location

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

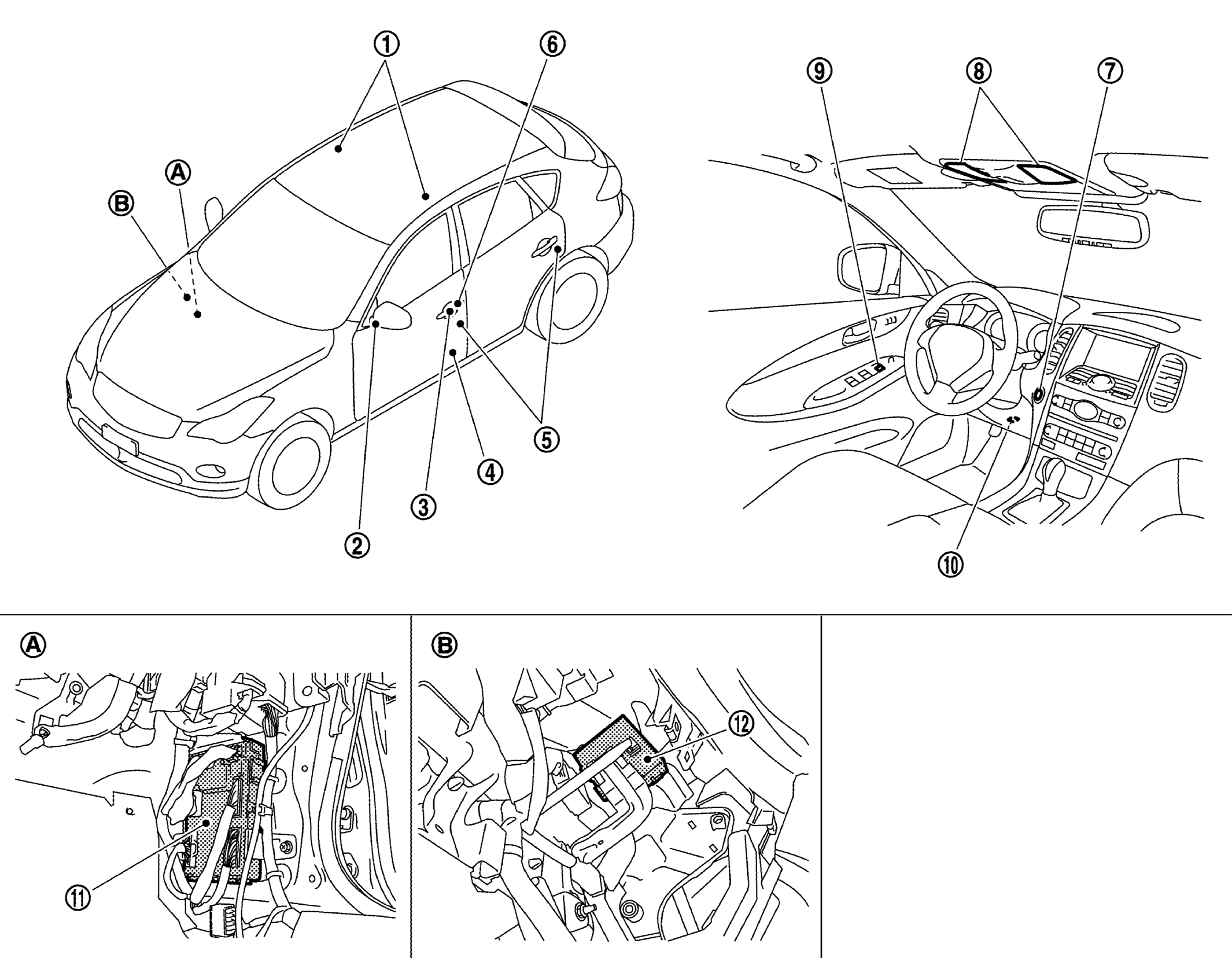

GNSJPLIA0949ZZ-949Courtesy of NISSAN NORTH AMERICA, INC.
1. Personal lamp 2. Puddle lamp 3. Request switch
4. Step lamp 5. Door switch 6. Key cylinder lock/unlock switch
7. Push-button ignition switch illumination 8. Map lamp 9. Door lock/unlock switch
10. Foot lamp 11. BCM 12. Remote keyless entry receiver
A. Dash side lower (passenger side) B. Over the glove box
