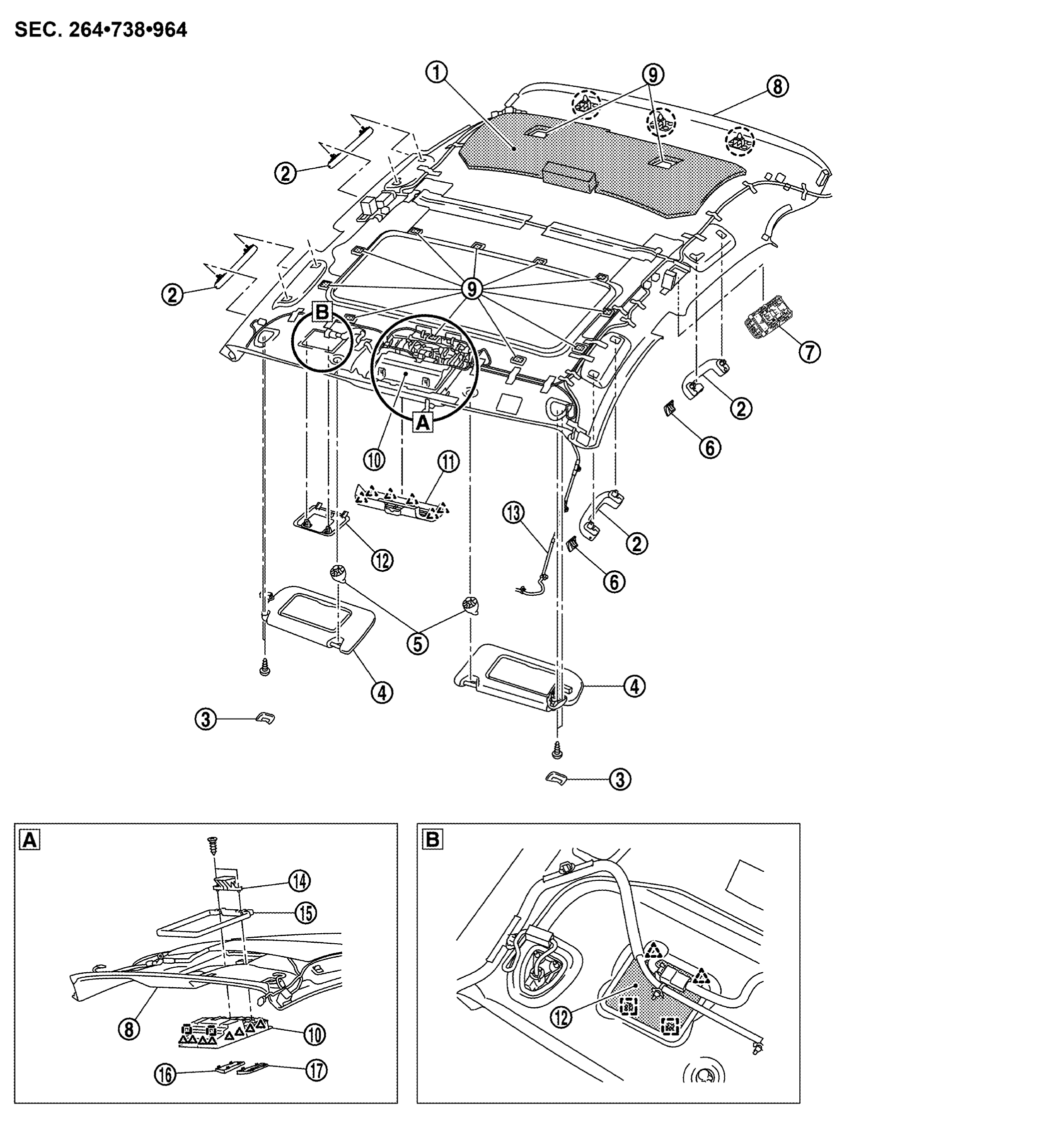

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Insulator roof | 2. | Assist grip | 3. | Sun-visor cover |
| 4. | Sun-visor assembly | 5. | Sun-visor holder | 6. | Assist grip cap |
| 7. | Personal lamp assembly | 8. | Headlining assembly | 9. | Dual lock fastener |
| 10. | Map lamp assembly | 11. | Front camera finisher (with lane camera unit) | 12. | Front roof finisher |
| 13. | Antenna feeder harness | 14. | Bracket map lamp | 15. | Roof plate assembly |
| 16. | Map lamp lens RH | 17. | Map lamp lens LH | ||
| : Clip | |||||
| : Pawl | |||||
| : Metal clip |
