Exploded View

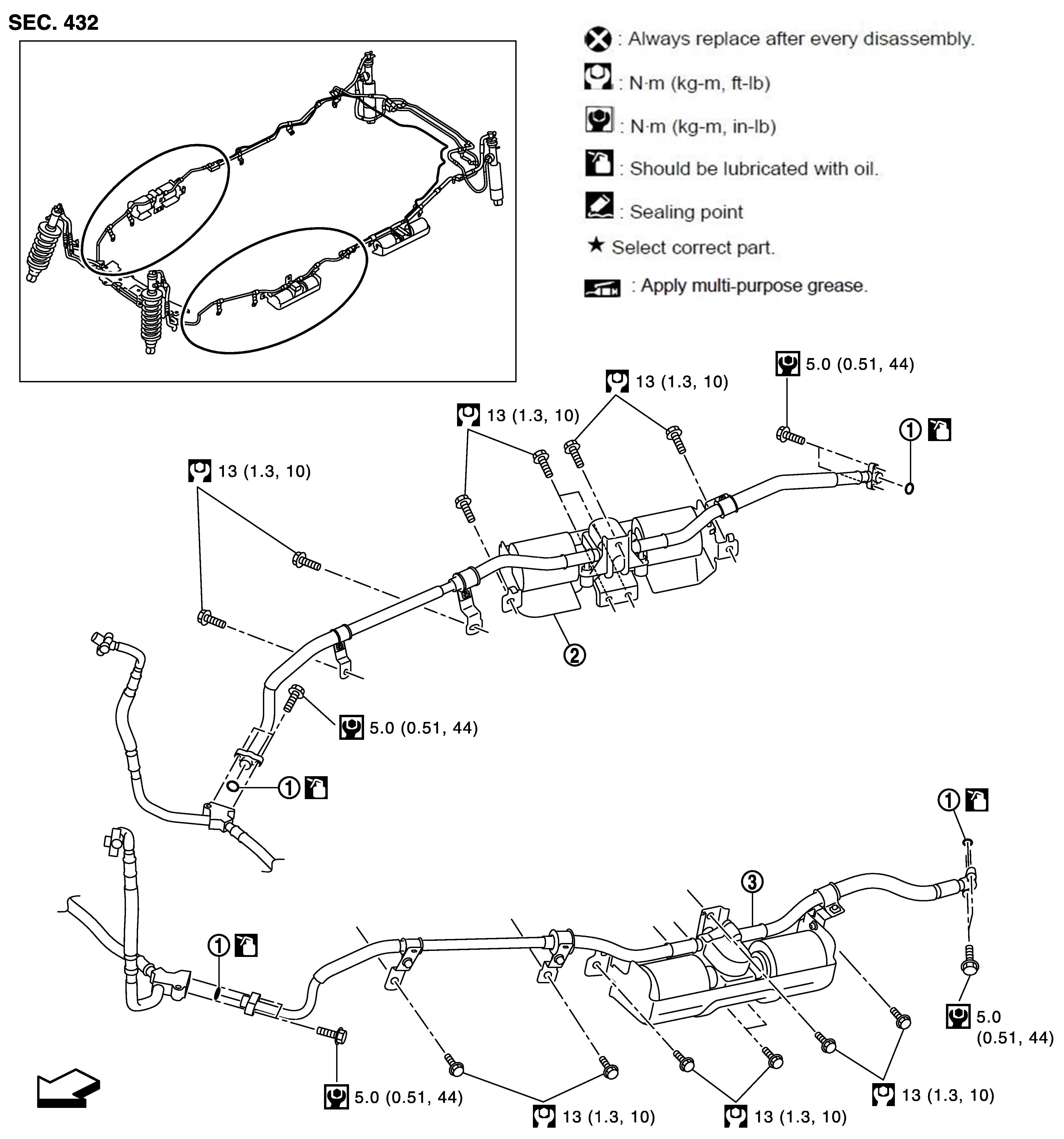

Fig 1: Accumulator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Accumulator assembly RH	3.	Accumulator assembly LH
:	Vehicle front
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
:	Apply genuine NISSAN hydraulic suspension fluid
