Circuit Diagram

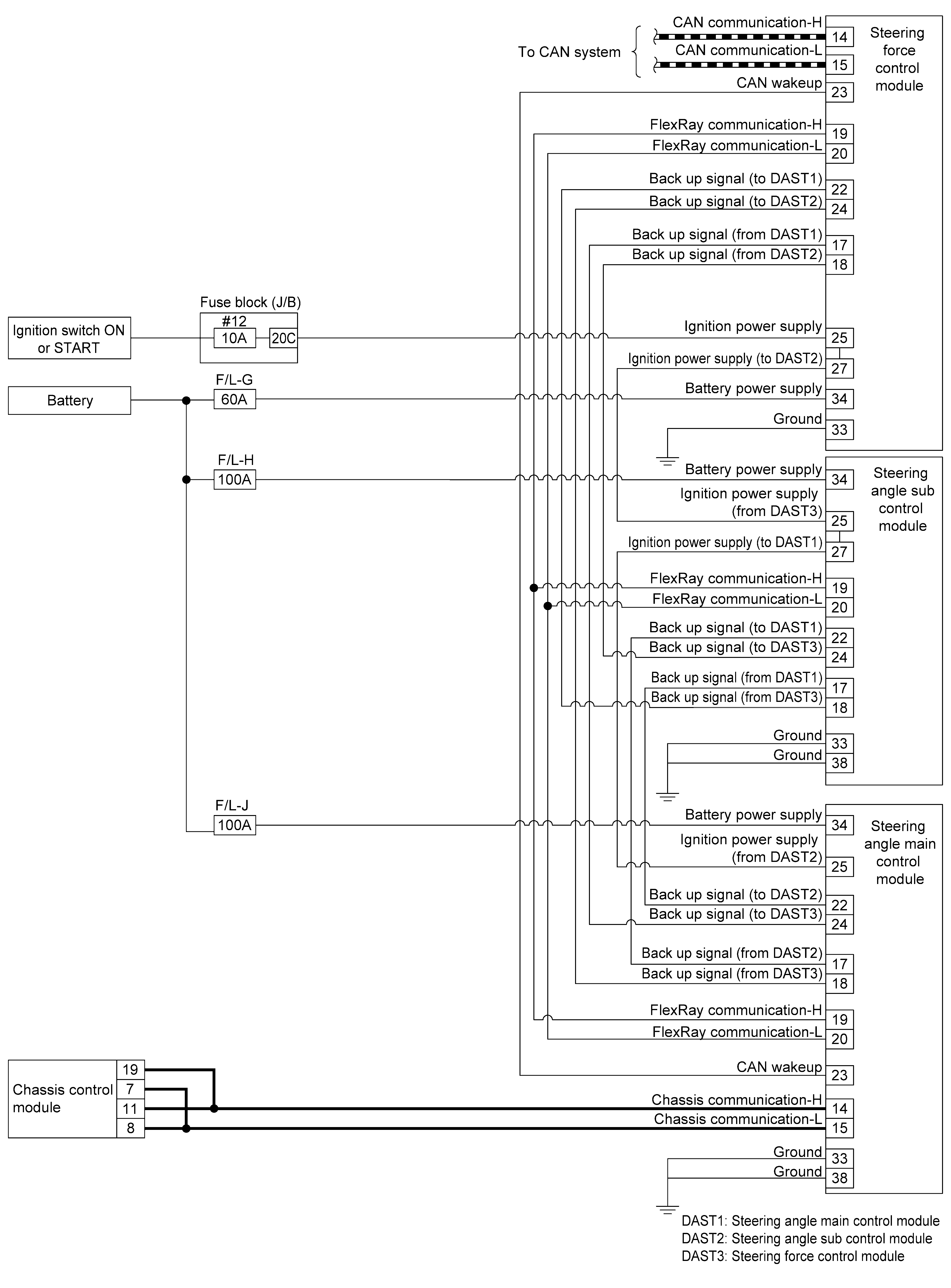

GNSJSGIA2296GB-296Courtesy of NISSAN NORTH AMERICA, INC.

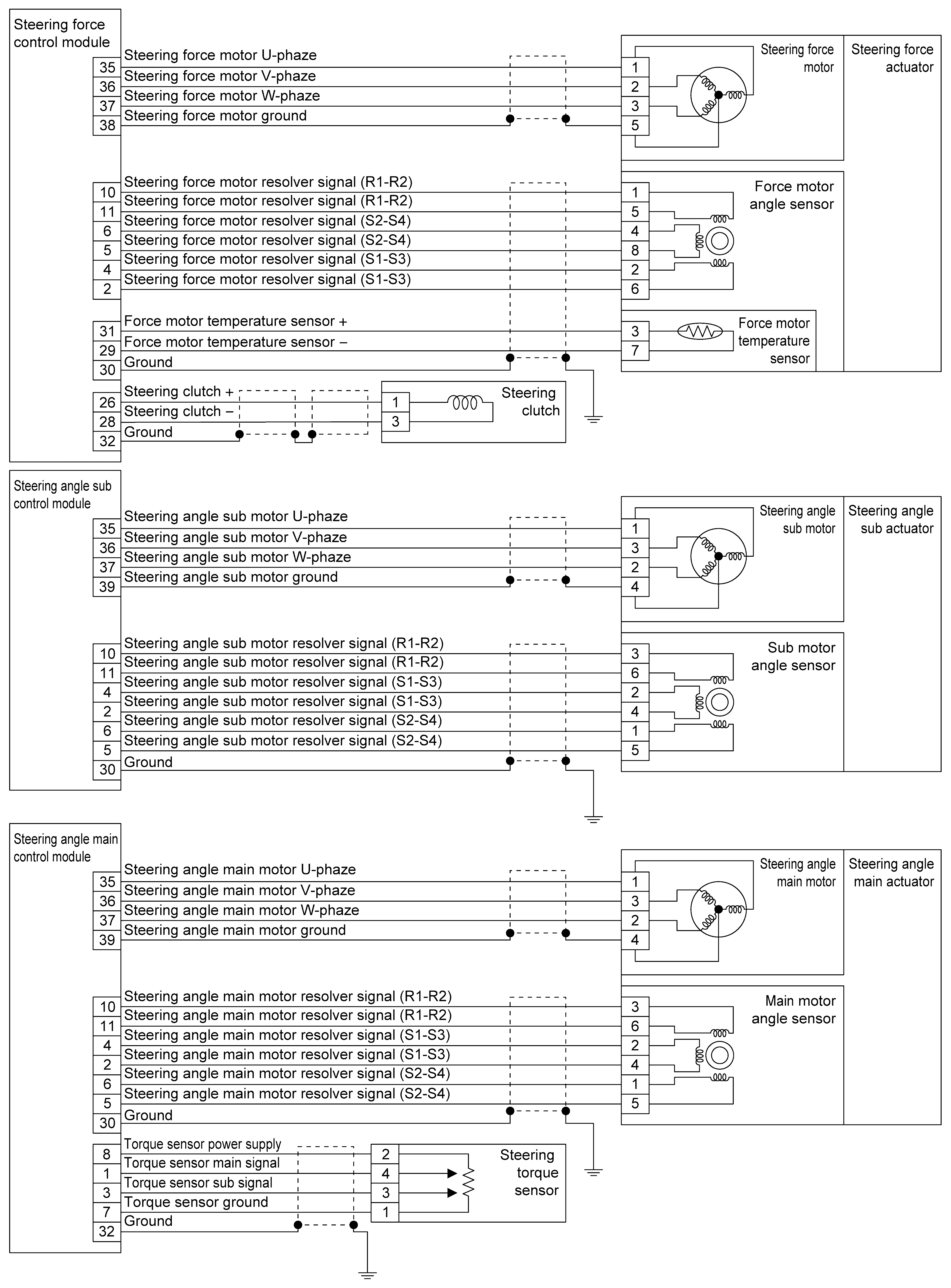

GNSJSGIA2297GB-297Courtesy of NISSAN NORTH AMERICA, INC.

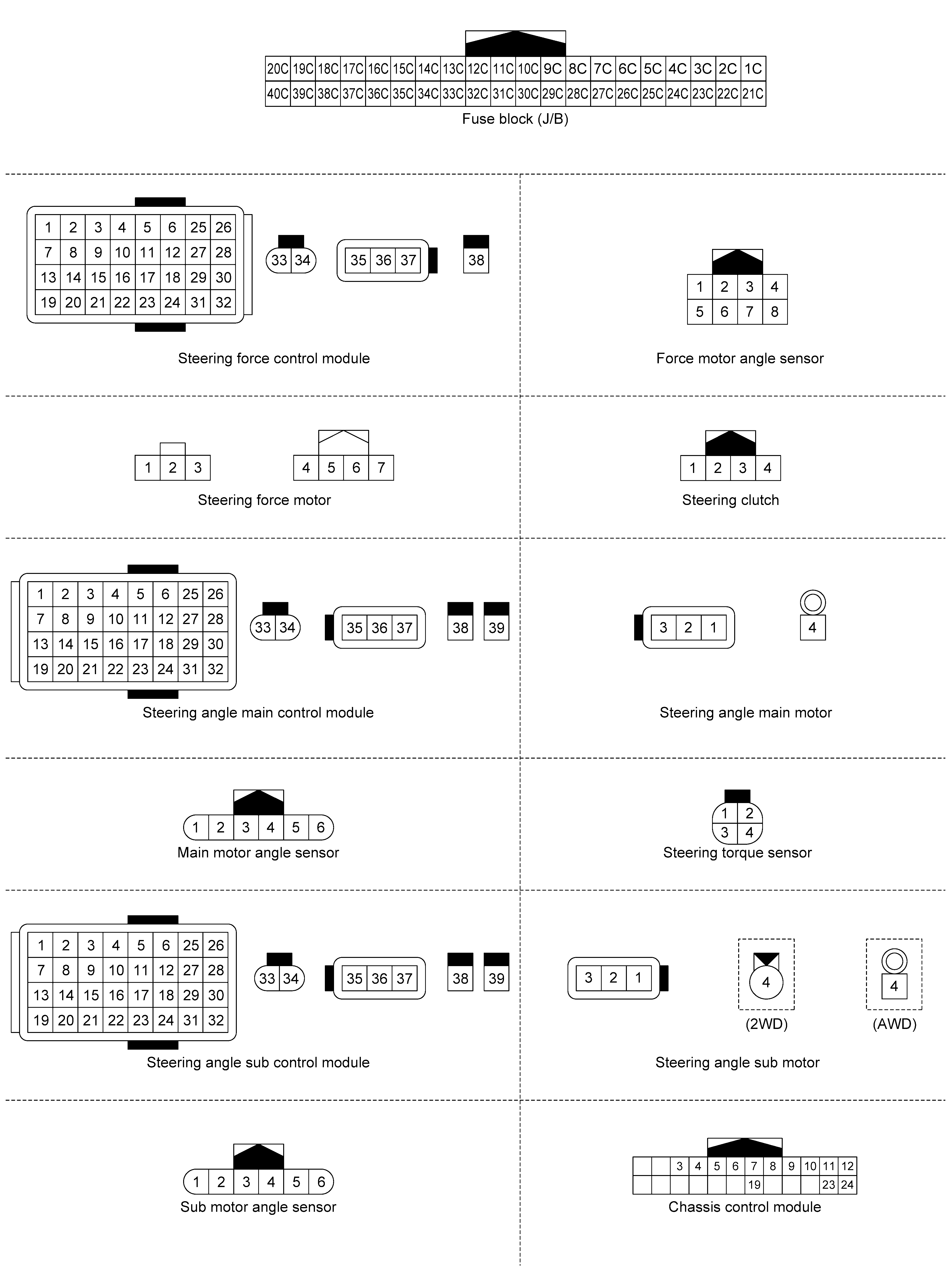

GNSJSGIA2298GB-298Courtesy of NISSAN NORTH AMERICA, INC.
